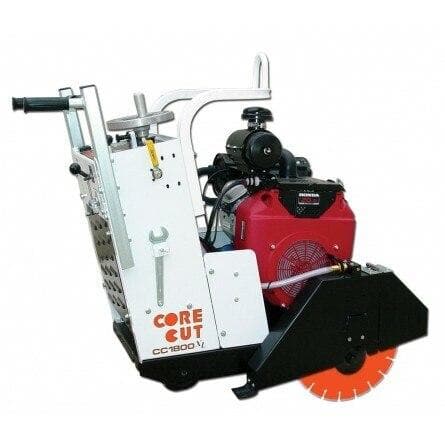

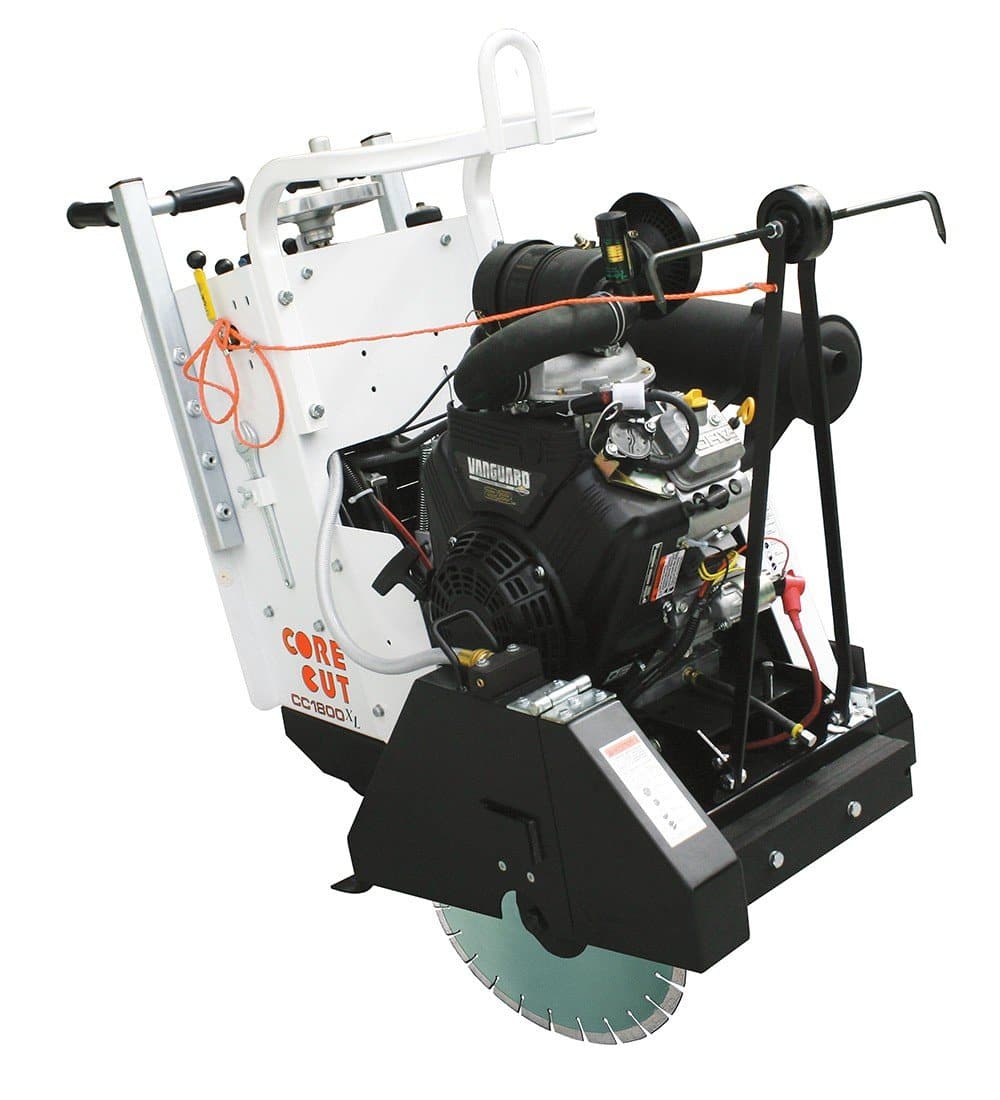

CC1800XL Medium Walk Behind Concrete Saw - Heavy Duty Construction Equipment for Cutting Asphalt, Pavement & Concrete - Perfect for Road Repair, Demolition & Landscaping Projects
$4868.77 $8852.32
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:11360935
Guranteed safe checkout
Product Description
CC1800XL Medium Walk Behind Saw with a 14 and 20 Inch Blade Capacity / Gasoline / Electric / Hydraulic / Propane
Many Power Options to Fit Your Application.
14" - 20" Blade Capacity
14 - 20 Inch Blade Capacity / Gasoline / Electric / Hydraulic / Propane
Features & Benefits:
- Electric start option on Honda and Briggs Vanguard models
- Pull start backup on Briggs Vanguard models
- Push or self propelled drive
- Easy access to battery with heavy duty isolator switch to prevent battery drain
- Screw feed raise and lower
- Left or right side sawing
- Lifting hook standard on all models
- Self aligning blade shaft bearings
Specifications:
| Maximum depth of cut with 14” blade: | 4-5/8” |
| Maximum depth of cut with 18” blade: | 6-5/8” |
| Maximum depth of cut with 20” blade: | 7-5/8” |
| Blade shaft RPM: | 2,600 |
| Blade shaft diameter: | 1-1/4” |
| Arbor Size: | 1” w/drive pin |
| Blade shaft drive: | 3 belt for 11.7HP, |
| Blade mounting: | Right or Left |
| Transmission (self propelled): | Eaton Model 6 |
| Drive Speed: | 0-80 feet/min |
| Fuel Capacity (gas models): | 2 gallons |
| Electric Start (18-23 HP model): | Standard |
| Low Oil Alert: | Standard |
| Tach/Hour Meter (18-23 HP models): | Standard |
| Blade Capacity | Power Source | Engine/Motor Make | Engine/Motor Model | Motor/Engine Power | Electric Start | Push or Self Propelled | Part Number | Catalog Number |
|---|---|---|---|---|---|---|---|---|
| 14" | Electric | Baldor | N/A | 7.5 HP, Single Phase, 230 volt | N/A | Push | 5800628 | 54480 |
| 14" | Electric | Baldor | N/A | 10 HP, Three Phase, 230 volt | N/A | Push | 5800692A | 54485 |
| 14" | Electric | Baldor | N/A | 10 HP, Three Phase, 460 volt | N/A | Push | 5800692B | 54565 |
| 14" | Electric | Baldor | N/A | 10 HP, Three Phase, 575 volt | N/A | Push | 5800692C | 54568 |
| 14" | Gas | Honda | GX390 | 11.7 HP, 19.5 torque (lbs.-ft.) | No | Push | 5800694 | 54486 |
| 14" | Gas | Honda | GX390 | 11.7 HP, 19.5 torque (lbs.-ft.) | Yes | Push | 5802258 | 27946 |
| 14" | Gas | Briggs & Stratton | Vanguard 2100 Series | 420cc, 21 torque (lbs.-ft.) | No | Push | 5801114 | 61230 |
| 14" | Gas | Briggs & Stratton | Vanguard | 16 HP | No | Push | 5800696 | 54487 |
| 14" | Hydraulic | Danfoss | 1.16 CI | 15 GPM | No | Push | 5800698A | 54489 |
| 14" | Hydraulic | Danfoss | 1.55 CI | 20 GPM | No | Push | 5800698B | 54571 |
| 14" | Hydraulic | Danfoss | 1.94 CI | 25 GPM | No | Push | 5800698C | 54579 |
| 20" | Electric | Baldor | N/A | 7.5 HP, Single Phase, 230 volt | N/A | Push | 5800629 | 54490 |
| 20" | Electric | Baldor | N/A | 10 HP, Three Phase, 230 volt | N/A | Push | 5800693A | 54497 |
| 20" | Electric | Baldor | N/A | 10 HP, Three Phase, 460 volt | N/A | Push | 5800693B | 54580 |
| 20" | Electric | Baldor | N/A | 10 HP, Three Phase, 575 volt | N/A | Push | 5800693C | 54581 |
| 20" | Gas | Honda | GX390 | 11.7 HP, 19.5 torque (lbs.-ft.) | No | Push | 5800695 | 54498 |
| 20" | Gas | Honda | GX390 | 11.7 HP, 19.5 torque (lbs.-ft.) | Yes | Push | 5802259 | 17244 |
| 20" | Gas | Briggs & Stratton | Vanguard 2100 Series | 420cc, 21 torque (lbs.-ft.) | No | Push | 5801115 | 61234 |
| 20" | Gas | Briggs & Stratton | Vanguard | 16 HP | No | Push | 5800697 | 54505 |
| 20" | Hydraulic | Danfoss | 1.16 CI | 15 GPM | No | Push | 5800699A | 54506 |
| 20" | Hydraulic | Danfoss | 1.55 CI | 20 GPM | No | Push | 5800699B | 54582 |
| 20" | Hydraulic | Danfoss | 1.94 CI | 25 GPM | No | Push | 5800699C | 54593 |
| 14" | Electric | Baldor | N/A | 7.5 HP, Single Phase, 230 volt | N/A | Self Propelled | 5800736 | 54507 |
| 14" | Electric | Baldor | N/A | 10 HP, Three Phase, 230 volt | N/A | Self Propelled | 5800738A | 54508 |
| 14" | Electric | Baldor | N/A | 10 HP, Three Phase, 460 volt | N/A | Self Propelled | 5800738B | 54596 |
| 14" | Electric | Baldor | N/A | 10 HP, Three Phase, 575 volt | N/A | Self Propelled | 5800738C | 54597 |
| 14" | Gas | Honda | GX390 | 11.7 HP, 19.5 torque (lbs.-ft.) | No | Self Propelled | 5800643 | 54536 |
| 14" | Gas | Honda | GX390 | 11.7 HP, 19.5 torque (lbs.-ft.) | Yes | Self Propelled | 5802260 | 27947 |
| 14" | Gas | Briggs & Stratton | Vanguard 2100 Series | 420cc, 21 torque (lbs.-ft.) | No | Self Propelled | 5801112 | 61225 |
| 14" | Gas | Briggs & Stratton | Vanguard | 16 HP | No | Self Propelled | 5800645 | 54537 |
| 14" | Hydraulic | Danfoss | 1.16 CI | 15 GPM | No | Self Propelled | ||
| 14" | Hydraulic | Danfoss | 1.55 CI | 20 GPM | No | Self Propelled | 5800647B | 54598 |
| 14" | Hydraulic | Danfoss | 1.94 CI | 25 GPM | No | Self Propelled | 5800647C | 54599 |
| 14" | Gas | Honda | GX630 | 20.8 HP, 35.6 torque (lbs.-ft.) | Yes | Self Propelled | 5800667 | 51234 |
| 14" | Gas | Briggs & Stratton | Vanguard | 23 HP | Yes | Self Propelled | 5801218 | 22269 |
| 20" | Electric | Baldor | N/A | 7.5 HP, Single Phase, 230 volt | N/A | Self Propelled | 5800737 | 54539 |
