High-Quality Augers for Skid Steer Loaders (1-2.5T) & Mini Excavators (0.75-3T) - Perfect for Landscaping, Fence Post Installation, and Tree Planting
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:11597237
Product Description

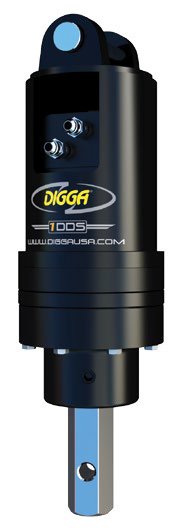

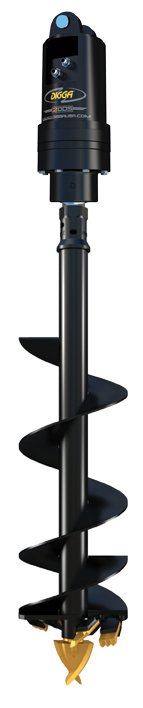

Digga's drilling augers for 1 - 2.5 ton skid steer loaders and 0.75 ton to 3 ton mini excavators are the ultimate in performance, quality and cost effectiveness.
Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.
Fitted with Digga / Eaton bell motors and input housing (auger drive for Skid Steer) or with optional pressure relief valve (auger drive for Mini Excavator), the innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions, eliminating downtime and minimizes maintenance, optimizing your returns.
Digga drilling augers are backed by industry leading warranty and local factory support.
Features:
- Compact Digga manufactured gearbox
- Digga designed Eaton motor with optional integrated pressure relief valve to eliminate the need for bulky valve blocks and reduce many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gearbox and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
| Specifications | 1DSS | 2DSS |
|---|---|---|
| Torque (ft-lbs @ 3000 PSI) | 1,467 | 2,254 |
| Max Torque (ft-lbs @ 3500 PSI) | 1,712 | 2,630 |
| Recommended Flow (GPM) | 6-16 | 10-26 |
| Motor Type | Eaton | Eaton |
| Max Pressure - Do Not Exceed | 3500 PSI @ 16 GPM | |
| Max Flow - Do Not Exceed | 30 GPM @ 1800 PSI | |
| Max Horse Power | 33 | 33 |
| Pressure Relief Valve | N/A | N/A |
| Standard Output Shaft | 2" Hex | 2" Hex |
| Halo | Optional | Optional |
| Recommended Auger | / | / |
| Max Drilling Diameter (Clay / Shale)¹ | 12" | 24" |
| Max Drilling Diameter (Earth)¹ | 24" | 30" |
| Weight (lbs.) | 101 | 123 |
| Overall Length (in.) | 24.5" | 25.9" |
| Diameter (in.) | 7.4" | 9.4" |
¹Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
| 1DSS | 2DSS | ||||||
|---|---|---|---|---|---|---|---|
| OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | ||||
| GPM | RPM | PSI | FT-LBS | GPM | RPM | PSI | FT-LBS |
| 6 | 38 | 1,500 | 734 | 10 | 41 | 1,500 | 1,127 |
| 8 | 50 | 1,700 | 832 | 12 | 49 | 1,700 | 1,277 |
| 10 | 63 | 1,900 | 929 | 14 | 57 | 1,900 | 1,428 |
| 12 | 75 | 2,100 | 1,027 | 16 | 65 | 2,100 | 1,578 |
| 14 | 88 | 2,300 | 1,125 | 18 | 73 | 2,300 | 1,728 |
| 16 | 100 | 2,500 | 1,223 | 20 | 82 | 2,500 | 1,878 |
| 2,700 | 1,321 | 22 | 90 | 2,700 | 2,029 | ||
| 2,900 | 1,418 | 24 | 98 | 2,900 | 2,179 | ||
| 3,100 | 1,516 | 26 | 106 | 3,100 | 2,329 | ||
| 3,300 | 1,614 | 3,300 | 2,479 | ||||
| 3,500 | 1,712 | 3,500 | 2,630 | ||||
