Product Description
TECTUS® TE 340 3D Concealed Hinge
TECTUS enables the optimal integration of flush doors in a straight line and flush surfaces for contemporary clean designs.

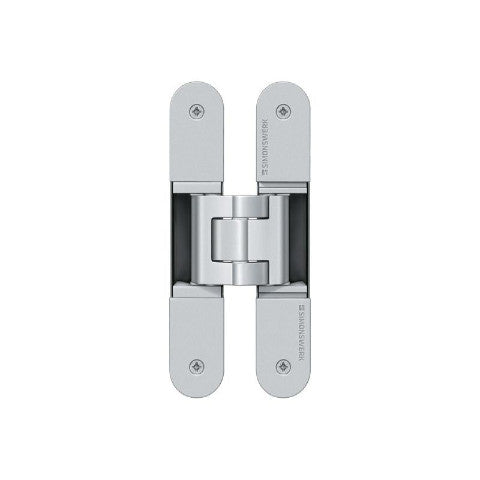

The SIMONSWERK TECTUS TE 340 3D concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.
ALWAYS REMEMBER an by Athmer for your door to keep out odors and noise!
The three-dimensional adjustability and maintenance-free slide bearing technology of the TE340 3D hinge system is for use with high-quality commercial and residential doors.
3 hinges are recommended for doors above 8ft tall.
Features
- For flush residential and commercial doors

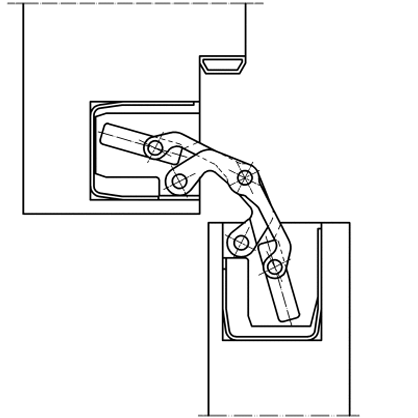

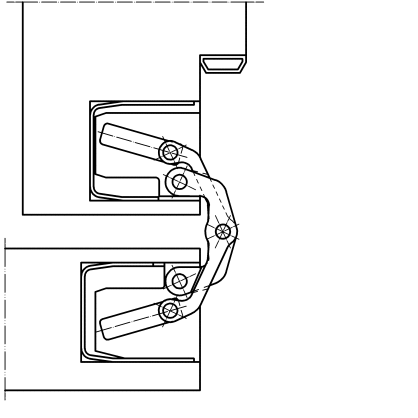

- 180° opening angle without pinching or damage during opening and closing
- For doors up to 176 lbs with 2 hinges installed
- EASILY adjustable in 3-Dimensions
- Maintenance-free slide bearings

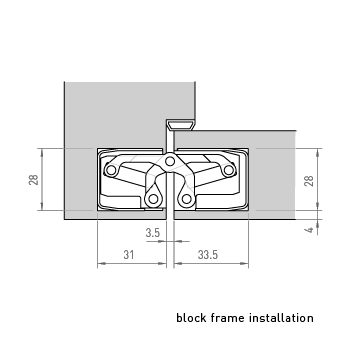

- For wood, metal, or casing frame installation

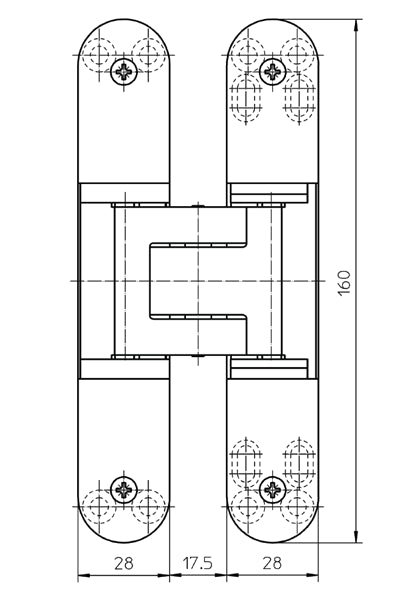

Specifications
- Minimum door thickness: 1-1/2" (38mm)
Height: 6.3" [160mm]
Width: Frame & Leaf: 1.1" [28mm]
Depth: Frame: 1.22" [31mm] & Leaf: 1.32" [33.5mm]
Lead Time
We strive to keep a healthy inventory of this model, please call to check on current stock levels if you require this product quickly. Standard lead time is approximately 2-3 weeks.
Special Order Finishes
Expect additional lead time of 4-8 weeks for: Bronze, Light Bronze, Dark Bronze.
**The following finishes are non-cancellable and non-returnable: Satin Brass, Polished Chrome, Polished Brass and Specialized Bronze Finishes. Please review the details to ensure you are ordering the correct hardware.
More Information
*Need Installation Tools? These hinges can be installed using metric or Imperial tooling. Since the metric tooling is harder to find, we sell metric , . Imperial tooling is readily available in the US.
DO NOT USE METRIC BITS AND SHANKS WITH IMPERIAL TEMPLATES!!!
Metric and imperial templates: routing templates
*UL Listed: 20 minutes
Available with power and data transfer, see
For a thorough step-by-step installation of these hinges, check out this article on This Is Carpentry :

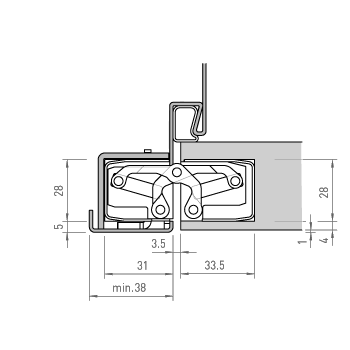

- For TE 340 3D installation in steel frames you will need:

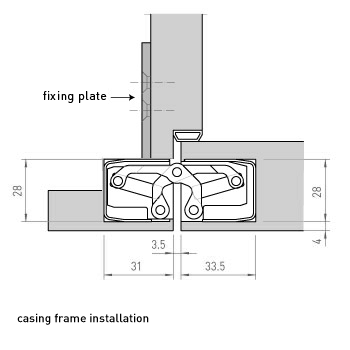

One (1) Receiver per hinge - For TE 340 3D installation in casing frames you will need:One (1) Fixing Plate per hinge
