CC7574DKV Walk Behind Concrete Saw - Heavy Duty Gas Powered In-Line Saw for Cutting Concrete, Asphalt & Masonry - Ideal for Construction, Road Repair & DIY Projects
$34107.86 $62014.3
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:17698339
Guranteed safe checkout
Product Description

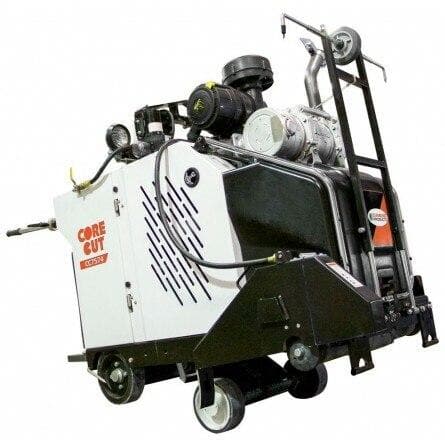

CC7574DKV In-Line Walk Behind Saw
In-Line Walk Behind Saw with Increased Production, lower Maintenance Costs and Better Fuel Efficiency.
20"- 48" Blade Capacity
Features & Benefits:
- Stage 5 Kubota® diesel engine
- Self-propelled Eaton Model 10 transmission
- Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only)
- Strongest frame on the market
- Hydraulic wheel motor drive
- Blade shaft gearbox-oil bath for low maintenance
- High pressure common rail electronic fuel injection.
- Modern computer interface engine controls
- 20”-48” Blade Capacity
Specifications:
| Maximum depth of cut with 20” blade: | 7-1/4” (5” flange) |
| Maximum depth of cut with 26” blade: | 10-1/4” (5” flange) |
| Maximum depth of cut with 30” blade: | 12-1/4” (5” flange) |
| Maximum depth of cut with 36” blade: | 14-3/4” (6” flange) |
| Maximum depth of cut with 42” blade: | 17-1/4” (7” flange) |
| Maximum depth of cut with 48” blade: | 19-3/4” (8” flange) |
| Engine: | Kubota® Turbo Diesel |
| Engine Specs: | 4 Cylinder, 3.3 Liter |
| Max Engine Power: | 74.5HP at 2,600 RPM |
| Power at the Blade Shaft: | 70 Horsepower |
| Emission Regulation: | EPA Stage 5 Compliant |
| Blade shaft diameter: | 2” |
| Arbor size: | 1” w/drive pin |
| Blade shaft bearings: | Multiple ball bearings in oil bath |
| Blade shaft drive: | 20 V-belts-4 power bands |
| Blade mounting: | Right or Left |
| Blade raise & lower: | Electro-hydraulic pump |
| Blade Coolant: | Dual multi-spray tubes |
| Drive speed: | 0-250 feet/min forward and reverse |
| Transmission: | Hydro pump powering dual wheel motors |
| Air filter: | 4 stage w/restriction indicator |
| Fuel capacity: | 9 gallons |
| Blade Capacity | Sawing Power Source | Sawing Engine/Motor Make | Motor/Engine Power | Speeds | Part Number | Catalog Number |
|---|---|---|---|---|---|---|
| 20" | Diesel | Kubota® Turbo | 74 HP | Single Speed | 5801460 | 106338 |
| 26” | Diesel | Kubota® Turbo | 74 HP | Single Speed | 5801461 | 106339 |
| 30” | Diesel | Kubota® Turbo | 74 HP | Single Speed | 5801462 | 106340 |
| 36” | Diesel | Kubota® Turbo | 74 HP | Single Speed | 5801463 | 106341 |
| 42” | Diesel | Kubota® Turbo | 74 HP | Single Speed | 5801464 | 106342 |
| 48” | Diesel | Kubota® Turbo | 74 HP | Single Speed | 5801465 | 106343 |
| 20" | Diesel | Kubota® Turbo w/Clutch | 74 HP | Single w/clutch | 5801466 | 106344 |
| 26” | Diesel | Kubota® Turbo w/Clutch | 74 HP | Single w/clutch | 5801467 | 106345 |
| 30” | Diesel | Kubota® Turbo w/Clutch | 74 HP | Single w/clutch | 5801468 | 106346 |
| 36” | Diesel | Kubota® Turbo w/Clutch | 74 HP | Single w/clutch | 5801469 | 106347 |
| 42” | Diesel | Kubota® Turbo w/Clutch | 74 HP | Single w/clutch | 5801470 | 106348 |
| 48” | Diesel | Kubota® Turbo w/Clutch | 74 HP | Single w/clutch | 5801471 | 106349 |
| 30” | Diesel | Kubota® Turbo | 74 HP | 3-Speed (20”/26”/30”) | 5801472 | 106350 |
| 36” | Diesel | Kubota® Turbo | 74 HP | 3-Speed (20”/30”/36”) | 5801473 | 106351 |
| 42” | Diesel | Kubota® Turbo | 74 HP | 3-Speed (26”/36”/42”) | 5801474 | 106352 |
| 48” | Diesel | Kubota® Turbo | 74 HP | 3-Speed (30”/42”/48”) | 5801475 | 106353 |
