Architectural Access Door with 1 Flange - Durable & Secure for HVAC, Plumbing & Electrical Systems | Perfect for Commercial & Residential Buildings
$14.81 $26.93
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:28 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:20254092
Guranteed safe checkout
Product Description

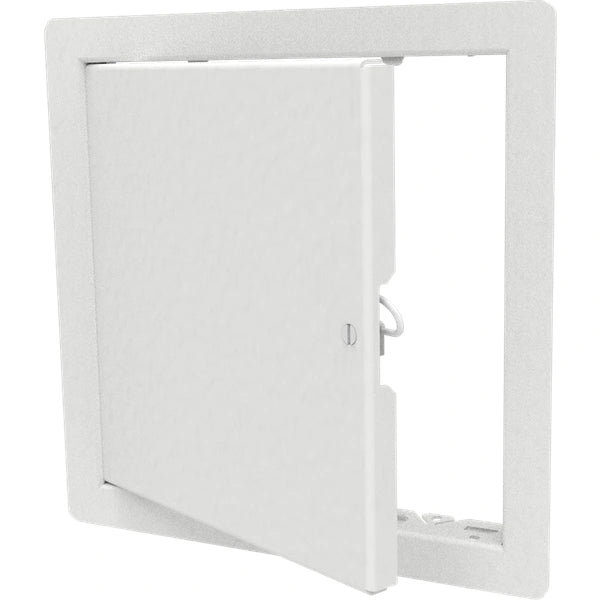

The Babcock-Davis Architectural Access Door is designed with the architect in mind.
Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.
Features
- Anti-flex frame
- Removable and repositionable door
- Painless installation
- Optional stainless steel
- Double door available
- Optional Louvers
Specifications
| Model | BNT/BNW/BNP |
| Door |
|
| Frame | 16 gauge Steel or 16 gauge Type 304 Stainless Steel |
| Size | Single Door
|
| Installation | Wall or Ceiling |
| Flange | 1 inch exposed, Drywall Bead or Plaster Bead |
| Hinge | Concealed spring button or Flush continuous piano |
| Pan Depth | 1/2 inch |
| Latch | Screwdriver Cam Latch, Key Operated Cam Latch, or Mortise Lock (1-1/8 inch) Prep |
| Finish | White Powder Coat (steel) or #4 Satin (stainless steel) |
| Warranty | 1 year |
Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
| BASE | FLANGE | LATCH | WIDTH | X | LENGTH | OPTIONS |
|---|---|---|---|---|---|---|
BN | X | |||||
| T - 1 inch Flange W - Drywall Bead P - Plaster Bead | C - Screwdriver Cam Latch L - Key Operated Cam Latch M - Mortise Lock Prep (1-1/8") | Standard Sizes (in.) 6 x 6 20 x 30 8 x 8 22 x 22 10 x 10 22 x 30 12 x 12 24 x 24 12 x 18 24 x 30 12 x 24 24 x 36 14 x 14 24 x 48 16 x 16 30 x 30 16 x 20 30 x 36 18 x 18 32 x 32 18 x 24 36 x 36 | B - Galvannealed F14 - 14 gauge frame & door L - Louvered Door S - Type 304 Stainless Steel D14 - 14 gauge door D - Double door | |||
Rough opening is door size + 1/4 inch
Additional sizes available, call for more information.
Lead Time Average is 1-10 Days. Delivery time is additional.
