Product Description

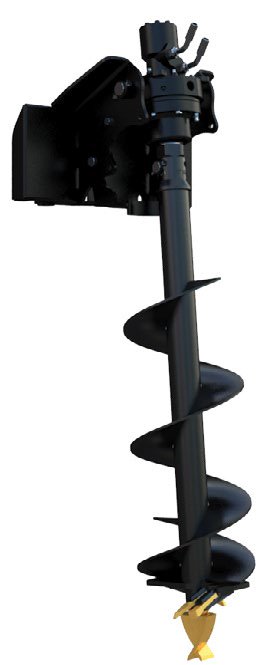

Digga's range of drilling augers for 0.85 ton to 1 ton Mini Loaders are the ultimate in performance, quality and cost effectiveness.
Mounting Plate is specific to make and model of Mini Loader. Please call to specify what machine the mount is attaching to.
Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest-grade materials and strictest quality control.
Digga drilling augers are backed by industry leading warranty and local factory support.
Features:
- Compact Digga manufactured gearbox
- Fitted with a Digga designed Eaton motor
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shafts pull out warranty
- 5-year gearbox and 3-year motor warranty
- Over 30 years design and manufacturing experience
| Specifications | 1MDS |
|---|---|
| Torque (ft.-lbs. @ 3000 PSI) | 2,119 |
| Max Torque (ft.-lbs. @ 3500 PSI) | N/A |
| Recommended Flow (GPM) | 6-16 |
| Motor Type | Eaton |
| Max Pressure (Do Not Exceed) | 3000 PSI @ 11 GPM |
| Max Flow (Do Not Exceed) | 15 GPM @ 2300 PSI |
| Max Horsepower | 20 |
| Pressure Relief Valve | Optional |
| Standard Output Shaft | 2" Hex |
| Halo | Optional |
| Recommended Auger | / |
| Max Drilling Diameter (Clay / Shale) ¹ | 12" |
| Max Drilling Diameter (Earth)¹ | 24" |
| Weight (lbs.) | 72 |
| Overall Length (in.) | 16.6" |
| Diameter (in.) | 8" |
¹Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
| 1MDS | |||
|---|---|---|---|
| OUTPUT SPEED | OUTPUT TORQUE | ||
| GPM | RPM | PSI | FT-LBS |
| 6 | 26 | 1,500 | 1,060 |
| 8 | 35 | 1,700 | 1,201 |
| 10 | 43 | 1,900 | 1,342 |
| 12 | 52 | 2,100 | 1,484 |
| 14 | 61 | 2,300 | 1,625 |
| 16 | 69 | 2,500 | 1,766 |
| 2,700 | 1,907 | ||
| 2,900 | 2,049 | ||
| 3,100 | 2,190 | ||
| 3,300 | 2,331 | ||
| 3,500 | 2,473 | ||
