Caterpillar 800 Expert Diamond Blades for Cutting Abrasive Materials - Free Shipping - Perfect for Concrete, Tile, and Masonry Work
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:22190780
Product Description

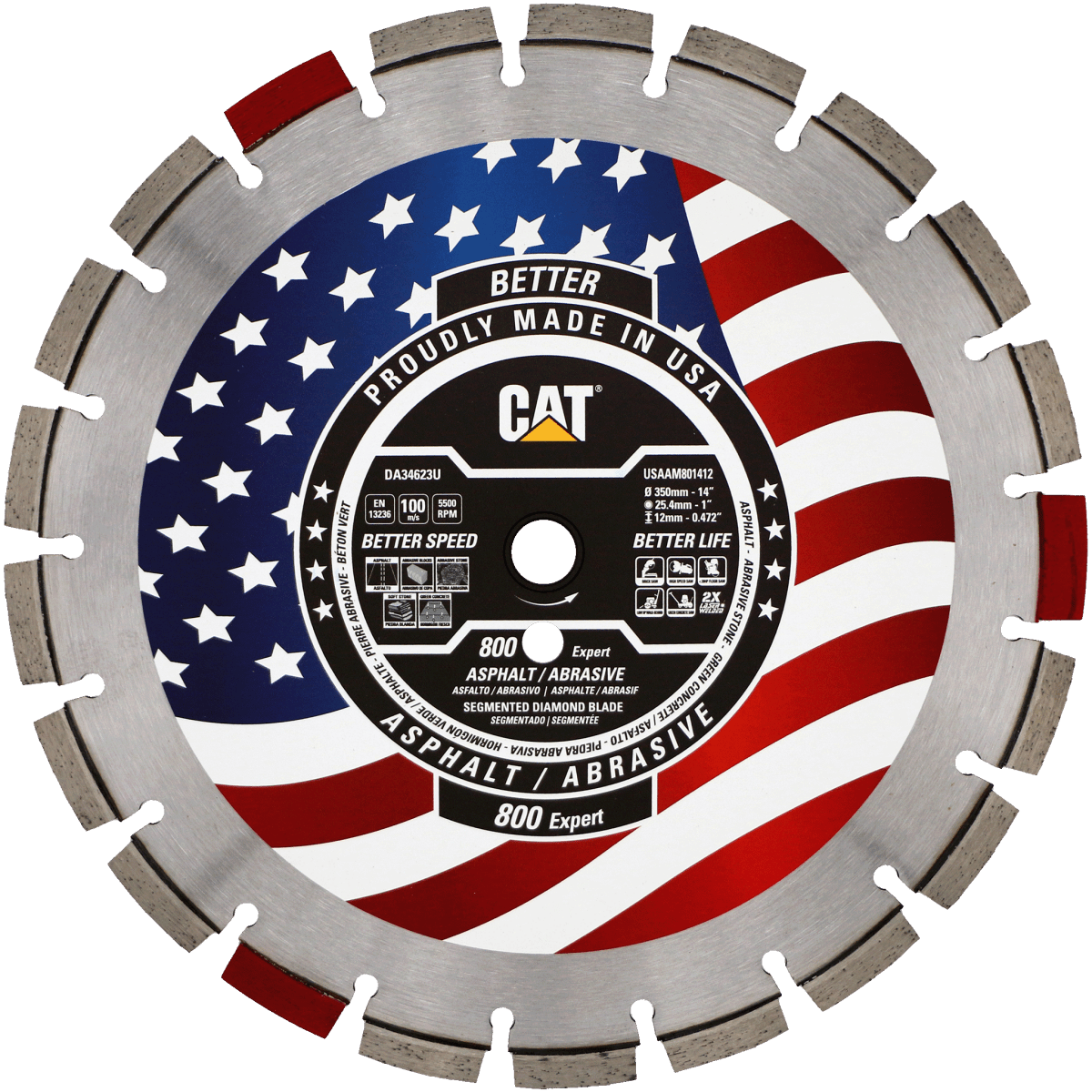

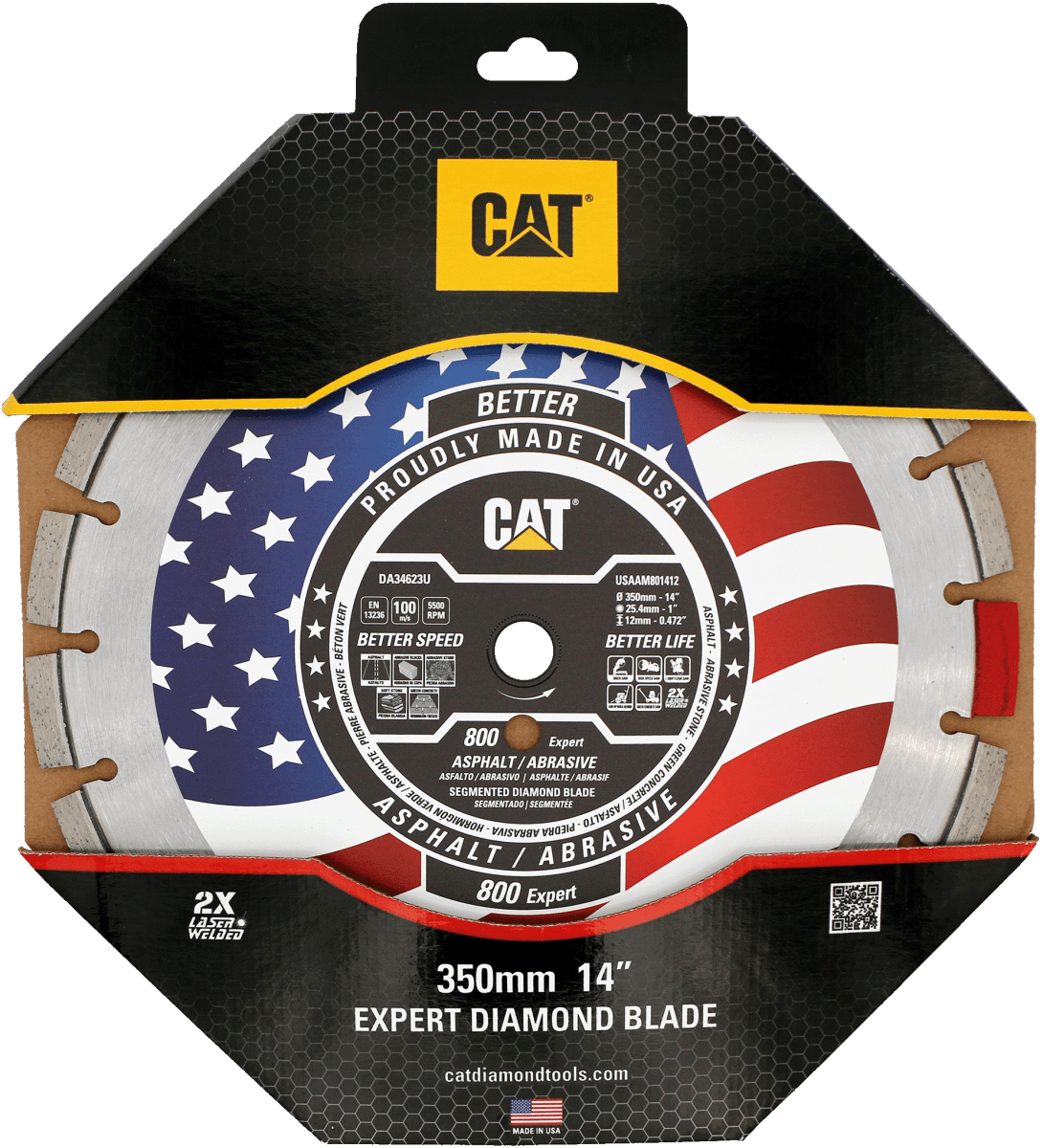

Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials.
Cat® Asphalt / Abrasive blades are designed for intensive use across the 3 performance grades: Good, Better and Best. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.
ATTRIBUTES
- Very High Diamond Concentration & Diamond Quality

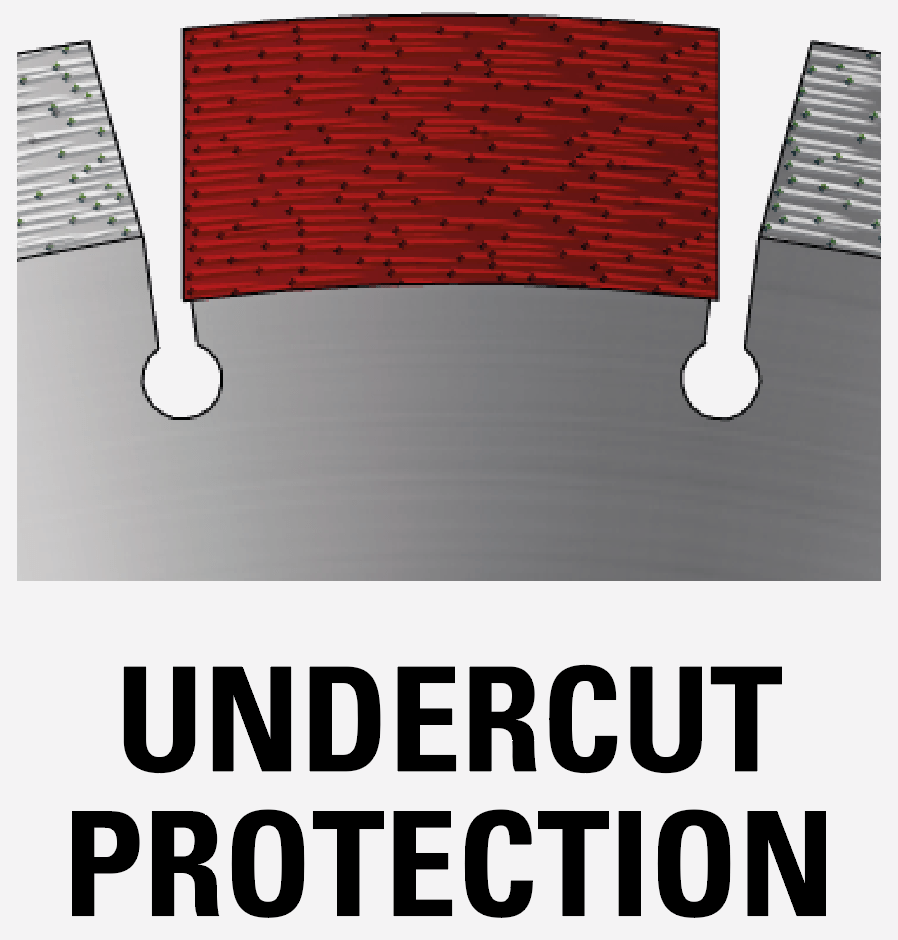

- Undercut Protection Segments To Clear Debris
- Fully Hardened & Heat Treated Steel Core
- Very Long Life, Good Speed Of Cut, Widest Application Span
- Superior Diamond Quality & Bond Formulation
- 2X Laser Welded For Safety & Stability Of Segments
- Keyhole Gullet Design For Dust Extraction From Cut.
APPLICATION
Asphalt, Concrete Block Under 15N/Mm², Thermal Block 7 N/Mm², Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate.
Lignacite Blocks, Lava Rock, Pumice.
Asphalt Over Concrete.
Soft Facing Bricks.
Key
Correct Bond For Application Optimal Performance, Speed & Life
Good Match Bond For Application Excellent Performance Speed & Life
Acceptable Bond For Application Reduced Performance, Speed & Life
Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur
| PRODUCT TYPE | DIAMETER | SEGMENT HEIGHT | SEGMENT WIDTH | MAIN ARBOR - BORE | REDUCING RINGS INCLUDED | MACHINES USED | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO | CODE NO | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | |
| DA34622U | USAAM801212 | 300 | 12 | 12 | 0.472 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |       |
| DA34623U | USAAM801412 | 350 | 14 | 12 | 0.472 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA34624U | USAAM801612 | 400 | 16 | 12 | 0.472 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA34625U | USAAM801812 | 450 | 18 | 12 | 0.472 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
Available in USA, non-oSa accredited.
