SKU:22335019

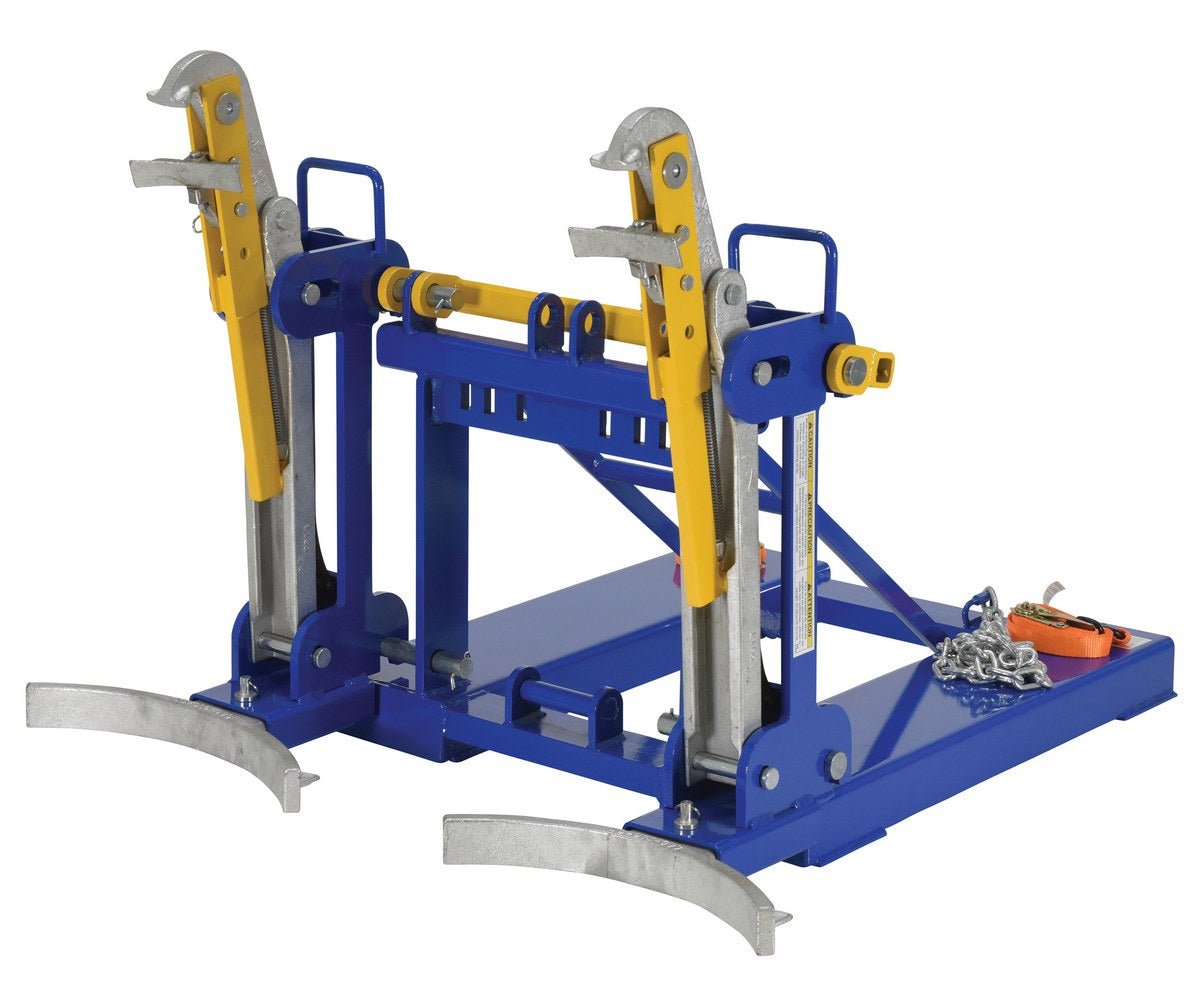

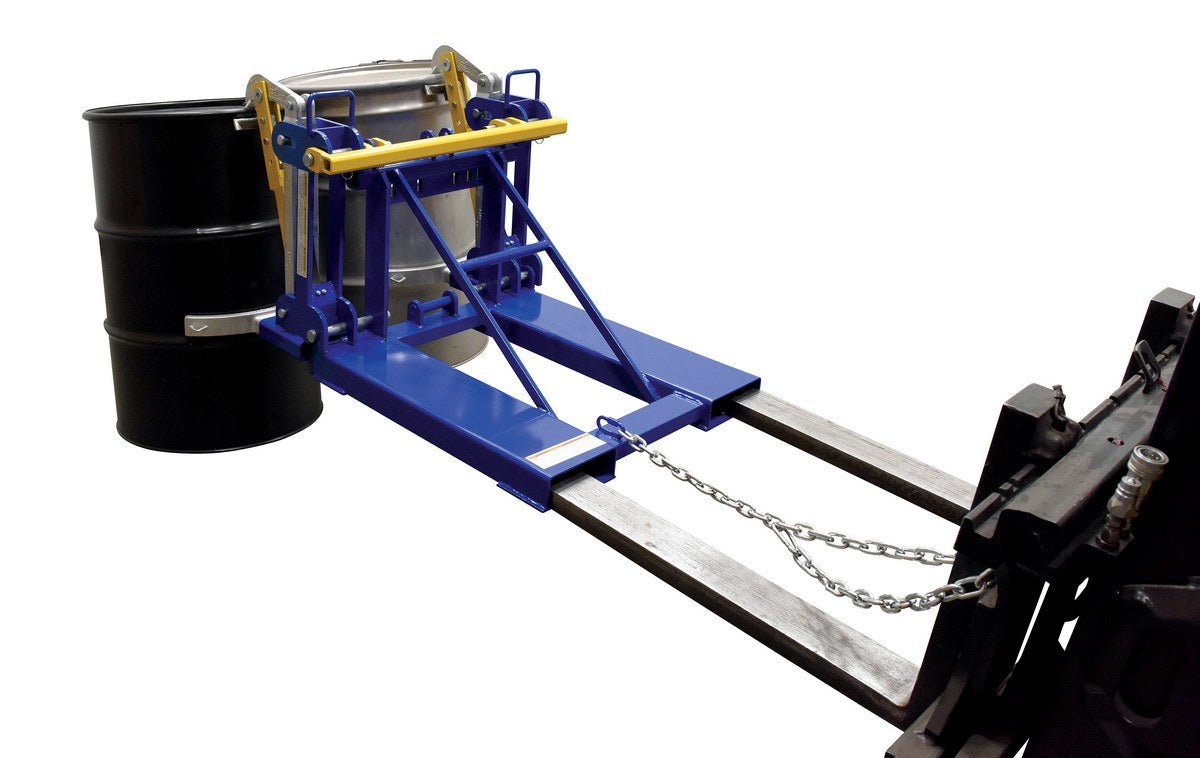

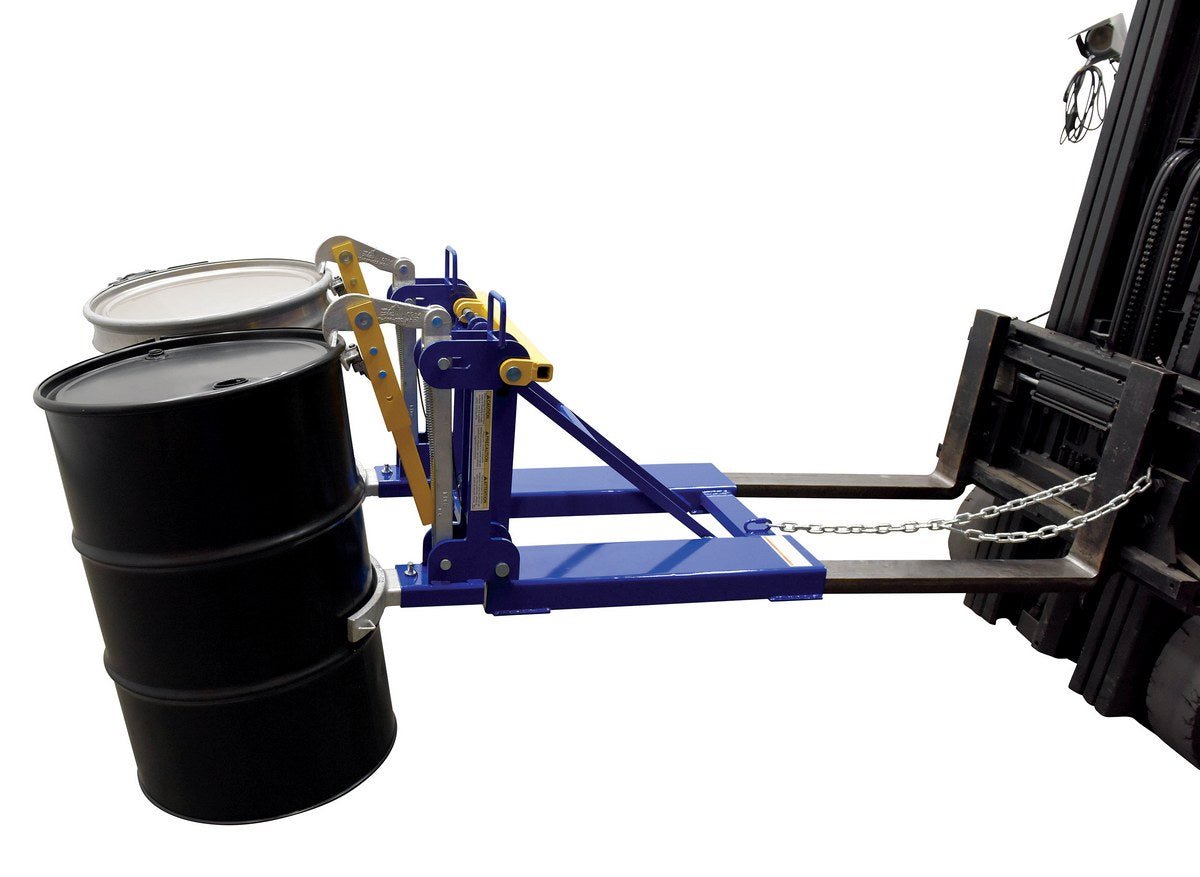

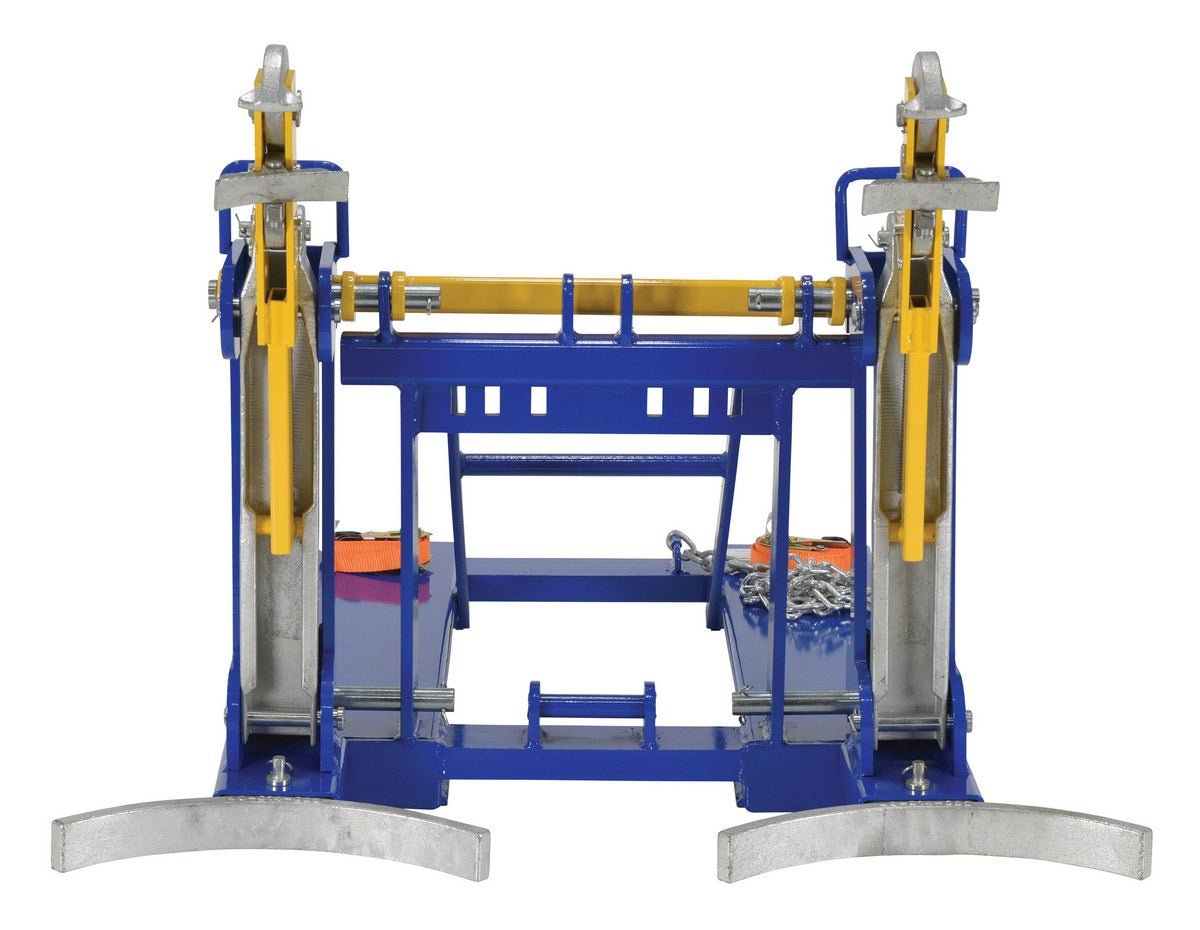

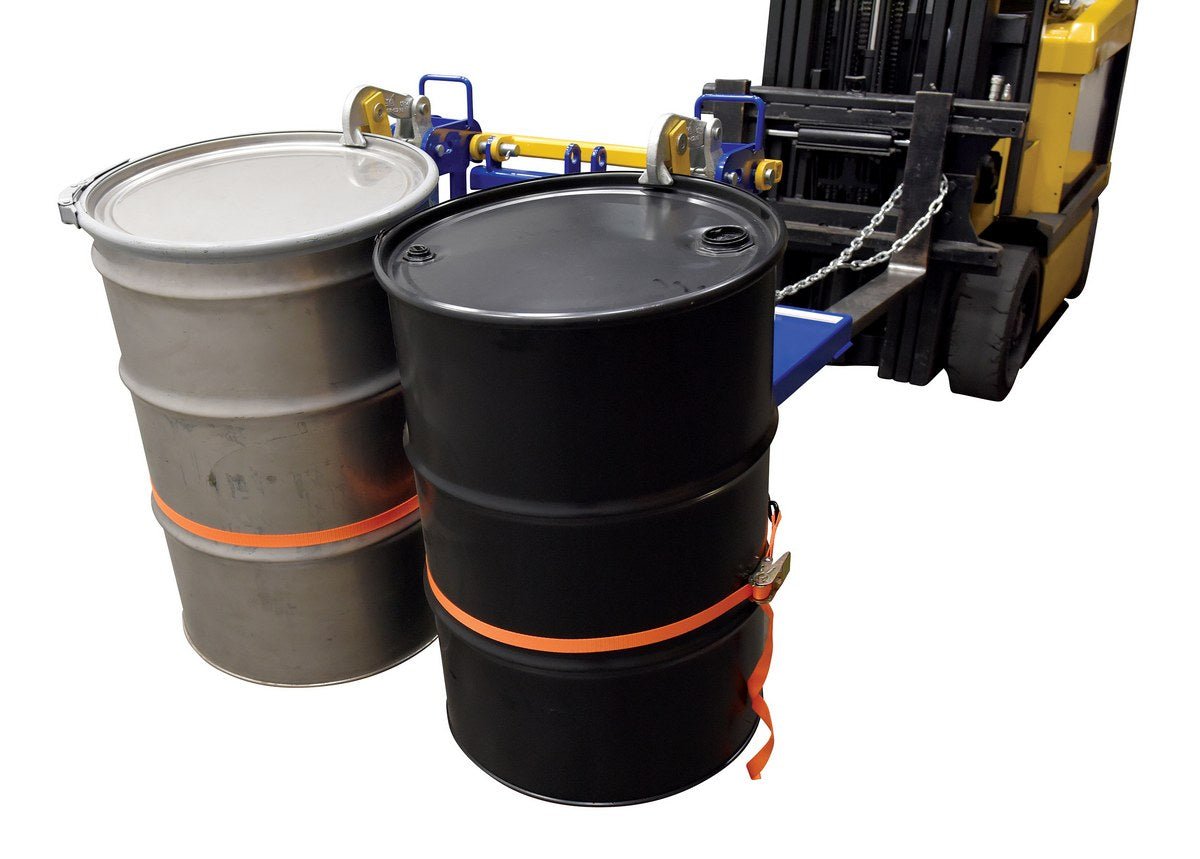

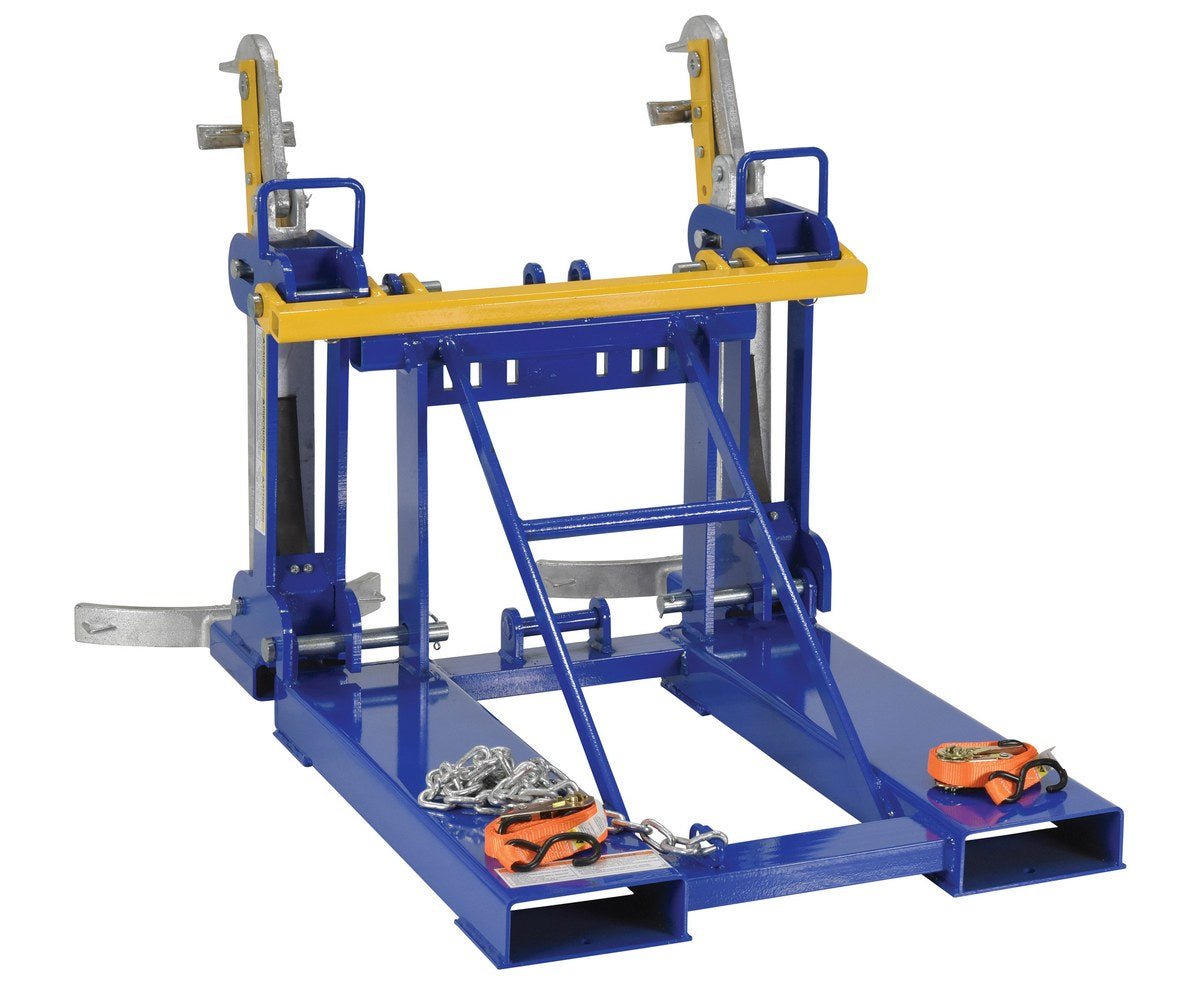

For use with open (lid installed and secured) and closed head 30 and 55-gallon plastic, steel and fiber drums with a top lip strong enough to support the weight of the drum. Choose single-drum or double-drum configuration. Includes safety restraint to secure unit to the fork truck. Welded steel construction. Powder coat finish for baked in powder-coated toughness. Fork pockets measure 7-1/2" wide x 2-1/2" high usable on 20-1/2" centers. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain. Additonal or replacement ratchet straps available, contact factory. Meets OSHA 1910-178 requirements.
* Simple & Easy Operation
* Low Maintenance Design
* Completely Automatic Operation
* Belt and Roller units provide a softer lifting surface, minimizing scratches
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Automatic Eagle Beak Drum Lifters | ||||
Model | Number of Drums | Capacity (lbs) | Overall Size (WxLxH) | Wt. (lbs) |
FMDL-1 | 1 | 1,000 | 28-1/2"x42-5/8"x31-1/4" | 227 |
FMDL-2 | 2 | 2,000 | 41-1/4"x42-5/8"x31-1/4" | 311 |
With Rollers | ||||
FMDL-1-LDS-R3 | 1 | 1,000 | 28-1/2"x46-1/2"x31-1/4" | 227 |
FMDL-2-LDS-R3 | 2 | 2,000 | 46-1/4"x46-1/2"x31-1/4" | 311 |
With Belt | ||||
FMDL-1-LDS-B1 | 1 | 1,000 | 28-1/2"x44-5/8"x31-1/4" | 227 |
FMDL-2-LDS-B1 | 2 | 2,000 | 45-5/16"x44-5/8"x31-1/4" | 311 |
