Product Description

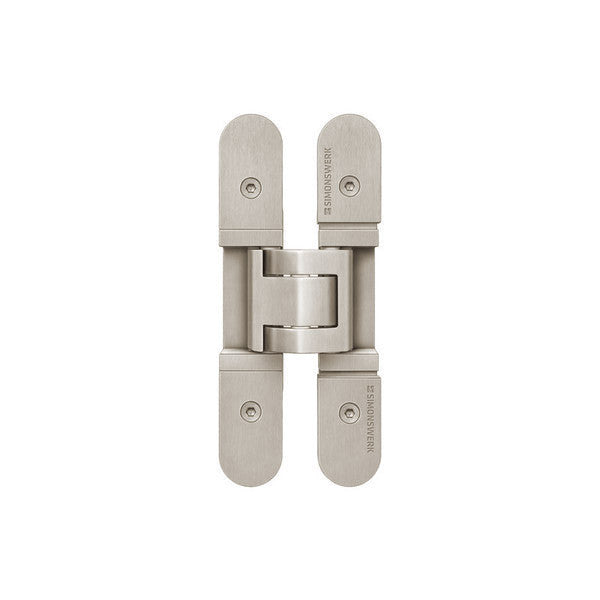

TECTUS® TE 527 3D Concealed Hinge
TECTUS enables the optimal integration of flush doors in straight line and flush surfaces for contemporary clean designs.
The SIMONSWERK TECTUS TE 527 3D concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.
The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 527 3D hinge system is for use with high-quality commercial doors.
Features
- Manufactured of mild steel for flush commercial doors
- 180° opening angle without pinching or damage during opening and closing
- For doors up to 264 lbs with 2 hinges installed
- EASILY adjustable in 3-Dimensions
- Maintenance-free slide bearings
- For wood, metal, or casing frame installation
- Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance
Specifications
- Minimum door thickness: 1-3/8"

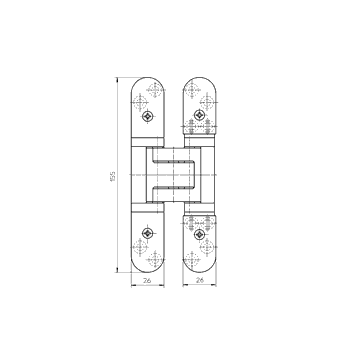

Height: 6.1" [155mm]
Width: Frame & Leaf: 1.02" [26mm]
Depth: Frame: 1.3" [33mm] & Leaf: 1.48" [37.5mm]
Available Finishes:
- SSL: Stainless Steel Look
- Other finishes available.
More Information
*Use with routing template
*UL Listed: 3-HOURS
Use hinge to provide power and data to door leaf

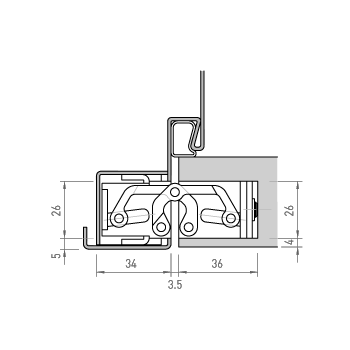

- For TE 527 3D installation in steel frames you will need:One (1) Receiver per hinge.

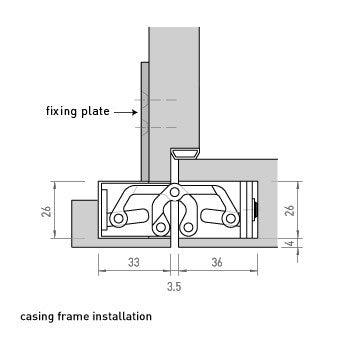

- For TE 527 3D installation in casing frames you will need:One (1) Fixing Plate per hinge
