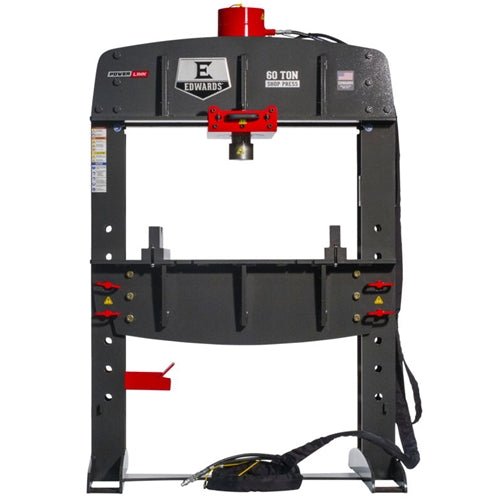

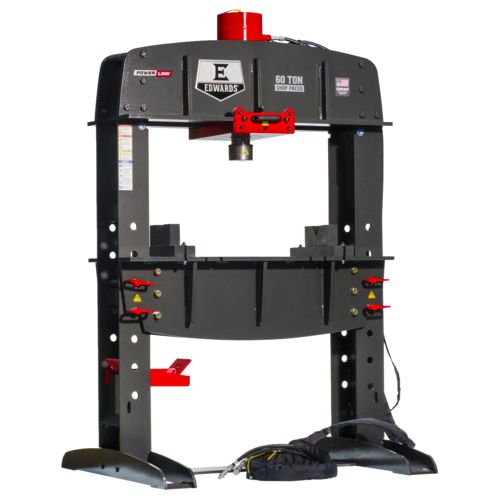

Our 60 Ton Shop Press solves a variety of demands to improve user’s productivity. Smooth & precise, heavy-duty and versatile, our unique, open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed PowerLink System or an Edwards Portable Power Unit.
With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.
Also available with to improve your productivity on repeatable actions. Provides adjustable up/down stroke control saving time. Adjustable PSI allows the user to set the pressure and cycle the press with an automatic return. Magnetic base allows easy mounting of the PLC anywhere on the machine.”
GENERAL SPECIFICATIONS
EDWARDS IRONWORKER/
PORTA-POWER
Standard Motor 5 HP 3~ 208 V or 230 V
1725 RPM 14 A
Optional Motors 5 HP 3~ 460 V
1725 RPM 7 A
5 HP 1~ 230 V
1725 RPM 23 A
Hydraulic Pump 3-1/2 GPM - 1 Stage
Valve Pressure 2750 PSI
Reservoir 7 Gallons
GENERAL SPECIFICATIONS
Rating 60 Tons
Cylinder 4" Ram
Stroke 12-1/4"
DIMENSIONS
Height 84.3"
Width 54"
Depth 48"
Shipping Weight 1,874 lb
