Product Description

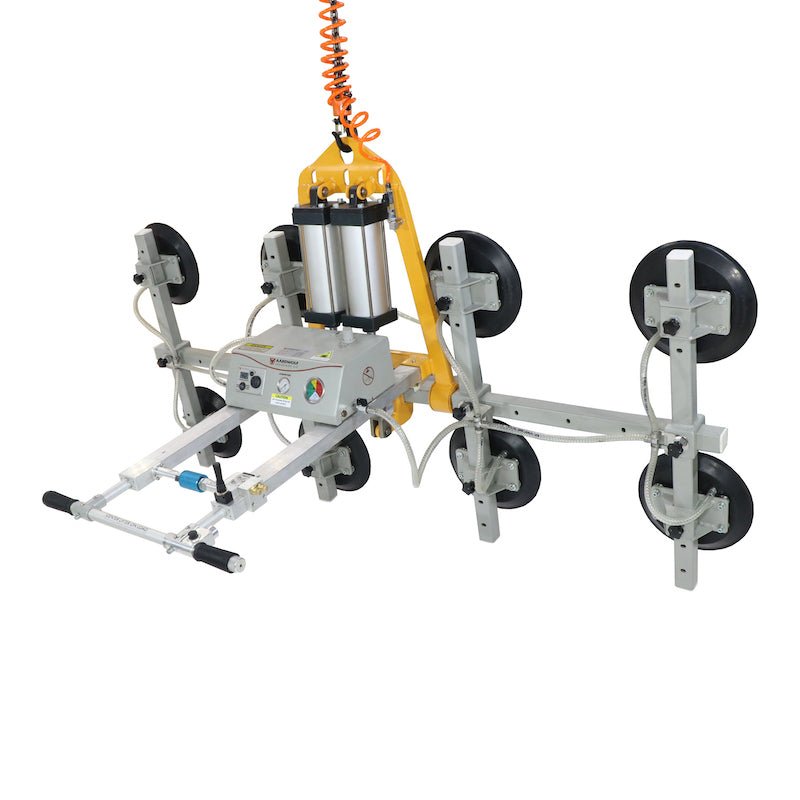

Vacuum Glass Lifter suitable for lifting sheets of glass that weight up to 1,764 pounds!
General

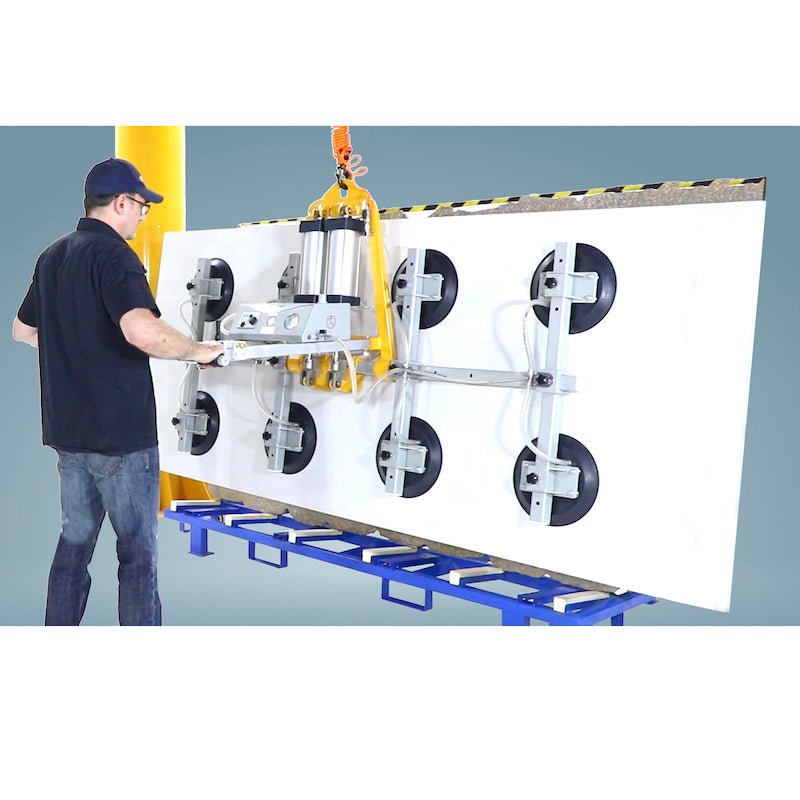

This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
Specifications
Metric | Imperial | |
| Number of pads | 8 | - |
| Pad diameter | seal to seal:300 mm | 11.8" |
| Working load limit | Vertical: 400 kg Horizontal: 800 kg | 882 lb. 1764 lb. |
| Net weight | 108 kg | 238 lb. |
| Gross weight | 135 kg | 298 lb. |
| Packaging dimensions | L.2050xW.430xH.960 mm | 80.7"x17"x37.8" |
- Battery information for the device
| Code battery | GBA 12V 2.0Ah Bosch |
| Type battery | Lithium-ION |
| Voltage | 12V |
| Current | 2.0Ah |
| Quantity | 1 |
| Continuous operation time with mode-saving pressure | 2 hours |
| Working time with mode saving pressure | 6 hours |
| Continuous operation time with mode audio alarm only | 120 hours |
| Working time with mode audio alarm only | 360 hours |
- Battery charger
| Code battery | GAL 12V-40 Bosch |
| Input supply voltage | 220-240VAC |
| Output voltage | 12V |
| Output current | 4.0Ah |
| Quantity | 1 |
| Full charger time | 0.5 hour |
| Weight | 460 gram |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
