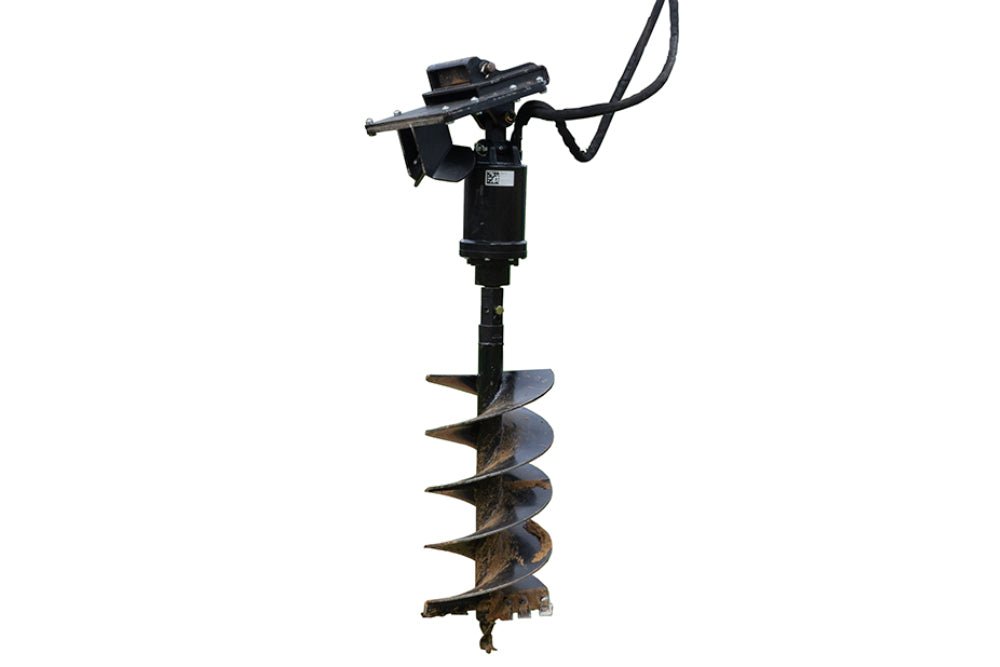

Extreme Duty Series 2 Auger for Excavators - Heavy Duty Earth Drilling Attachment for Construction & Landscaping Projects
$2110.35 $3837
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:28688339
Guranteed safe checkout
Product Description
Auger offers the ultimate in performance, quality, and cost-effectiveness for excavators.
Designed with high-grade materials and innovation, this attachment allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. Our augers are perfect for drilling in most ground conditions.
*Available to fit machines up to 60,000 lbs.
Features
- Compact high torque manufactured gearbox
- 2-piece shaft design ensuring maximum side load ratings A
- 5-year gearbox warranty, 3-year motor warranty, and lifetime on shaft pull-out
Product Specs
MODEL EX1 EX2 EX3 EX4 EX4HF EX5HF EX6HF EX7HF Part Number 305705 305708 305712 305715 305720 305725 305728 305730 Torque ft-lbs. @ 3000 Ps 1,467 2,254 2,829 3,275 3,583 3,903 4,909 6,162 Max Torque ft-lbs. 3500 Psi 1,712 2,630 3,300 3,821 4,180 4,553 5,728 7,189 Recommended Flow (GPM) 6-16 10-26 10-30 10-30 10-36 10-36 12-36 14-36 Peak Efficiency (GPM) 8-11 12-16 17-20 19-23 21-26 — — — Motor Type Eaton Eaton Eaton Eaton Eaton Eaton Eaton Eaton Max Pressure – Do Not Exceed 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 27 gpm 3500 psi @ 27 gpm 3500 psi @ 27 gpm 3500 psi @ 27 gpm Max Flow – Do Not Exceed 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 42 gpm @ 3100 psi — — — Max HP 33 33 33 33 55 55 55 55 Pressure Relief Valve N/A N/A N/A N/A Included Included Included Included Standard Output Shaft 2″ Hex 2″ Hex 2″ Hex 2″ Hex 2″ Hex 2 1/2" Hex 2 1/2" Hex 2 1/2" Hex Max Drilling Diameter Clay/Shale 12″ 24" 24" 24" 24" 24" 30" 30" Max Drilling Diameter Earth 24″ 30” 30” 30” 40” 40" 40" 48" Weight (lbs.) 101 123 123 125 180 290 290 290 Overall Length (in) 24.5″ 25.9″ 25.9″ 25.9″ 29″ 33.7" 33.7" 33.7" Diameter (in) 7.4″ 9.4″ 9.4″ 9.4″ 9.4″ 11.4" 11.4" 11.4" MODEL EX1 EX2 EX3 EX4 EX4HF EX5HF EX6HF EX7HF Max Diameter (shale/clay 12” 24” 24” 24” 24” 24” 30" 30" Max Diameter (dirt) 24” 30” 30” 30” 40" 40" 40" 48”
