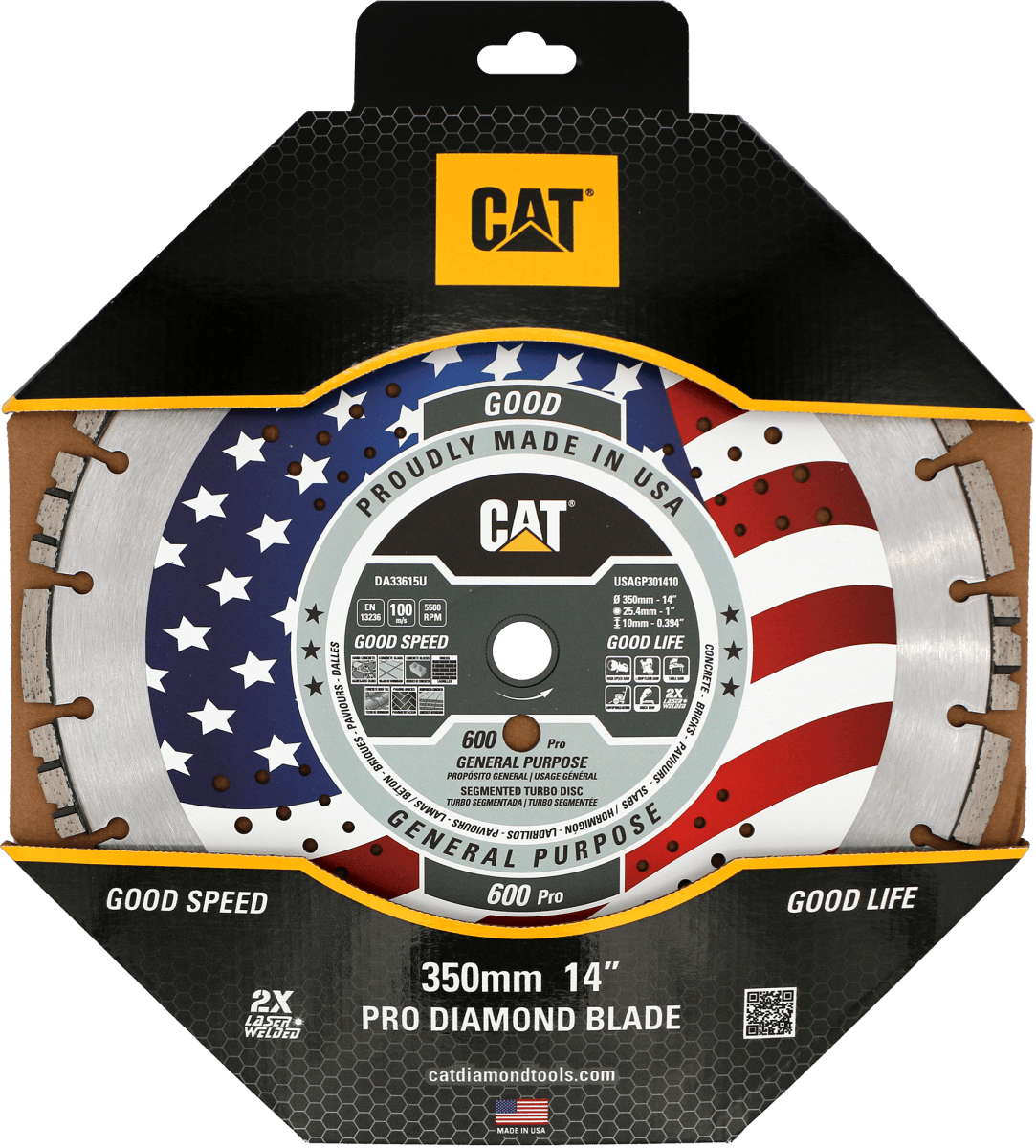

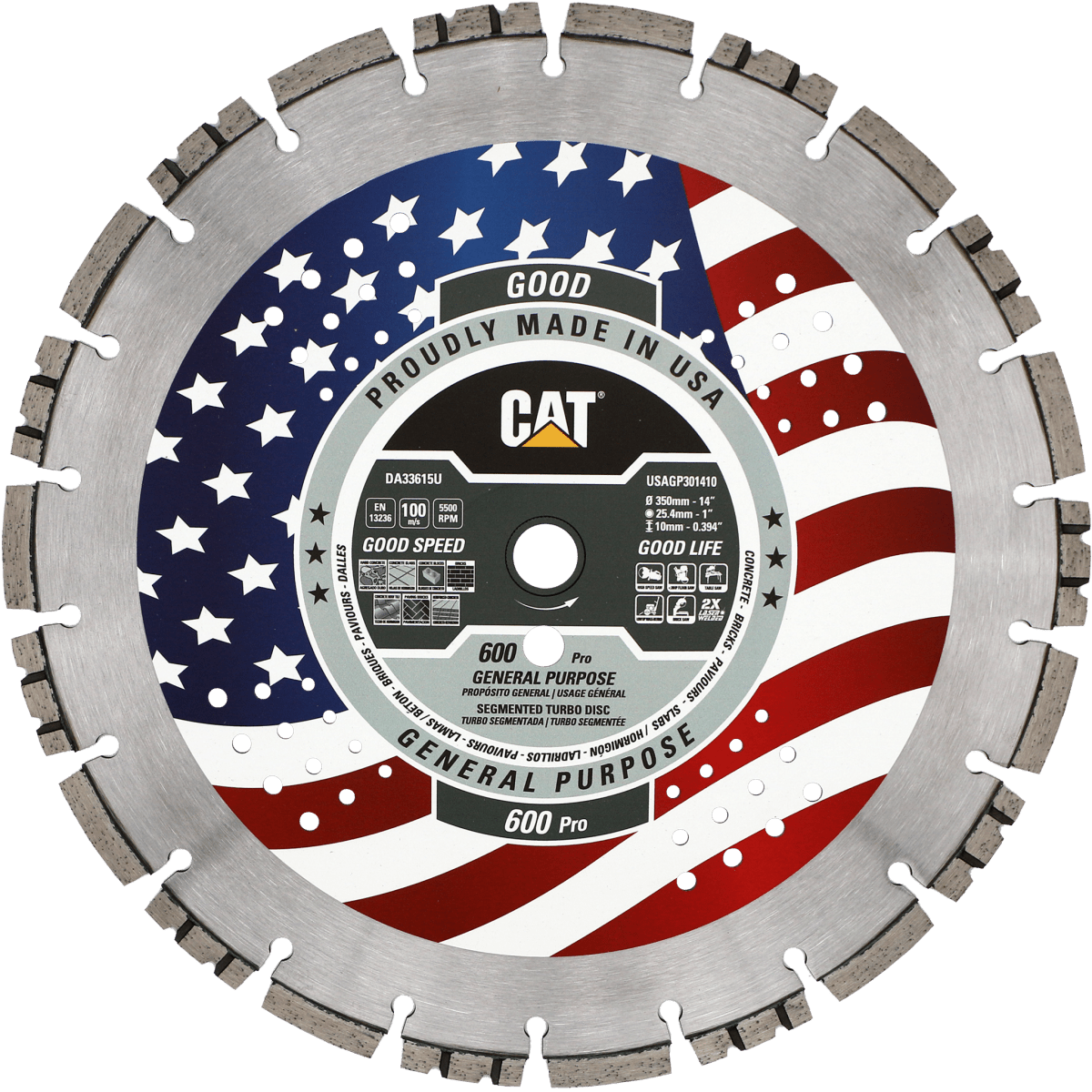

Cat® 600 Pro Diamond Blade - 10mm General Purpose Cutting Disc for Concrete, Brick & Tile | Free Shipping USA | Perfect for Construction & DIY Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:26 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:40627009
Product Description
Cat® General Purpose blades are designed for intensive use across the 3 performance grades: Good, Better and Best.
Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that has been proven to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® General Purpose blades are able to cut a wide span of applications and a multitude of materials. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height.
ATTRIBUTES
- Above Industry Standard Diamond Quality & Bond Formulation
- Long Life & Speed of Cut
- Vented Cooling Holes for Rapid Heat Dispersion
- 2X Laser Welded for Safety & Stability of Segments
- Unique Turbo Alternate Standard Segment Design for Aggressive Cutting Action
- Special V Turbo Design Clears Abrasive Fines from The Cut & Generates Less Friction
- Keyhole Gullet Design For Dust Extraction From Cut.
Soft - Medium Aggregate Concrete (Granite - Limestone), Terracotta, Class B Engineering Brick 75N/Mm2, Limestone Aggregate Concrete, Lightly Reinforced Concrete, Concrete Paviours - Kerbs - Slabs, Concrete Roof Tiles - Pipes, Medium Facing Brick, Soft Facing Bricks, Concrete Blocks Over 15N/Mm2, Hard Sandstone (Fine Grit), Medium Sandstone (Medium Grit), Plaster - Grout.
Hard To Medium Aggregate Concrete (Chert - Trap Rock - River Gravel), Medium Aggregate Concrete (Traprock - Quartz), Basalt, Hard Limestone, Hard Facing Brick, Hard Slate, Soft Slate, Concrete Screed.
Granite, Quartzite, Class A Engineering Brick 125 N/Mm2, Refractory Brick, Clay Pipe - Roof Tiles, Clay Paviours, Travertine, Porphyry, Soft Sandstone (Coarse Grit), Mortar (Hard), Mortar (Abrasive), Asphalt Over Concrete, Concrete Block Under 15N/Mm2, Thermal Block 7 N/Mm2, Lignacite Blocks.
Heavily Steel Reinforced Concrete, Critically Hard Aggregate Concrete (Flint, Chert), Asphalt, Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate, Green Concrete With Medium Soft Aggregate, Lava Rock, Pumice.
Key
Correct Bond For Application Optimal Performance, Speed & Life
Good Match Bond For Application Excellent Performance Speed & Life
Acceptable Bond For Application Reduced Performance, Speed & Life
Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur
| PRODUCT TYPE | DIAMETER | SEGMENT HEIGHT | SEGMENT WIDTH | MAIN ARBOR - BORE | REDUCING RINGS INCLUDED | MACHINES USED | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO | CODE NO | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | |
| DA33614U | USAGP301210 | 300 | 12 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |      |
| DA33615U | USAGP301410 | 350 | 14 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA33616U | USAGP301610 | 400 | 16 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA33617U | USAGP301810 | 450 | 18 | 10 | 0.394 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
Available in USA, non-oSa accredited.
