Product Description

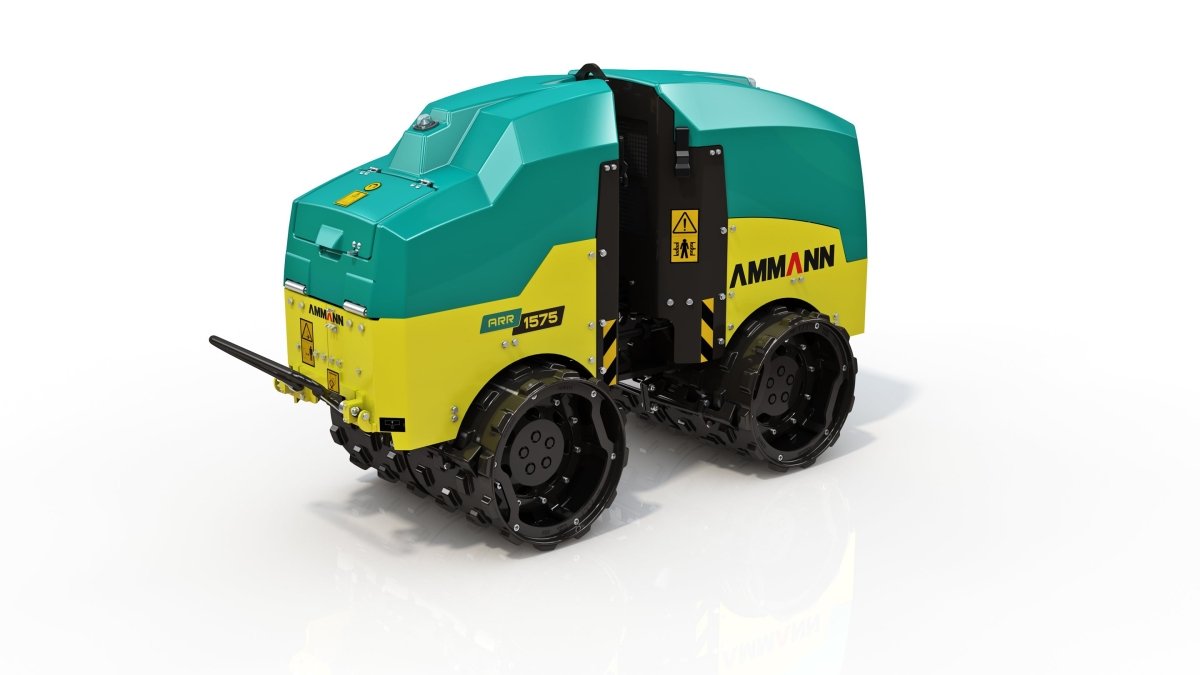

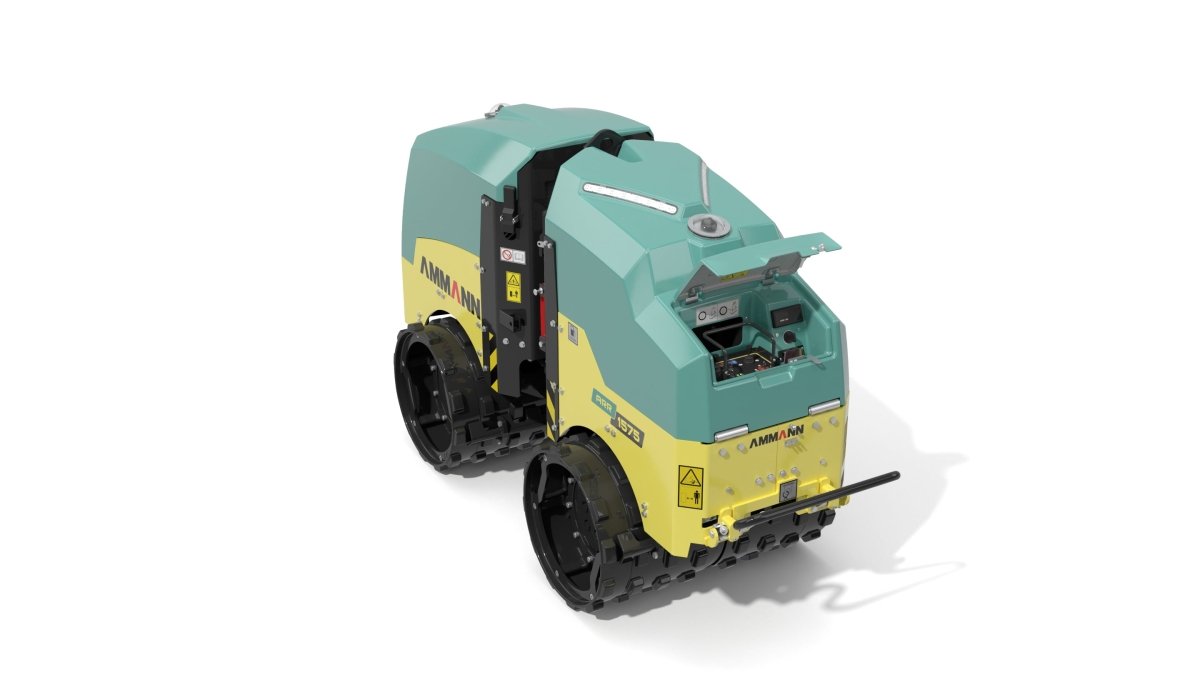

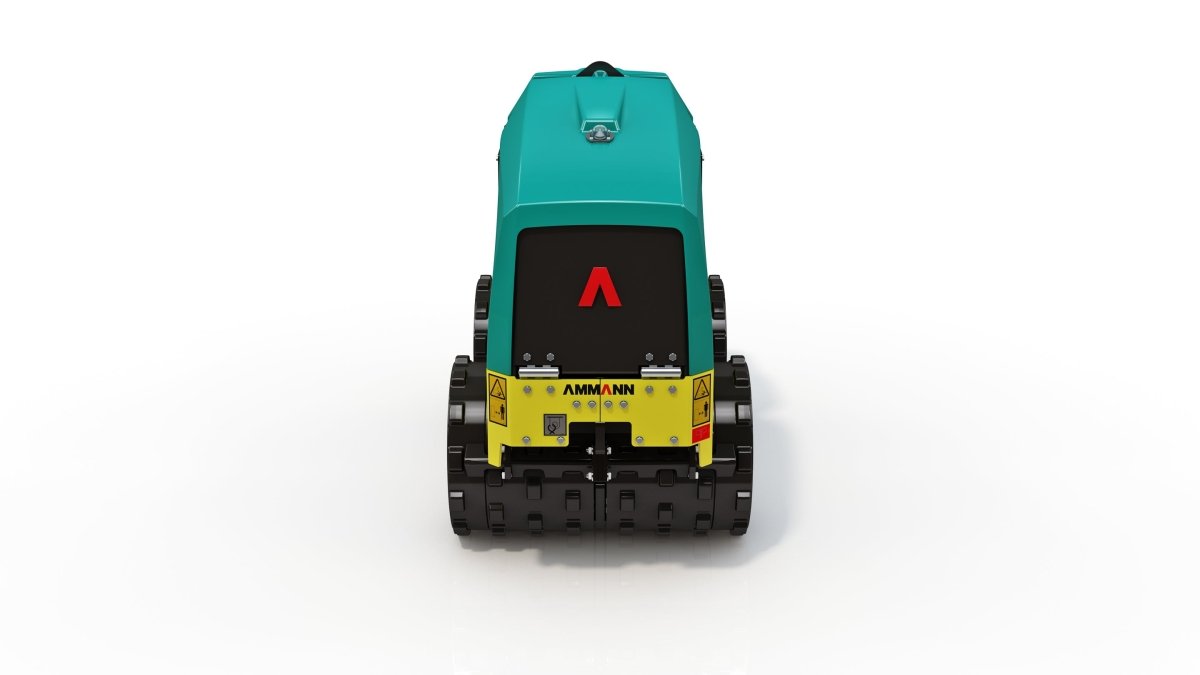

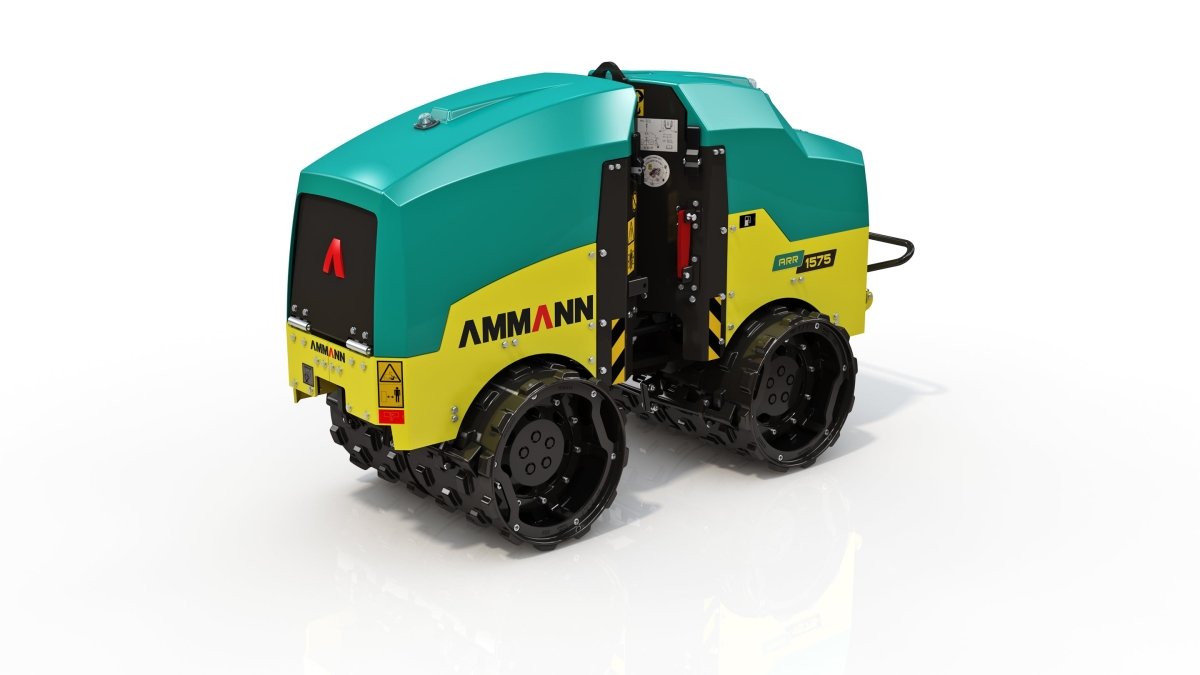

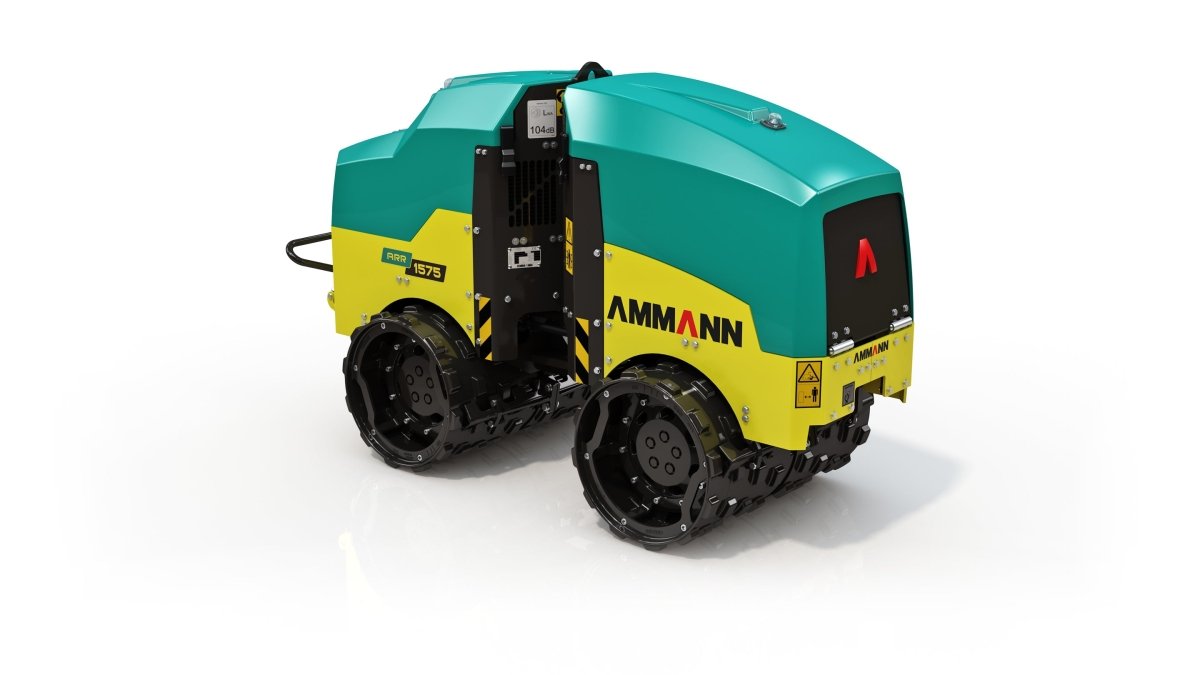

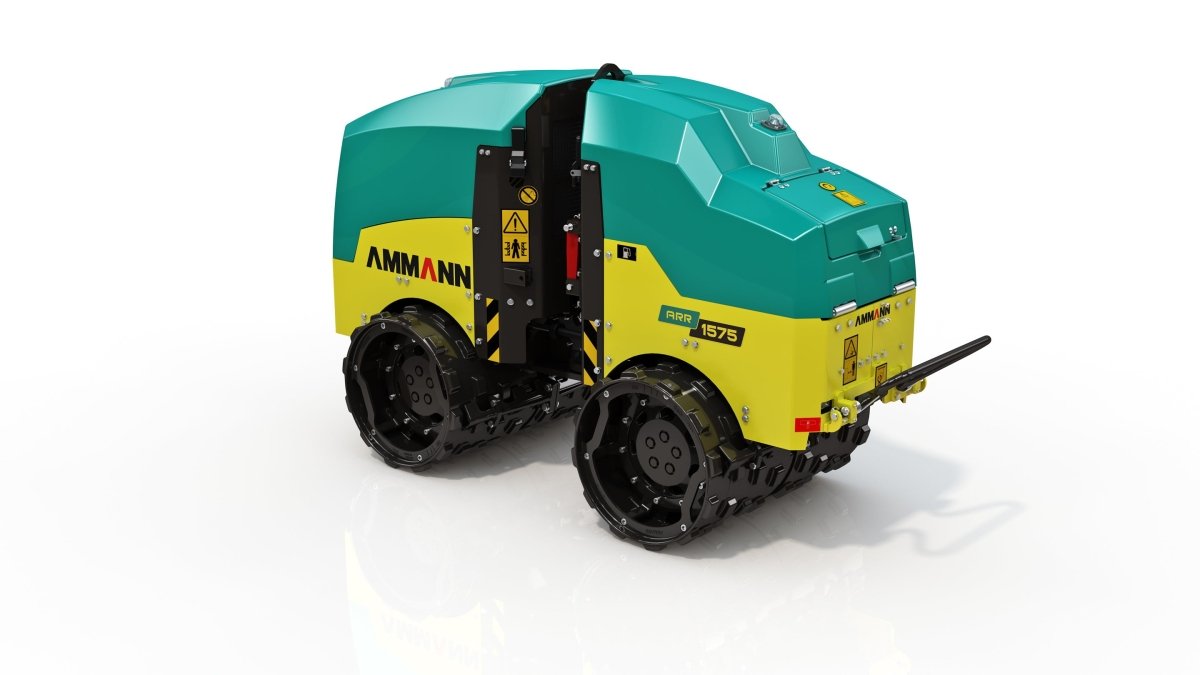

The ARR 1575 is an articulated trench roller that provides perfect ground contact and optimal compaction.  Always in contact with soil.

The machine and its padfoot drum provide results, even where other compactors have failed. Its ability to work in cohesive soils can prevent the need for soil removal and replacement, providing a significant financial impact. Two steering cylinders help make the ARR 1575 responsive and precise, while the oscillation feature provides excellent stability on uneven surface of a ditch.Two-stage vibrator
Two different settings of amplitudes and compaction performance enable varied machine usage on constructions sites
Articulated joint with oscillation
Great maneuverable properties with permanent ground contact
Drum extensions
Easily changeable drum working widths for different job sites

Infrared remote control
Safest solution: operator must have directly visibility for the machine to run
Solar power cells
Machine is always ready to work without additional remote-control charging
Automatic pairing of machine control
Automatically determines the right communication frequency

Maintenance-free parts
Reduce time required for machine maintenance and prevent damage to components
Tool-free daily inspection
Daily maintenance possible without tools
Bolted frame
Clever solution for quick and easy machine servicing

DIMENSIONS
A = MACHINE LENGTH1980 mm
B = WHEELBASE1000 mm
C = MACHINE HEIGHT1317 mm
D = MACHINE HEIGHT (HOOD)1282 mm
E = MACHINE WIDTH601 mm
F = DRUM WIDTH640 / 850 mm
G = MACHINE LENGTH2227 mm
I = DRUM DIAMETER525 mm



WEIGHT & OPERATING CHARACTERISTICS
640 mm850 mm
OPERATING WEIGHT1340 kg1440 kg
OSCILLATING ANGLE± 7°± 7°
WORKING SPEED1.4 km/h1.4 km/h
TRAVEL SPEED2.8 km/h2.8 km/h
GRADEABILITY WITH / WITHOUT VIBR.25 % / 30 %25 % / 30 %
TURNING RADIUS INNER1540 mm1440 mm
TURNING RADIUS OUTER2190 mm2290 mm



ENGINE
MANUFACTURERYanmar 3TNV80F
POWER ACC. ISO 3046-114.6 kW (20 HP)
ENGINE COMPLIES WITH EMISSION REGULATIONSEU Stage V / U.S. EPA Tier 4 Final
NOMINAL SPEED2400 min-1 (RPM)
NO OF CYLINDERS3 / water cooling
DRIVE SYSTEMHydrostatic
COMPACTION FORCES
AMPLITUDE I1.1 mm
AMPLITUDE II0.6 mm
FREQUENCY40 Hz
CENTRIFUGAL FORCE I75 kN
CENTRIFUGAL FORCE II36 kN
MISCELLANEOUS
FUEL TANK CAPACITY28 l
HYDRAULIC OIL CAPACITY16 l
