Aardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop Use
Aardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop UseAardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop UseAardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop UseAardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop UseAardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop Use

Aardwolf ARGL 500 DC Powered Vacuum Glass Lifter - Heavy Duty Glass Suction Cup for Window Installation, Glass Handling & Mirror Mounting - Perfect for Construction, Home Improvement & Glass Workshop Use

$2828.65 $5143 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:17 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:49249413

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

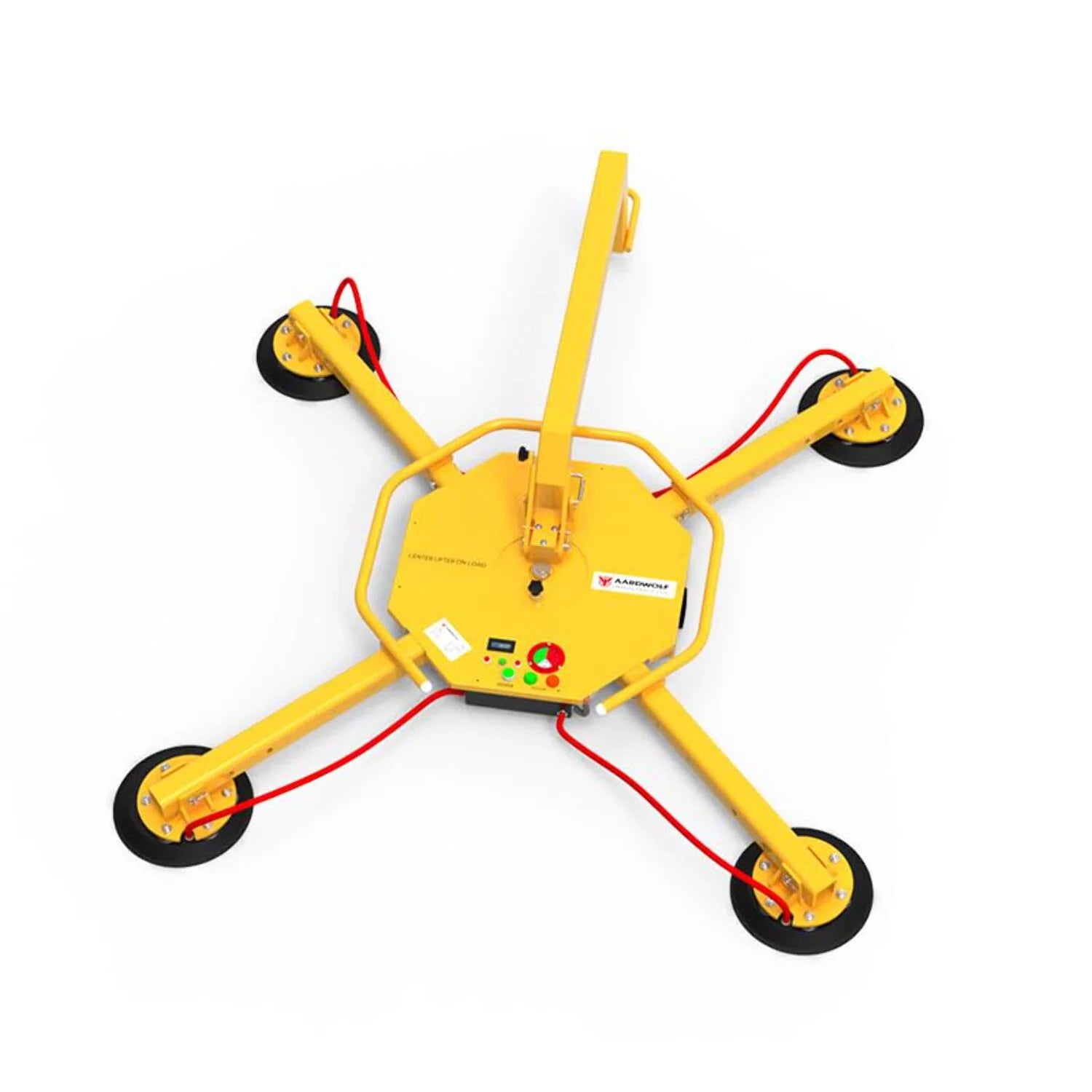

The DC Powered Vacuum Glass Lifter ARGL-500 is suitable for lifting and transporting glass elements of up to 500kg.

The upgraded is also available.

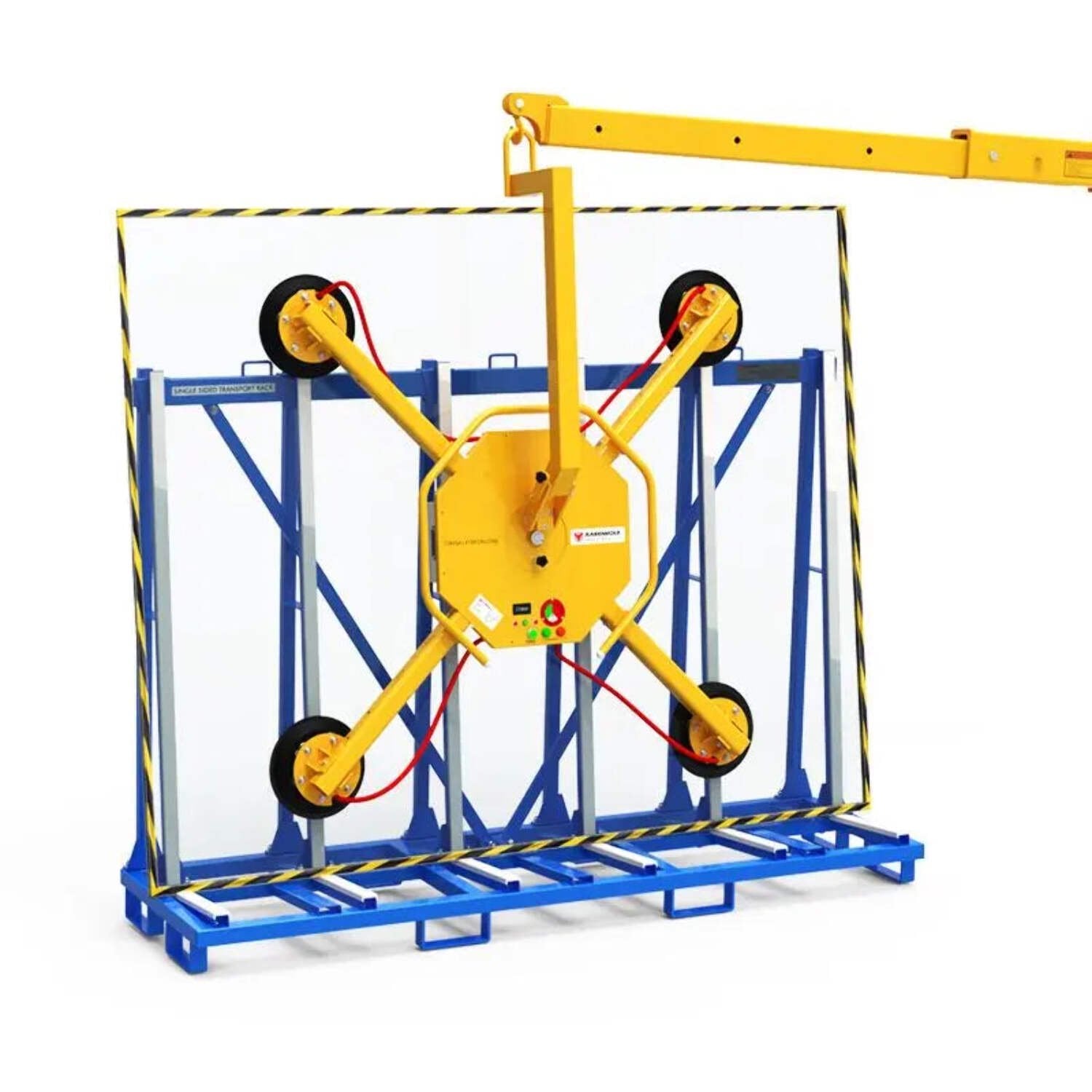

This device can be used to install windows and large glass sheets with the aid of a forklift, counterbalance crane or overhead hoist. On-board DC power systems provide cord-free operation at the job site. Movable vacuum pads and extension arms allow the DC Powered Vacuum Glass Lifter - ARGL-500 to handle glass in nearly every size and shape.

Features

  • Spring-loaded vacuum pads.
  • Manual rotation of 360° with 45° step.
  • Manual tilting by 90° in 15° grid.
  • Removable arm - depth minimum 150mm.
  • Integrated vacuum reservoir tank.
  • Integrated instrumentation for monitoring the vacuum and the energy supply.
  • Visual and audible warning devices.
  • Self-contained 12-volt battery power supply with high capacity

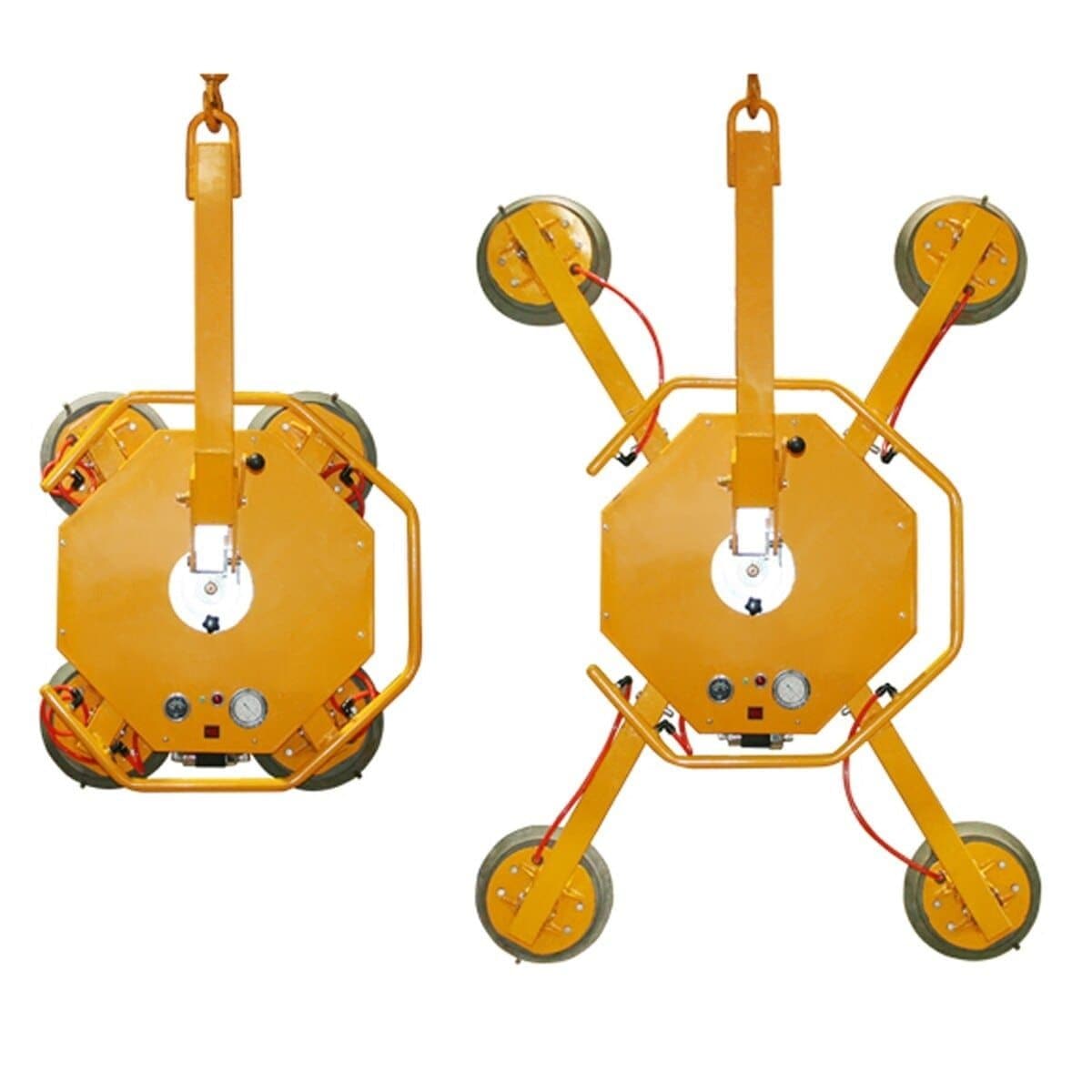

  • Extension arms allow the handling of large-sized sheets.
  • Adjustable arms.

Specifications


Metric
(mm-kg)
Imperial
(inch-lb.)
Number of pad4-
Pad diameter30011.8"
Working load limitVertical: 400
Horizontal: 500
882
1102
Net weight69152
Gross weight95209

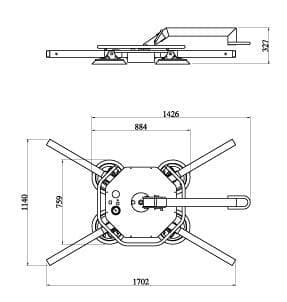

Packaging dimensionsL.1070xW.970xH.45042.1"x38.2"x17.5"
  • Battery information for the lifter
Code batteryM12B6 Milwaukee
Type of batteryLithium-ION
Voltage12V
Current6.0Ah
Quantity1
Continuous operation time2 hours
Working time6 hours
  • Battery information for charger
Code battery chargerC12C Milwaukee
Input supply voltage100-240VAC
Output voltage12V
Output current3.0Ah
Quantity1
Fully charger time2.5 hours
Weight460 gram
  • Motor information
Vacuum flow rate32.5 liters/minute
Motor12V DC-4A
