Product Description

50 Ton Ironworker versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station.

Build to order: approx. 2-3 week lead time

Compact and Versatile

• Four Available Workstations
• Punch Assembly Designed for Optional Tooling
• Dedicated Coper Notcher Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

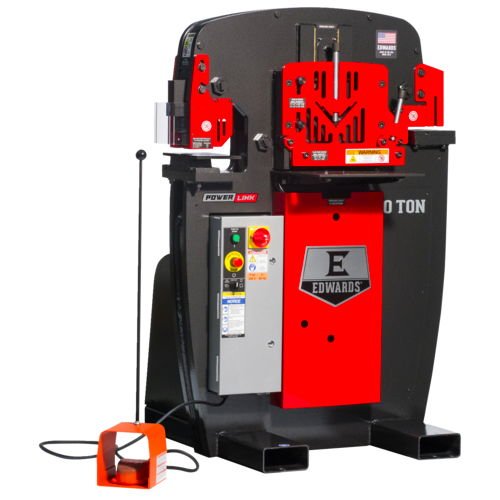

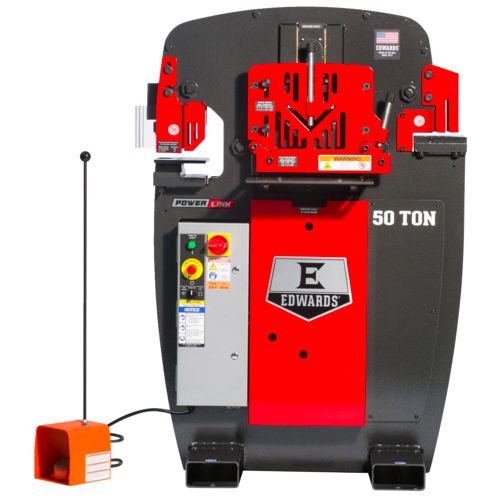

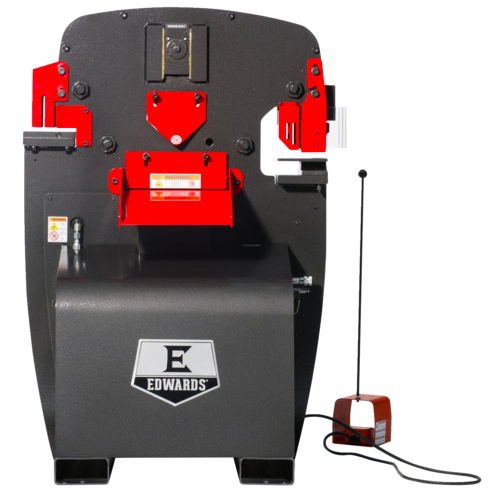

The Edwards 50 Ton Ironworker is  ideal  for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station. The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press

PUNCH

• Rating 50 Tons

• Max. Capacity 1" Dia. in 5/8" A36

• (65,000 PSI Tensile)

• Stroke 1-7/8"

• Throat Depth 7"

• Open Height 8-1/8"

• Shut Height 6-1/4"

• Work Height 36-9/16"


FLAT BAR SHEAR

• Max. Capacity 1/2" x 10"

• 3/4" x 4"

• Max. Round 3/4"

• Max. Square 3/4"

• Work Height 34-1/2"


ANGLE SHEAR

• Max. Capacity 3" x 3" x 3/8"

• 4" x 4" x 1/4"

• Work Height 39-7/8"

COPER NOTCHER

• Max. Capacity 2" x 3" x 5/16"

• Work Height 39-1/2"


GENERAL SPECIFICATIONS

• Standard Motor 5 HP 3~ 208 V or 230 V

• 1725 RPM 14 A

• Optional Motors 5 HP 3~ 460 V

• 1725 RPM 7 A
• 5 HP 3~ 575 V

• 1725 RPM 6 A
• 5 HP 1~ 230 V

• 1725 RPM 23 A

• Hydraulic Pump 3-1/2 GPM - 1 Stage

• Valve Pressure 2500 PSI

• Reservoir 7 Gallons

• Cylinder 2-1/2" Ram


DIMENSIONS

• Height 54-1/2"

• Width 36-3/4"

• Depth 36-1/8"

• Shipping Weight 2020 lb
