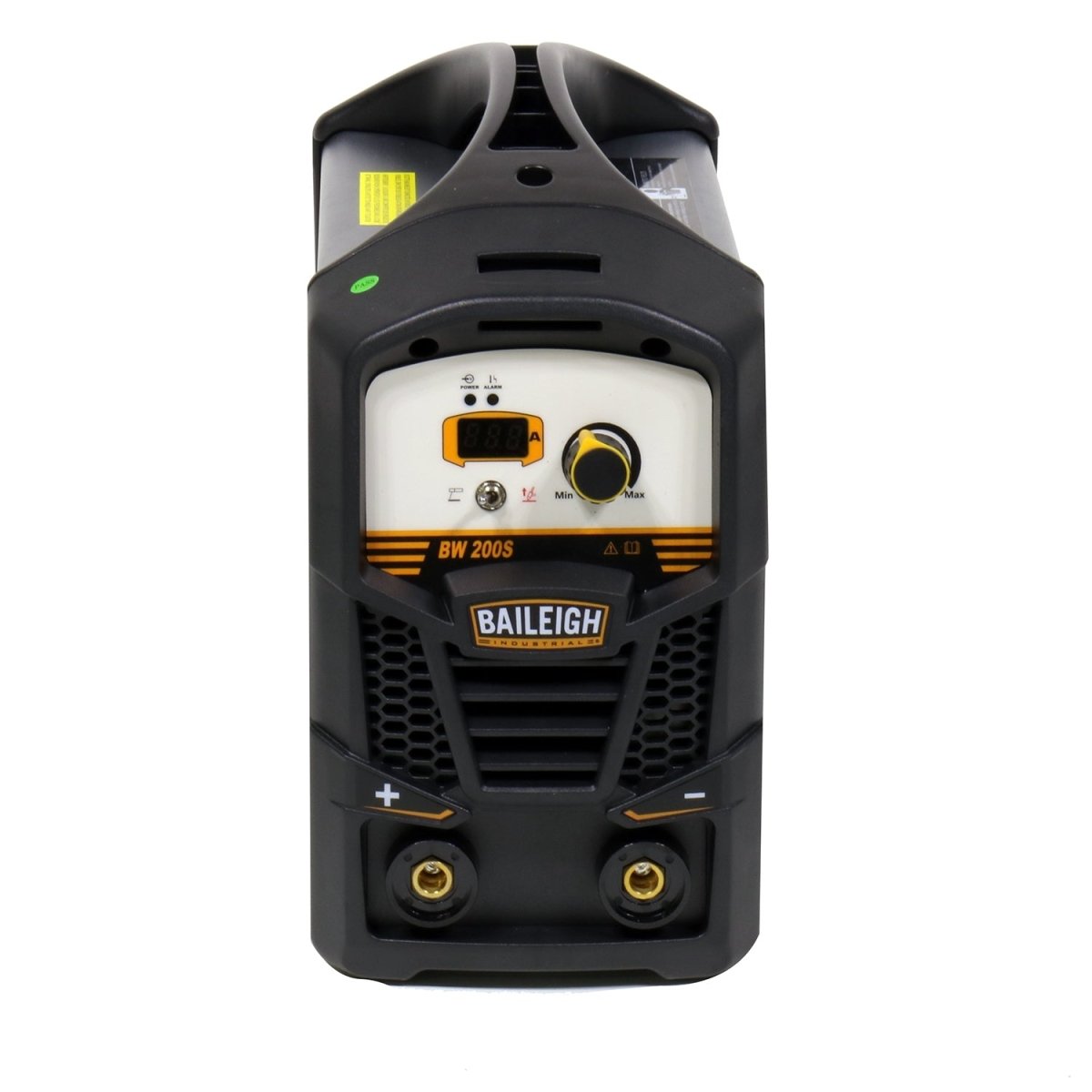

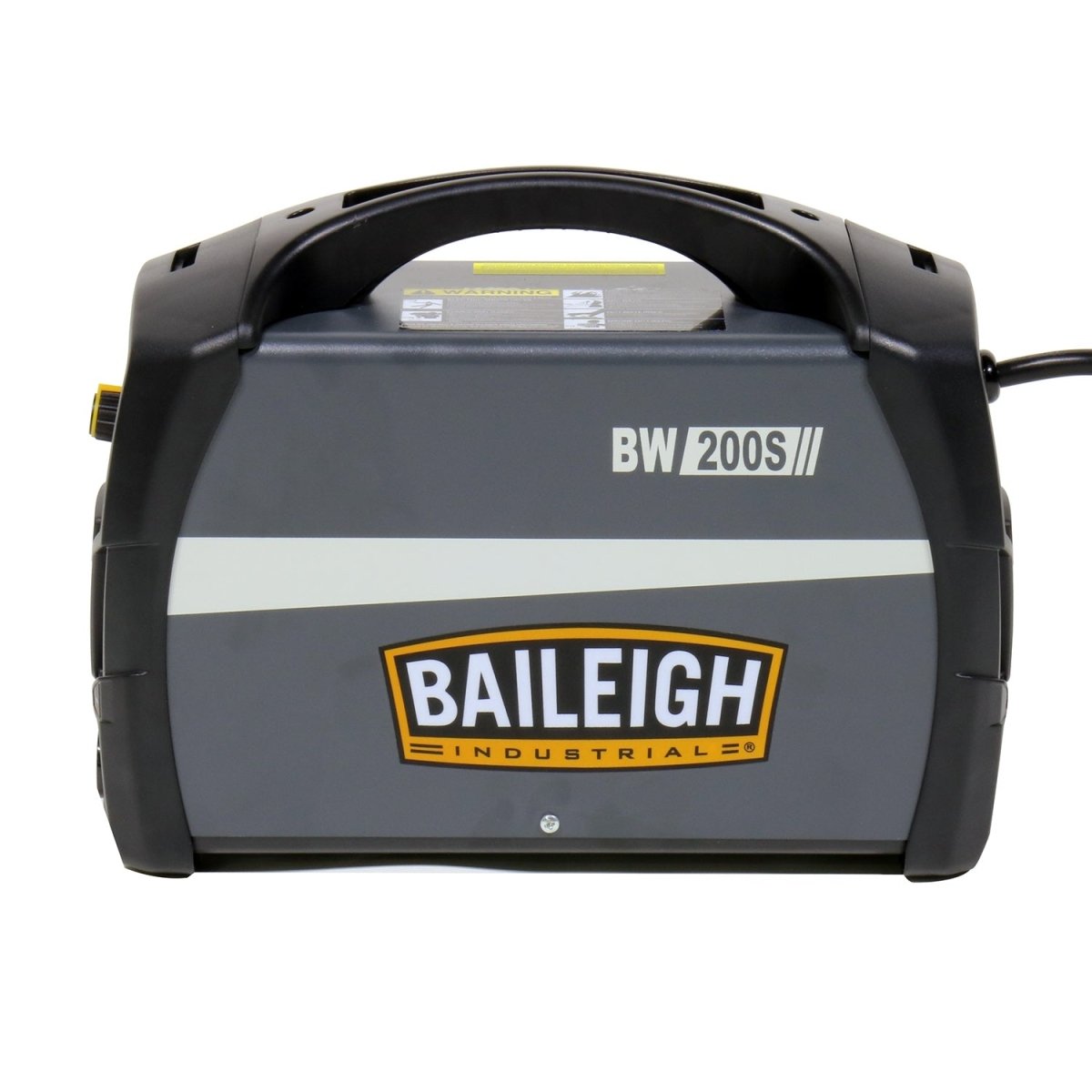

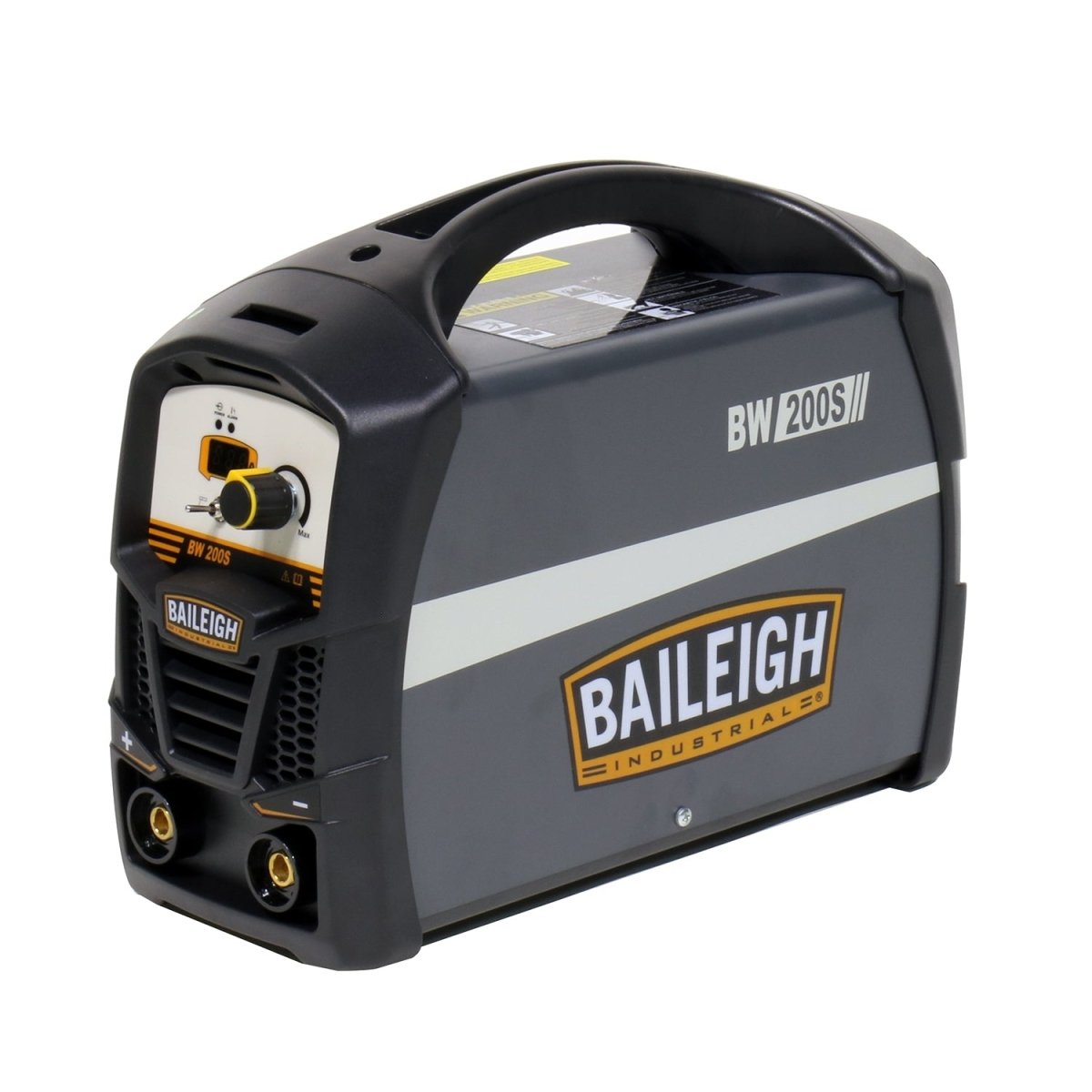

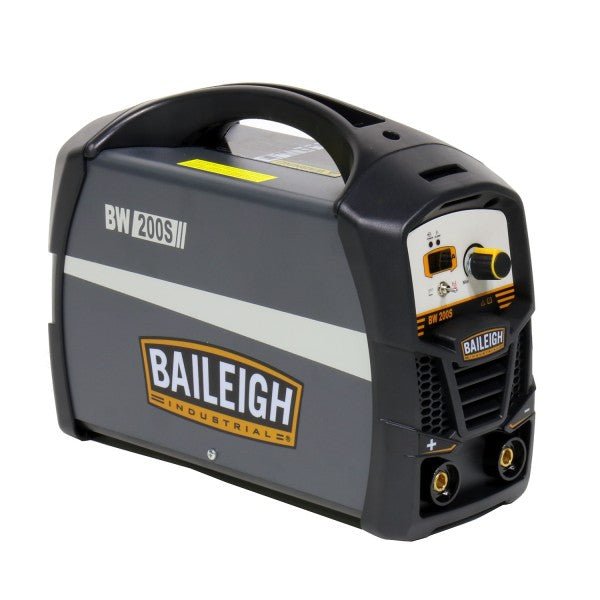

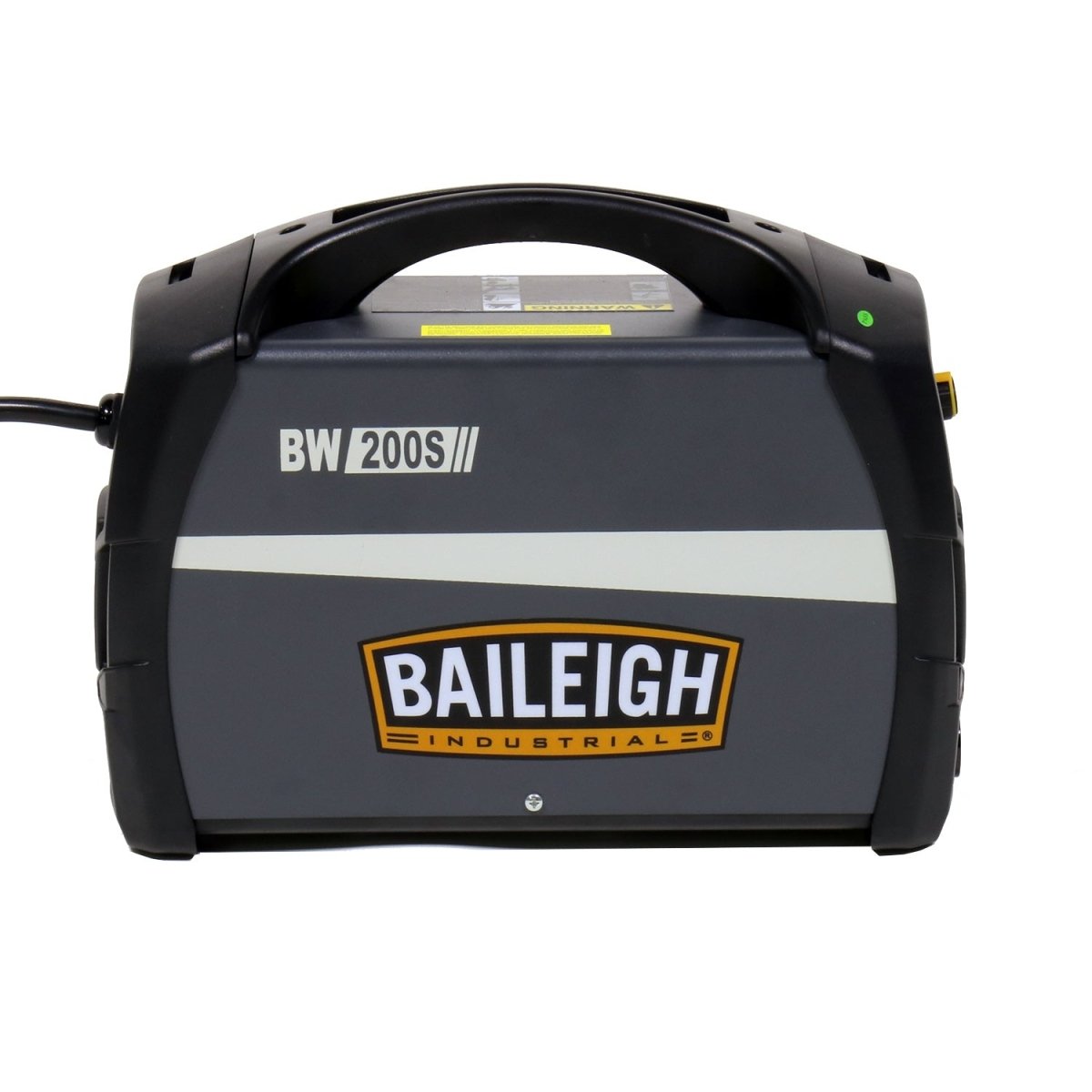

It features extremely solid construction but remains very portable at only 16 lbs. This BW-200S Industrial welding machine is the ideal choice for a welder working at the job site in during extreme conditions.
Item Number | BW-200S |
---|---|
Cooling System | Fan Cooled |
Maximum Current | 200 Amps |

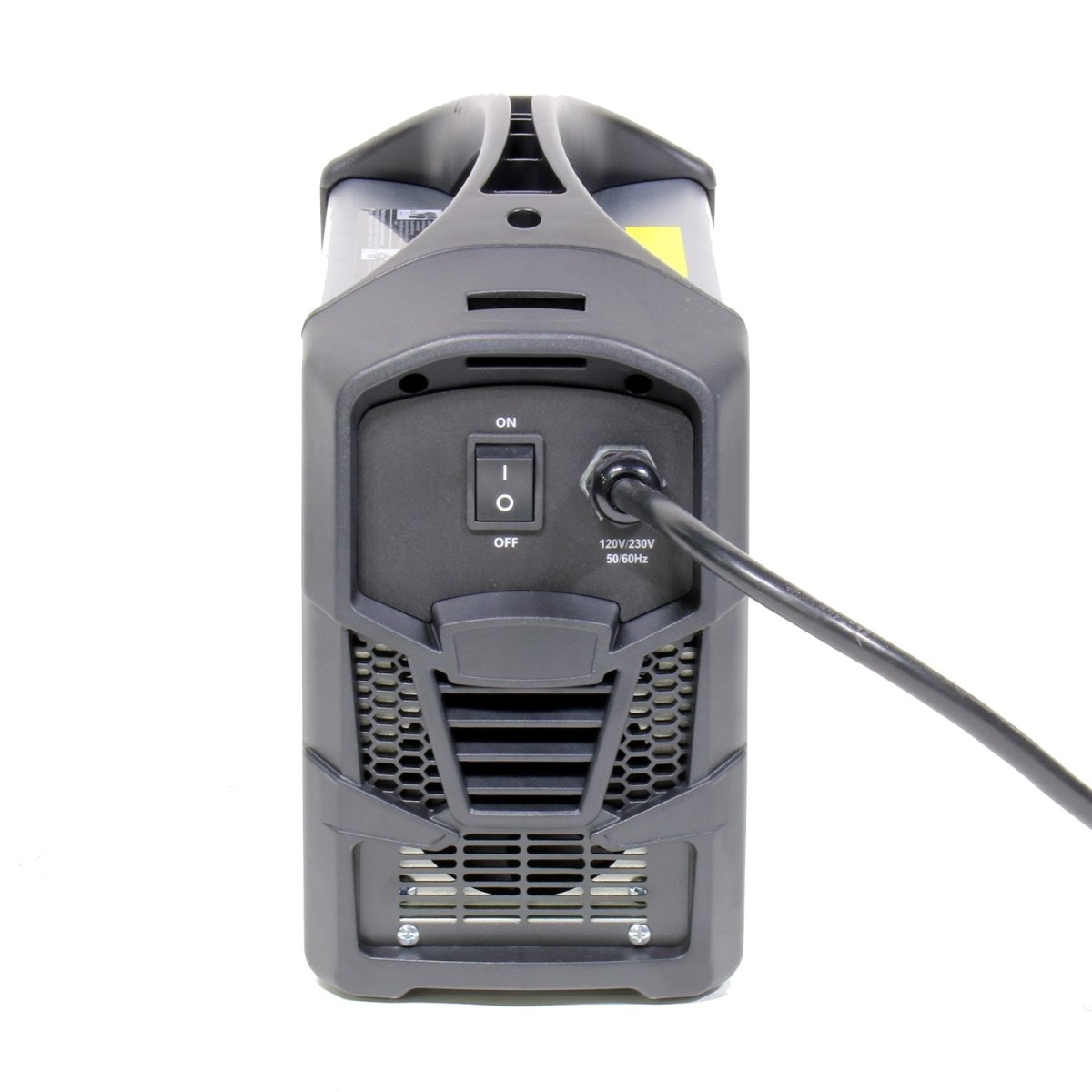

Power | Dual Voltage - 120V/230V Single Phase |
Shipping Weight | 20lbs |
Rated Input Current | 20A (120V) / 40A (230V) |
Rated Input Capacitance | 4.4KVA (120V) / 9.2KVA (230V) |
No-Load Voltage | 78V (120V) / 78V (230V) |
Rated Working Voltage | 23V (120V) / 28V (230V) |
Welding Current | 15~75A (120V) / 12~200A (230V) |
Rated Duty Cycle | 100% (120V) / 15% (230V) |
100% Rated Duty Cycle | 77A (120V) / 77A (230V) |
Efficiency | 85% |
Power Factor | .75 |
Insulation Class | H |
Enclosure Protection | IP21S |

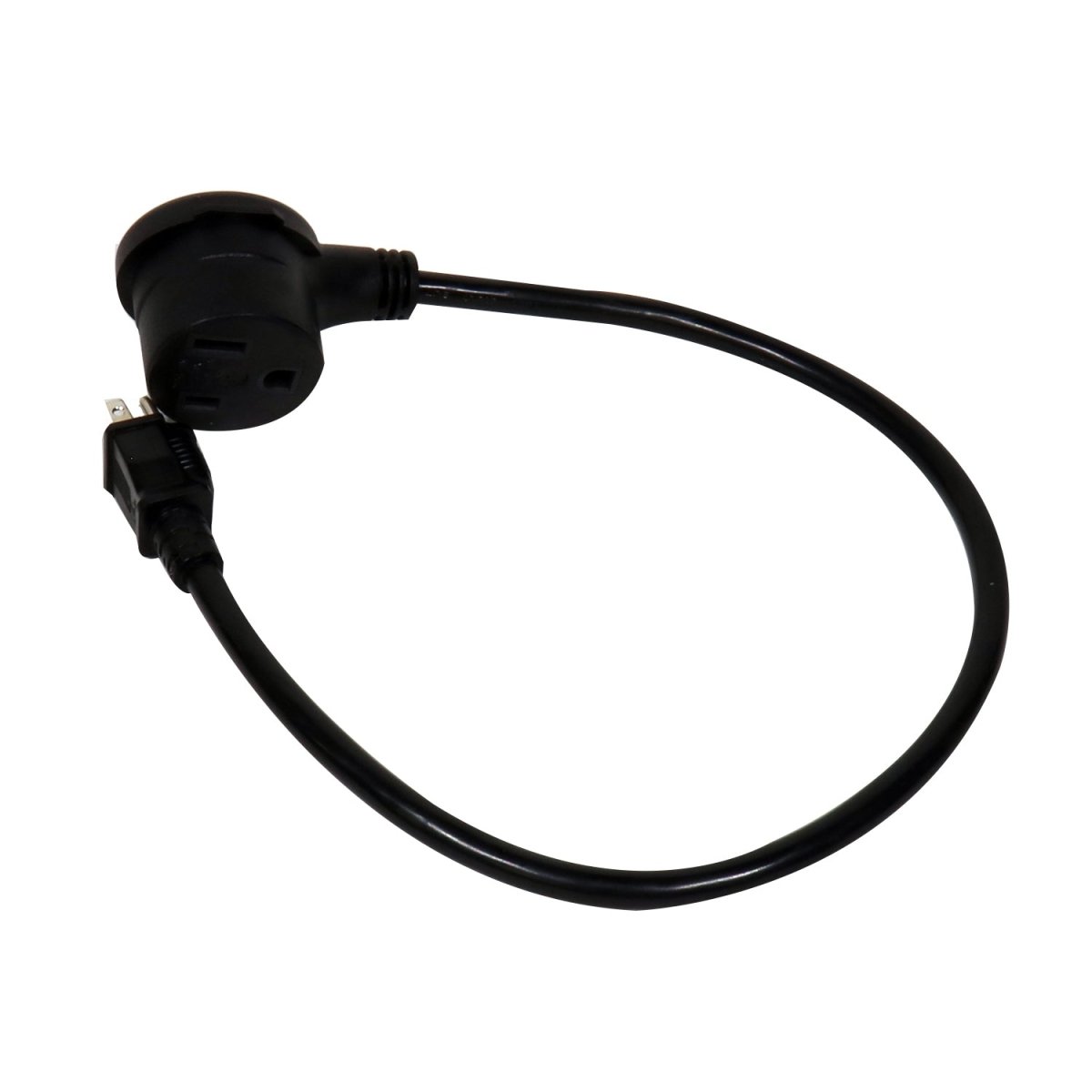

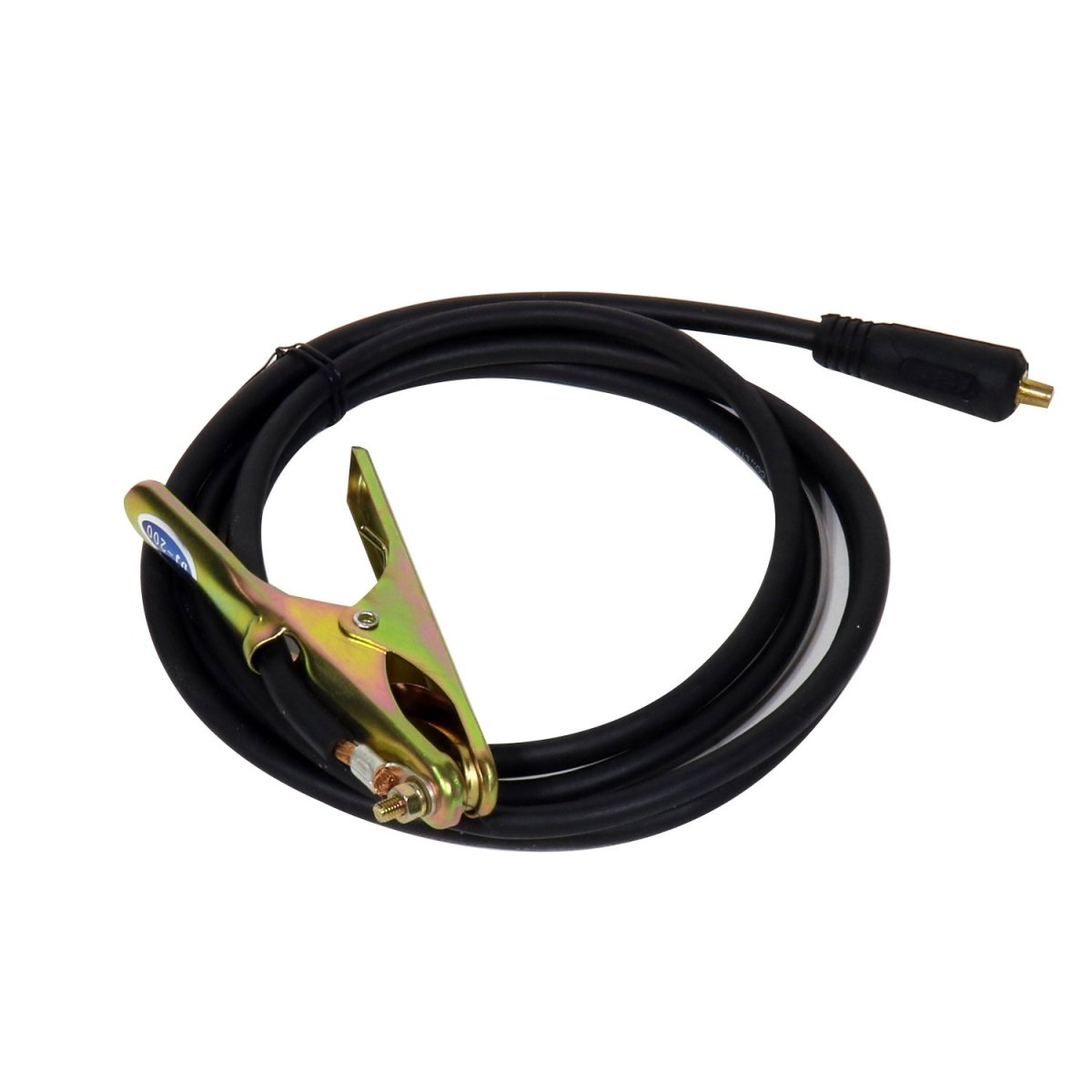

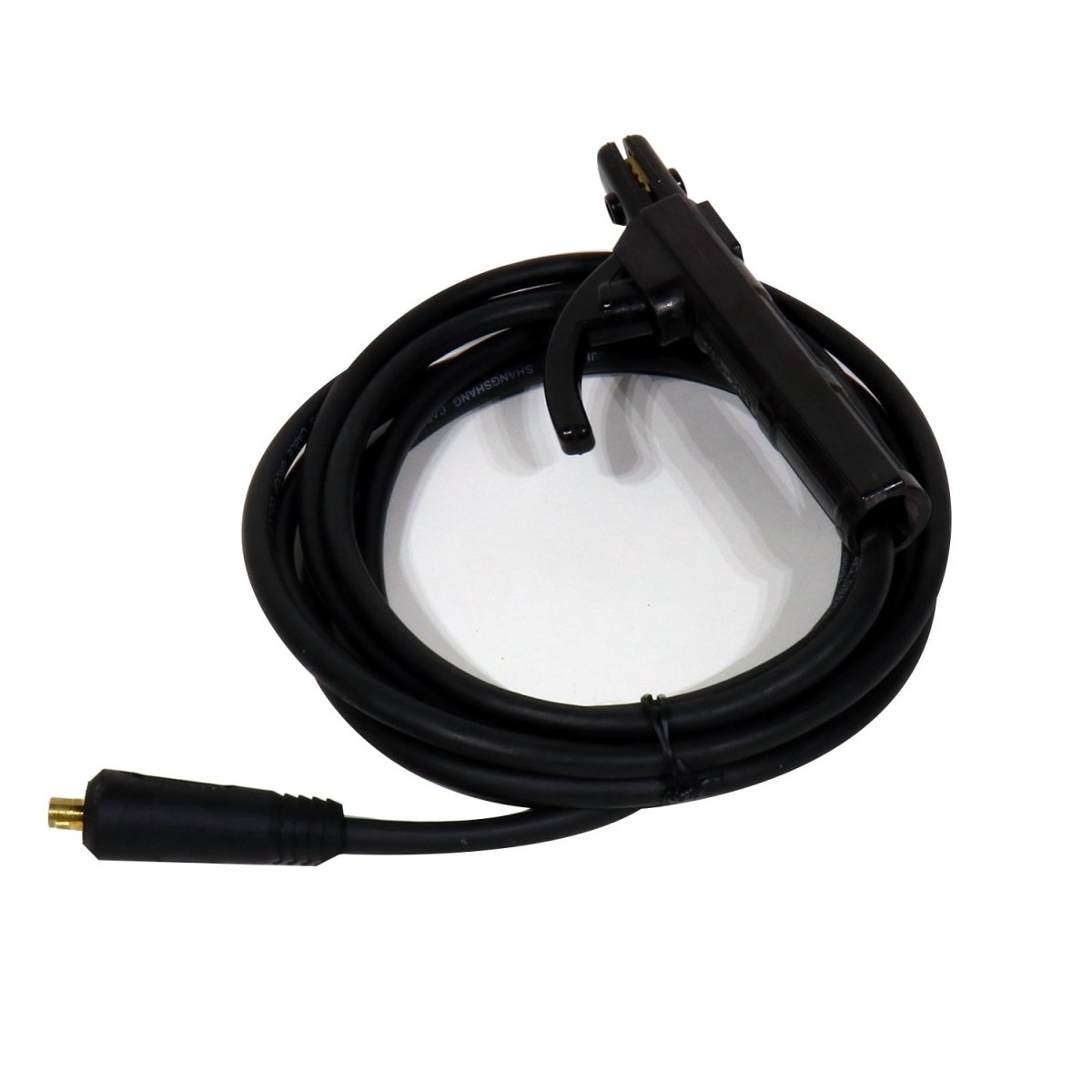

Special Notes | Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug |
Certification | CSA UL |
Shipping Dimensions (Inches) | 18x10x14 |
