Aardwolf Slab Rack Set - Premium Marble & Granite Slab Holder for Countertop Installation - Perfect for Stone Fabricators, Contractors & DIY Home Renovation Projects
$1096.15 $1993
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:66827518
Guranteed safe checkout
Product Description
Aardwolf Slab Rack Base Rails - Premium Storage for stone slabs such as marble, granite, quartz, engineered stone, and all other types of stone
can be purchased separately.

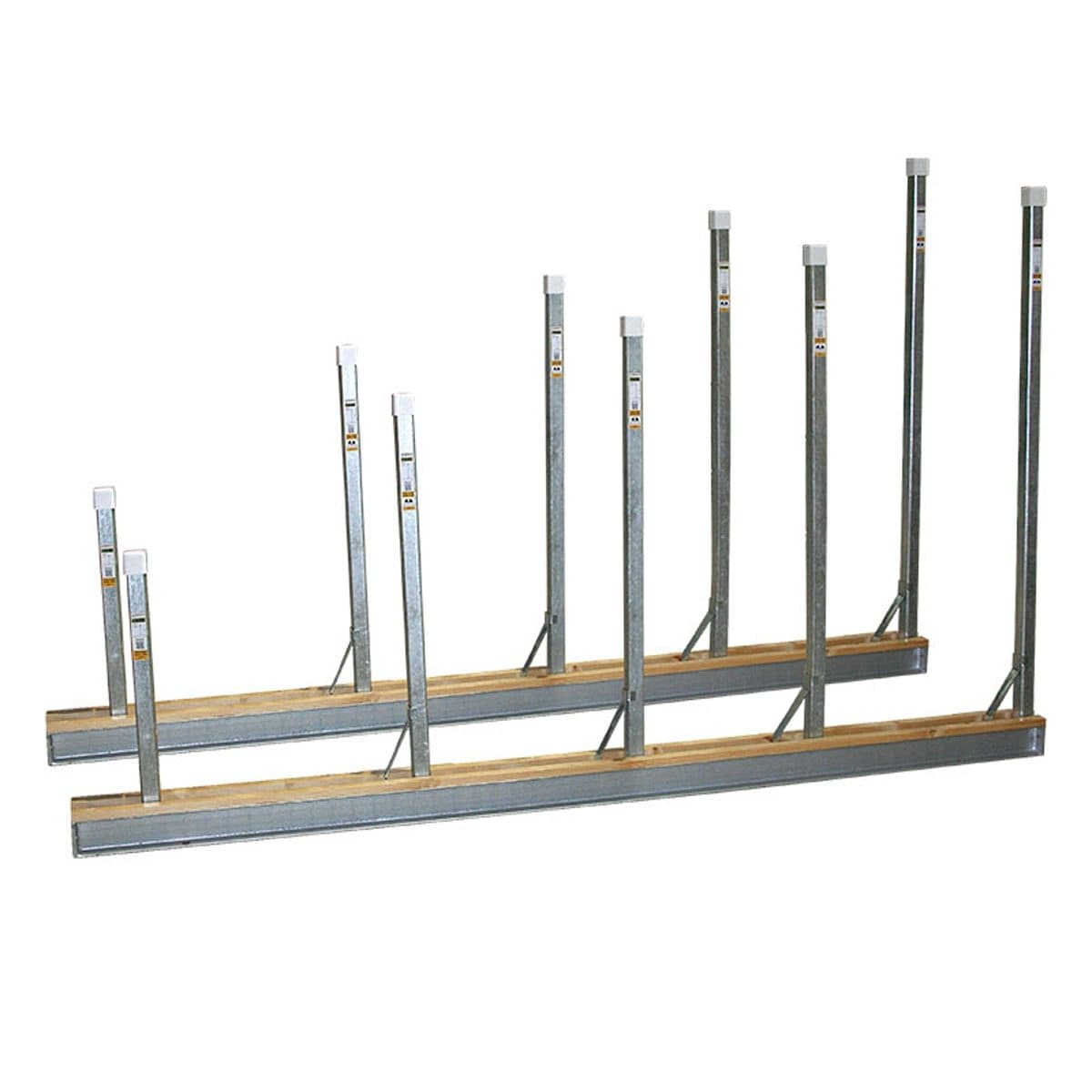

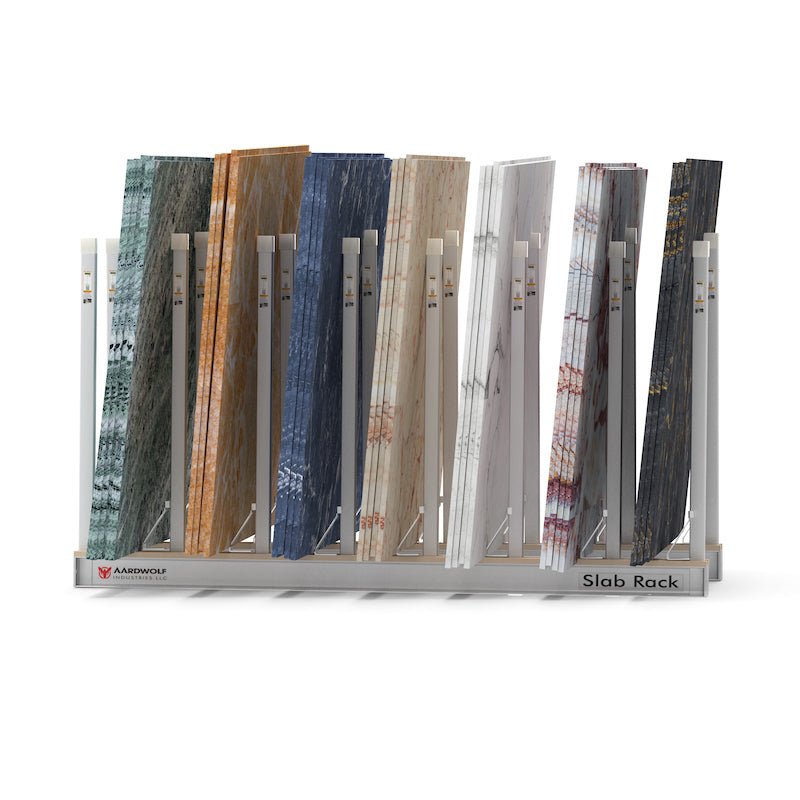

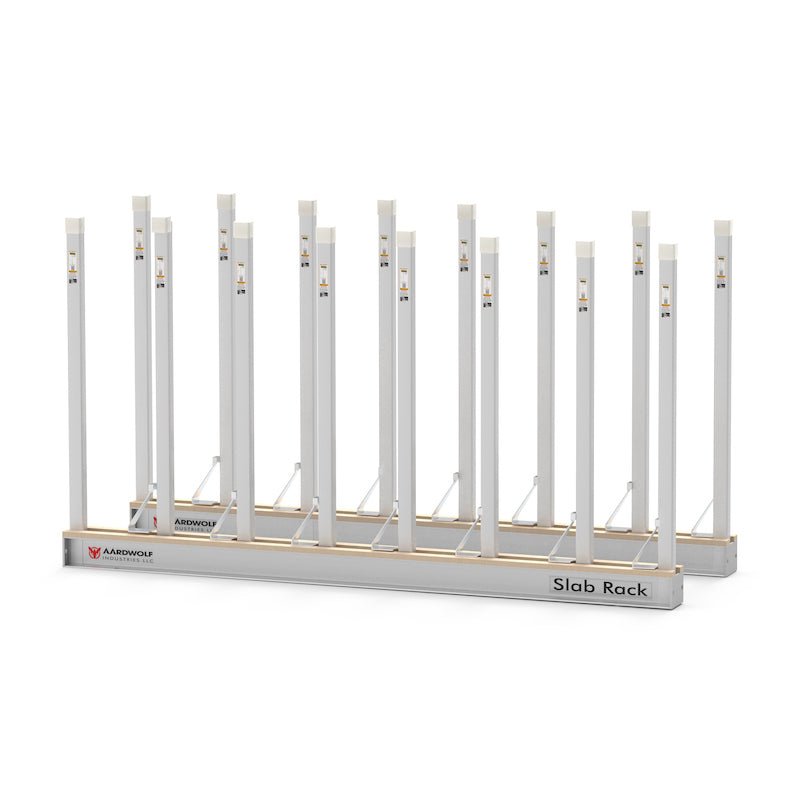

The Aardwolf Slab Rack is made for the storing stone or slabs such as marble, quartz, engineered stone, and other types of stone. The slab racks come in a pair of galvanised steel rails 3 meters long, together with square steel tube posts. with a max capacity of 10,000 LBS. The square post can be positioned anywhere along the rack. The user has a selection of two different strength posts. All post are manufactured from square tube steel with a minimum yield strength of 345 Mpa, ensuring safety for the vertical storage of slab bundles
Features
- Galvanised steel rails 5 -½ wide, 4" high and 9'10" long can be butted and bolted together for desired length.
- The center of rails has 2" square holes spaced 0.2" apart allowing for adjustment of post in 2.2" increments for maximum storage efficiency.
- The rack heights are 4 ¾" from the floor for alignment of glass or stone dolly used for transporting
- (2") square tube posts are powder-coated and topped with 2 3/8" square rubber post caps to prevent scratches to polished surfaces.
- Two ¾" x 1 -½ timber battens per rail protect the slab edges and the finish on the rails.
- Shipping weight per rail: 128 Lbs.
Note: Post available in 4 standard heights of, 31 -½, 4', 4'7", 5'3".
Storage Capacity
The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the type of post selected, the slab thickness and dimensions. Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.
Metric (mm-kg) | Imperial (inch-lbs) | |
| Galvanised steel rail | 2979x144x125 | 117.3x5.7x4.9 |
| Rack height | 125 | 4.9 |
| Saure hole | 52 | 2 |
| Increment | 55 | 2.2 |
| Square tube post | 50 | 2 |
| Thickness of all posts | 4 or 5 | 0.15 or 0.2 |
| Square rubber post | 60 | 2.4 |
| Timber battens per rail | 40x25 | 1.6x1 |
| Net weight | 50.7/PCS | 111.8 |
| Gross weight | 51 | 112.4 |
| Package dimension | 2975x145x125 | 117x5.7x4.9 |
