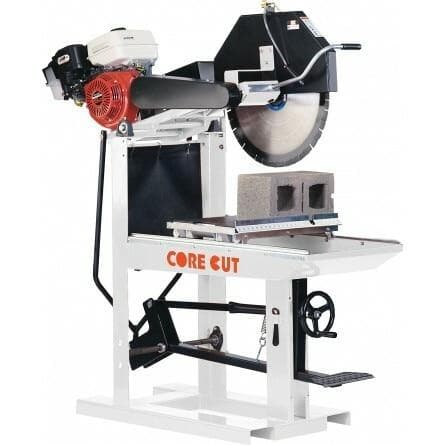

CC800M Concrete Block Saw - Heavy Duty Masonry Cutting Tool for Professional Construction & DIY Projects - Perfect for Cutting Bricks, Pavers & Concrete Blocks
$4594.48 $8353.6
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:25 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:75334177
Guranteed safe checkout
Product Description
CC800M Block Saw is a rugged saw and designed for large applications
24" Capacity
Gasoline and Electric Models
Features & Benefits:
- 24" blade cuts a 10" block in a single pass
- Variety of power options
- Stay level blade guard and enclosed blade shaft
- Replaceable cart travel rails
- Durable 3/16" steel frame
- Includes water pump
- Easy rolling 16" x 25" aluminum cutting cart/tray with vulcanized rubber coated non-slip top
- Large capacity, deep tapered water tray
- Foot pedal controlled operating head leaves the operators hands free to guide material
- Hand wheel for quick and easy blade cutting depth adjustment
- Enclosed cart wheels prevent damage
- Forklift opening for easy transport
- 2 V-belts promote efficient delivery of power to the blade
- Open back design for rip cutting longer materials
- Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times
Specifications:
| Maximum Depth of Cut: | 8" with 20" blade, 10" with 24" blade |
| Arbor Diameter: | 1" |
| Blade Shaft Bearings: | Flange block ball bearings |
| Blade Shaft Drive: | 2 premium grip notch v-belt |
| Blade Raise/Lower: | Counterbalanced, spring tensioned head pivots on two 1" flange block bearings |
| Blade Coolant: | Dual spray tubes, pump fed (elecZZic models), garden hose connection (gas models) |
| Air Filter: | 3-stage cyclone (gas models) |
| Fuel Capacitor: | 1 gallon (gas models) |
| High Temp Shut-off: | Included (elecZZic models) |
| Starter: | Recoil on gas models, capacity on electric models |
| Blade Capacity | Sawing Engine/Motor Make | Motor/Engine Power | Electric Start | Power Source | Part Number | Catalog Number |
|---|---|---|---|---|---|---|
| 20" | Baldor | 5 HP-1PH, 230V | No | Electric | 5800540 | 46820 |
| 20" | Baldor | 5 HP-3PH, 230V | No | Electric | 5800541A | 96416 |
| 20" | Baldor | 5 HP -3PH, 460V | No | Electric | 5800541B | 18533 |
| 20" | Baldor | 7.5 HP-1PH, 230V | No | Electric | 5800542 | 47664 |
| 20" | Baldor | 7.5 HP-3PH, 230V | No | Electric | 5800544A | 96015 |
| 20" | Baldor | 7.5 HP-3PH, 460V | No | Electric | 5800544B | 96336 |
| 24" | Baldor | 7.5 HP-1PH, 230V | No | Electric | 5800543 | 47630 |
| 24" | Baldor | 7.5 HP-3PH, 230V | No | Electric | 5800545A | 97240 |
| 24" | Baldor | 7.5 HP-3PH, 460V | No | Electric | 5800545B | 97000 |
| 20" | Honda® GX270 | 8 HP, 14.1 torque (lbs.-ft.) | No | Gas | 5800546 | 47024 |
| 20" | Lifan® LF177F | 9 HP | No | Gas | 5801107 | 33971 |
| 20" | Honda® GX390 | 11 HP, 19.5 torque (lbs.-ft.) | No | Gas | 5800547 | 47047 |
| 24" | Honda® GX390 | 11 HP, 19.5 torque (lbs.-ft.) | No | Gas | 5800548 | 47046 |
| 20" | Honda® GX390 | 11 HP, 19.5 torque (lbs.-ft.) | Yes | Gas | 5800566 | 60933 |
| 24" | Honda® GX390 | 11 HP, 19.5 torque (lbs.-ft.) | Yes | Gas | 5800567 | 81160 |
