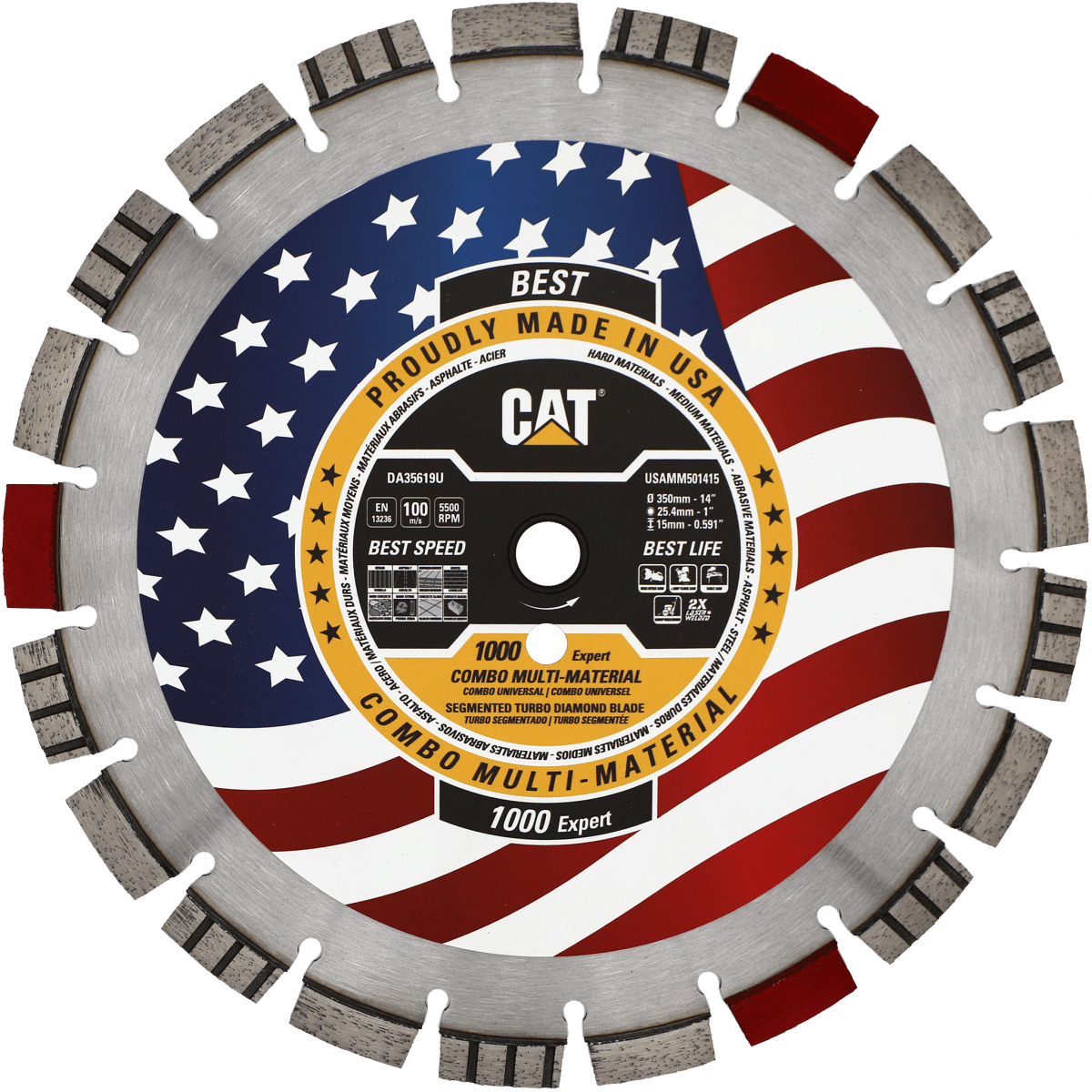

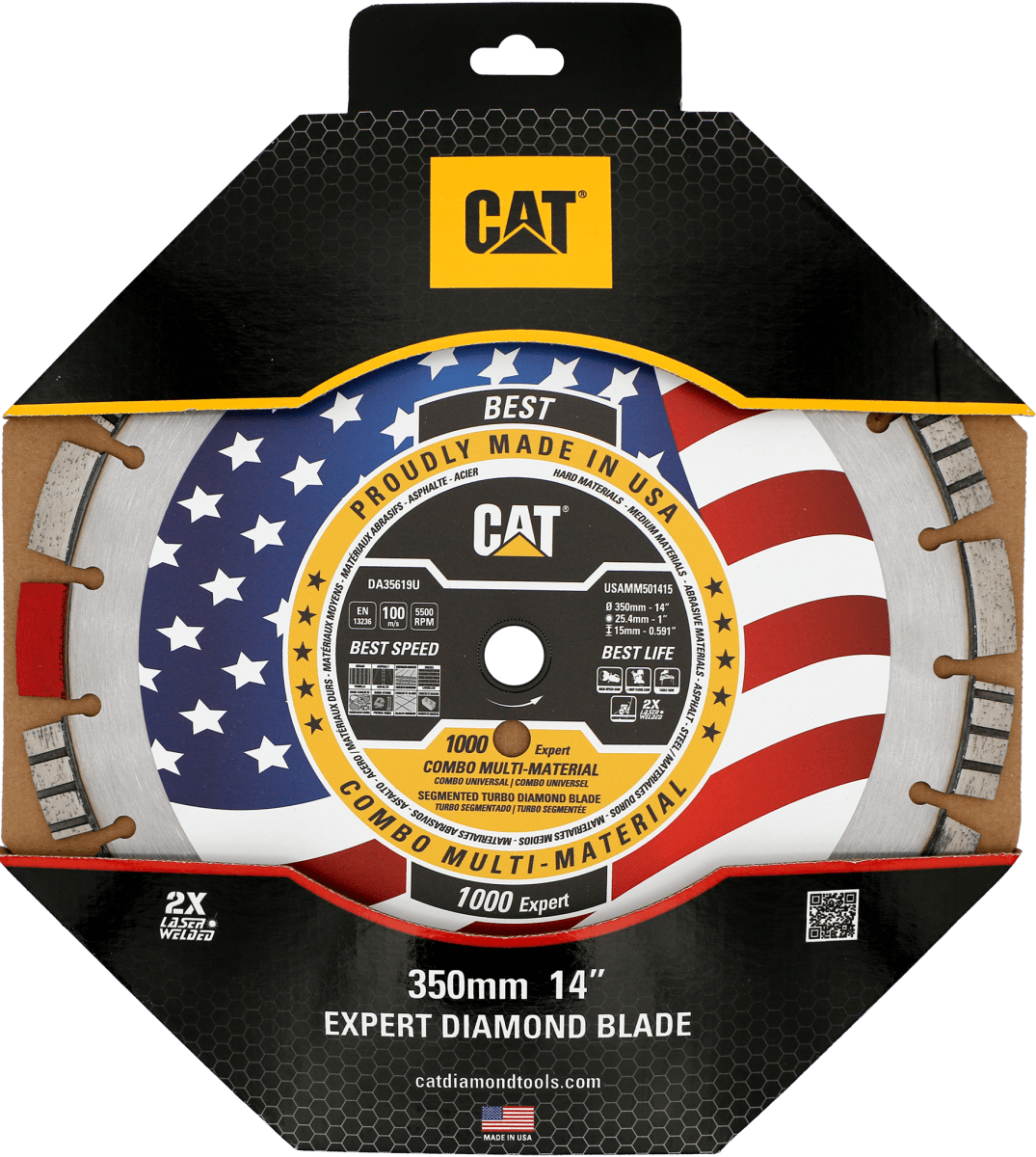

Premium Caterpillar Diamond Blade 1000 Expert - Multi-Material Cutting Disc for Concrete, Tile & Stone - Free Shipping USA - Perfect for Construction & DIY Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:80673001
Product Description
Cat® Combo Multi-Material blades are designed for intensive use across the 3 performance grades: Good, Better and Best.
This is blade has a 15mm segment height. The blade is also available in and .
A true warrior product able to cut virtually everything in its path. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Combo Multi-Material blades are able to cut a multitude of materials easily and able to cut through the hard materials including all general purpose, abrasive and asphalt applications including items such as steel rebar. Each increase in performance rating increases the speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.
ATTRIBUTES
- Ultra-High Diamond Concentration & Diamond Quality

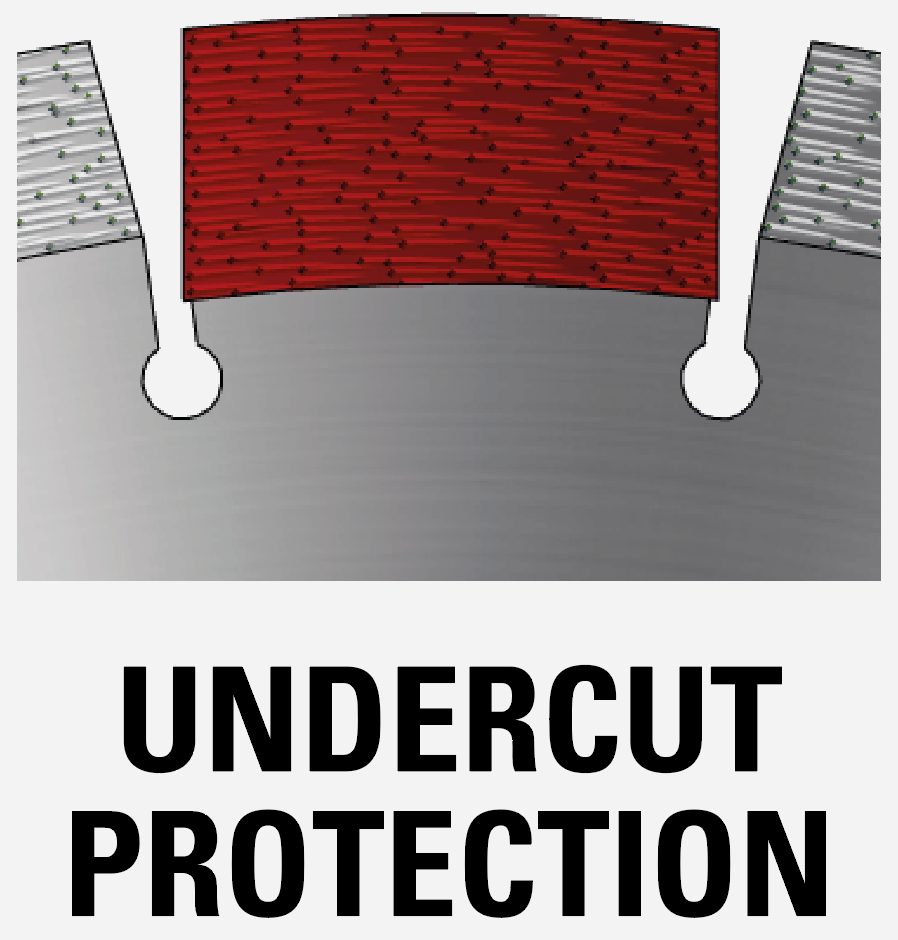

- Undercut Protection Segments to Clear Debris
- Fully Hardened & Heat-Treated Steel Core
- Ultra Long Life & Speed of Cut, Widest Application Span
- Ultimate Diamond Quality & Bond Formulation
- 2X Laser Welded for Safety & Stability of Segments
- Unique Turbo Alternate Standard Segment Design for Aggressive Cutting Action
- Keyhole Gullet Design for Dust Extraction from Cut.
- APPLICATION
Steel Rebar & Box Sections, Ductile Iron, Heavily Steel Reinforced Concrete, Critically Hard Aggregate Concrete (Flint, Chert), Hard To Medium Aggregate Concrete (Chert - Trap Rock - River Gravel), Medium Aggregate Concrete (Traprock - Quartz), Soft - Medium Aggregate Concrete (Granite - Limestone), Class A Engineering Brick 125 N/Mm2, Refractory Brick, Clay Pipe - Roof Tiles, Clay Pavers, Terracotta, Indian Stone (Kota), Travertine, Porphyry, Class B Engineering Brick 75N/Mm2, Basalt, Hard Limestone, Limestone Aggregate Concrete, Lightly Reinforced Concrete, Concrete Pavers - Curbs - Slabs, Concrete Roof Tiles - Pipes, Hard Facing Brick, Medium Facing Brick, Medium Facing Brick, Concrete Blocks Over 15N/Mm2, Hard Slate, Hard Sandstone (Fine Grit), Medium Sandstone (Medium Grit).
Aluminum, Granite, Quartzite, Quarry Tiles, Soft Facing Bricks, Soft Slate, Marble, Soft Sandstone (Coarse Grit), Concrete Screed, Plaster - Grout, Asphalt Over Concrete, Asphalt, Concrete Block Under 15N/Mm2, Thermal Block 7 N/Mm2, Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate, Green Concrete With Medium Soft Aggregate, Lignacite Blocks, Lava Rock, Pumice.
Key
Correct Bond for Application Optimal Performance, Speed & Life
Good Match Bond for Application Excellent Performance Speed & Life
Acceptable Bond for Application Reduced Performance, Speed & Life
Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur
| PRODUCT TYPE | DIAMETER | SEGMENT HEIGHT | SEGMENT WIDTH | MAIN ARBOR - BORE | REDUCING RINGS INCLUDED | MACHINES USED | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART NO | CODE NO | MM | INCH | MM | INCH | MM | INCH | MM | INCH | MM | INCH | |
| DA35618U | USAMM501215 | 300 | 12 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 |      |
| DA35619U | USAMM501415 | 350 | 14 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA35620U | USAMM501615 | 400 | 16 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
| DA35621U | USAMM501815 | 450 | 18 | 15 | 0.591 | 3.175 | 0.125 | 25.4+P | 1+P | 20MM | 0.78 | |
Available in USA, non-oSa accredited.
