Diamond Blade for Cutting Abrasive Materials - Pro 600 Cat Model | Free Shipping | Perfect for Tile, Concrete & Masonry Work

Product Description

Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials.

Cat® Asphalt / Abrasive blades are designed for intensive use across the 3 performance grades: Good, Better and Best. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life.  Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.

ATTRIBUTES

• High Diamond Concentration & Diamond Quality

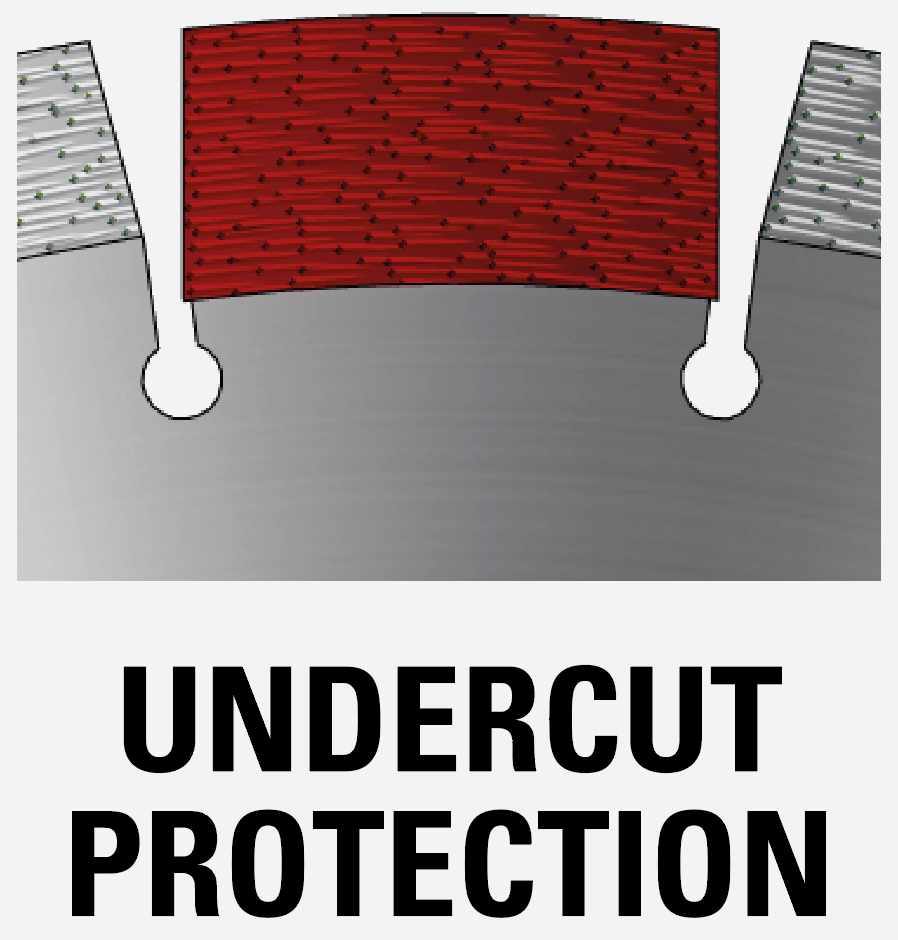

• Undercut Protection Segments To Clear Debris
• Fully Hardened & Heat Treated Steel Core
• Long Life, Good Speed Of Cut, Widest Application Span
• Above Industry Standard Diamond Quality & Bond Formulation
• 2X Laser Welded For Safety & Stability Of Segments
• Keyhole Gullet Design For Dust Extraction From Cut.

APPLICATION

 Asphalt, Concrete Block Under 15N/Mm², Thermal Block 7 N/Mm², Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate.

 Lignacite Blocks, Lava Rock, Pumice

 Asphalt Over Concrete.

 Soft Facing Bricks

 Correct Bond For Application Optimal Performance, Speed & Life

 Good Match Bond For Application Excellent Performance Speed & Life

 Acceptable Bond For Application Reduced Performance, Speed & Life

 Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur

PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED		MACHINES USED
PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
DA33622U	USAAM801210	300	12	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
DA33623U	USAAM801410	350	14	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
DA33624U	USAAM801610	400	16	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
DA33625U	USAAM801810	450	18	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78

Available in USA, non-oSa accredited.
