Product Description
Digga's range of drilling augers for 4.5-12T excavators & backhoes, and truck cranes & telehandlers are the ultimate in performance, quality and cost effectiveness.
Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control. Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.
Available in Single Speed, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.

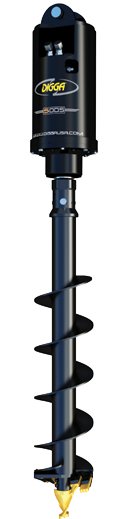

Single Speed Auger Drive Features:- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
- 2 piece shaft design ensures maximum side load ratings without increasing load on bearings
- Single speed & two speed models available
- Lifetime shaft pull out warranty
- 5 year gearbox and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
| Single Speed Specs | 5DDS | 6DDS | 7DDS | 9DDS | 12DDS |
|---|---|---|---|---|---|
| Torque (FT-LBS @ 3000 PSI) | 3,903 | 4,909 | 6,162 | 7,811 | 9,893 |
| Max Torque (FT-LBS @ 3500 PSI) | 4,553 | 5,728 | 7,189 | 9,112 | 11,542 |
| Recommended Flow (GPM) | 10-36 | 12-36 | 14-36 | 18-48 | 22-48 |
| Motor Type | Eaton | Eaton | Eaton | Eaton | Eaton |
| Max Pressure (Do Not Exceed) | 3500 PSI @ 27 GPM | 3500 PSI @ 29 GPM | |||
| Max Flow (Do Not Exceed) | 55 GPM @ 1700 PSI | 55 GPM @ 1800 PSI | |||
| Max Horse Power | 55 | 55 | 55 | 60 | 60 |
| Pressure Relief Valve | Included | Included | Included | Included | Included |
| Standard Output Shaft | 2.5" Hex | 2.5" Hex | 2.5" Hex | 2.5" Hex | 2.5" Hex |
| Halo | Optional | Optional | Optional | Optional | Optional |
| Recommended Auger | / | / | / | / | / |
| Max Drilling Diameter (Clay / Shale)¹ | 24" | 30" | 30" | 48" | 36" |
| Max Drilling Diameter (Earth)¹ | 40" | 40" | 48" | 48" | 48" |
| Weight (lbs.) | 290 | 290 | 290 | 350 | 350 |
| Overall Length (in.) | 33.7" | 33.7" | 33.7" | 37.2" | 37.2" |
| Diameter (in.) | 11.4" | 11.4" | 11.4" | 11.4" | 11.4" |
| Single Speed Output | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5DDS | 6DDS | 7DDS | 9DDS | 12DDS | |||||||||||||||
| OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | ||||||||||
| GPM | RPM | PSI | FT-LBS | GPM | RPM | PSI | FT-LBS | GPM | RPM | PSI | FT-LBS | GPM | RPM | PSI | FT-LBS | GPM | RPM | PSI | FT-LBS |
| 10 | 24 | 1,500 | 1,951 | 12 | 22 | 1,500 | 2,455 | 14 | 21 | 1,500 | 3,081 | 18 | 21 | 1,500 | 3,905 | 22 | 20 | 1,500 | 4,947 |
| 14 | 33 | 1,700 | 2,212 | 16 | 30 | 1,700 | 2,782 | 18 | 27 | 1,700 | 3,492 | 22 | 26 | 1,700 | 4,426 | 26 | 24 | 1,700 | 5,606 |
| 18 | 42 | 1,900 | 2,472 | 20 | 37 | 1,900 | 3,109 | 22 | 33 | 1,900 | 3,903 | 26 | 31 | 1,900 | 4,947 | 30 | 28 | 1,900 | 6,266 |
| 22 | 52 | 2,100 | 2,732 | 24 | 45 | 2,100 | 3,437 | 26 | 39 | 2,100 | 4,314 | 30 | 35 | 2,100 | 5,467 | 34 | 32 | 2,100 | 6,925 |
| 26 | 61 | 2,300 | 2,992 | 28 | 52 | 2,300 | 3,764 | 30 | 45 | 2,300 | 4,725 | 34 | 40 | 2,300 | 5,988 | 38 | 35 | 2,300 | 7,585 |
| 30 | 71 | 2,500 | 3,252 | 32 | 60 | 2,500 | 4,091 | 34 | 51 | 2,500 | 5,135 | 38 | 45 | 2,500 | 6,509 | 42 | 39 | 2,500 | 8,244 |
| 34 | 80 | 2,700 | 3,513 | 36 | 67 | 2,700 | 4,418 | 36 | 54 | 2,700 | 5,546 | 42 | 49 | 2,700 | 7,029 | 46 | 43 | 2,700 | 8,904 |
| 36 | 85 | 2,900 | 3,773 | 2,900 | 4,746 | 2,900 | 5,957 | 46 | 54 | 2,900 | 7,550 | 48 | 45 | 2,900 | 9,564 | ||||
| 3,200 | 4,033 | 3,200 | 5,073 | 3,200 | 6,368 | 48 | 57 | 3,200 | 8,071 | 3,200 | 10,223 | ||||||||
| 3,300 | 4,293 | 3,300 | 5,400 | 3,300 | 6,779 | 3,300 | 8,592 | 3,300 | 10,883 | ||||||||||
| 3,500 | 4,553 | 3,500 | 5,728 | 3,500 | 7,189 | 3,500 | 9,112 | 3,500 | 11,542 | ||||||||||
Digga's 2-Speed Drilling Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 10 - 48gpm. We distribute our 2-Speed Drilling Augers throughout North America.
2-Speed Auger Drive Features:- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton VIS motor
- Integrated PRV (Pressure Relief Valve)
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- 5 year gearbox and 3 year motor warranty
- Low maintenance

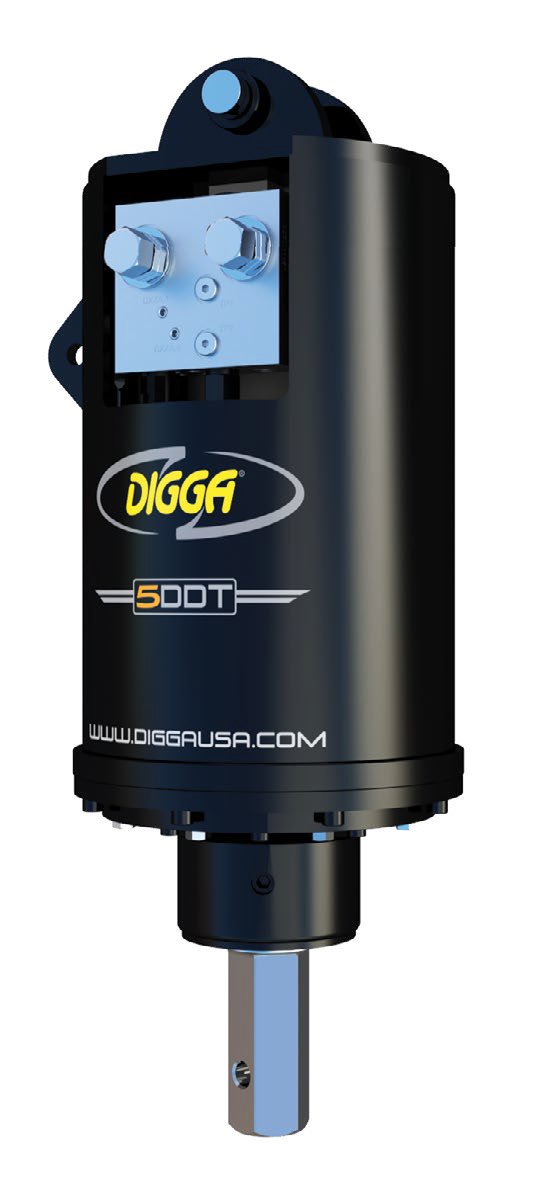

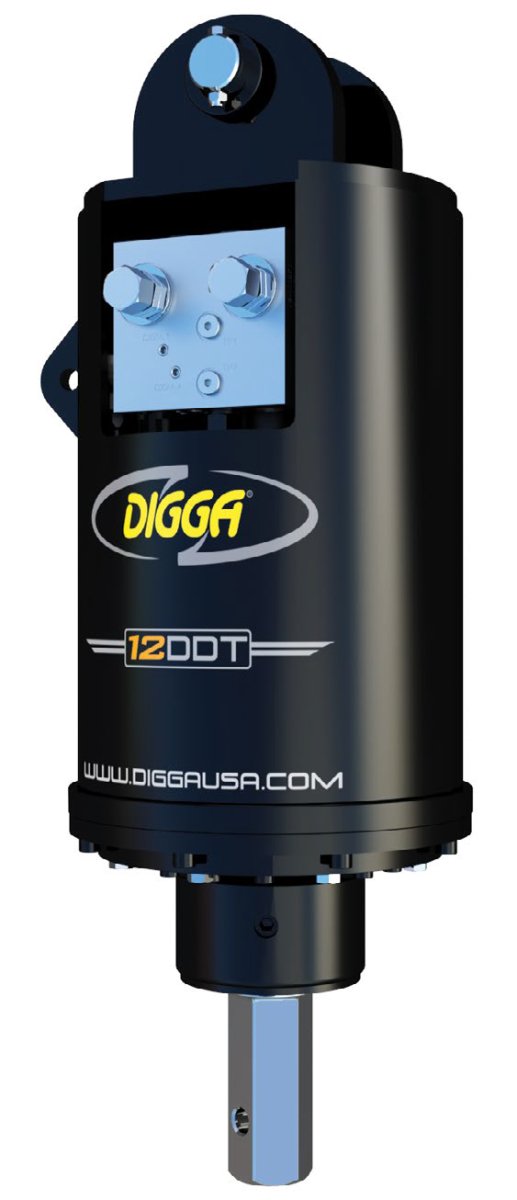

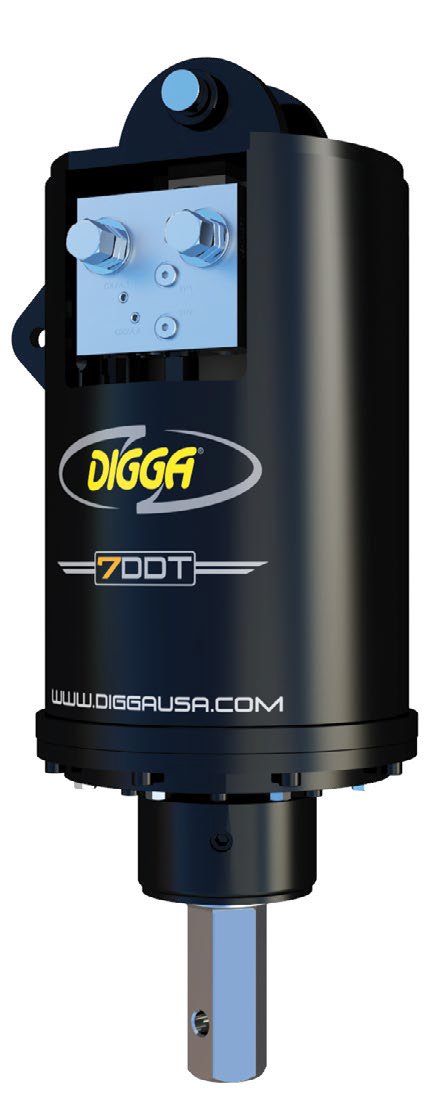

| 2-Speed Specs | 5DDT | 6DDT | 7DDT | 12DDT |
|---|---|---|---|---|
| Torque (FT-LBS @ 3000 PSI) | 4,067 | 5,012 | 6,306 | 10,310 |
| Max Torque (FT-LBS @ 3500 PSI) | 4,745 | 5,847 | 7,357 | 12,028 |
| Recommended Flow (GPM) | 10-36 | 10-36 | 10-36 | 10-46 |
| Motor Type | Eaton | Eaton | Eaton | Eaton |
| Max Pressure (Do Not Exceed) | 3500 PSI @ 27 GPM | 3500 PSI @ 29 GPM | ||
| Max Flow (Do Not Exceed) | 53 GPM @ 1800 PSI | 53 GPM @ 1950 PSI | ||
| Max Horse Power | 55 | 55 | 55 | 60 |
| Pressure Relief Valve | Included | Included | Included | Included |
| Standard Output Shaft | 2.5" Hex | 2.5" Hex | 2.5" Hex | 2.5" Hex |
| Recommended Auger | A6 / RC6 | A6 / RC6 | A6 / RC6 | A8 / RC8 |
| Max Drilling Diameter (Clay / Shale)¹ | 24" | 30" | 30" | 36" |
| Max Drilling Diameter (Earth)¹ | 40" | 40" | 48" | 48" |
| Weight (lbs.) | 350 | 350 | 350 | 376 |
| Overall Length (in.) | 34.4" | 34.4" | 34.4" | 35.7" |
| Diameter (in.) | 14.4" | 14.4" | 14.4" | 14.4" |
| 2-Speed Output | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5DDT | 6DDT | 7DDT | 12DDT | ||||||||||||||||||||
| OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | ||||||||||||||||
| GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED |
| 10 | 23 | 34 | 1,000 | 1,356 | 895 | 10 | 18 | 28 | 1,000 | 1,671 | 1,103 | 10 | 15 | 22 | 1,000 | 2,102 | 1,387 | 10 | 9 | 14 | 1,000 | 3,437 | 2,268 |
| 20 | 45 | 69 | 1,500 | 2,034 | 1,342 | 20 | 37 | 56 | 1,500 | 2,506 | 1,654 | 20 | 29 | 44 | 1,500 | 3,153 | 2,081 | 20 | 18 | 27 | 1,500 | 5,155 | 3,402 |
| 30 | 68 | 103 | 2,000 | 2,711 | 1,790 | 30 | 55 | 83 | 2,000 | 3,341 | 2,205 | 30 | 44 | 56 | 2,000 | 4,204 | 2,775 | 30 | 27 | 41 | 2,000 | 6,873 | 4,536 |
| 36 | 81 | 123 | 2,500 | 3,389 | 2,237 | 36 | 66 | 100 | 2,500 | 4,177 | 2,757 | 36 | 52 | 80 | 2,500 | 5,255 | 3,468 | 40 | 36 | 54 | 2,500 | 8,592 | 5,670 |
| 3,000 | 4,067 | 2,684 | 3,000 | 5,012 | 3,308 | 3,000 | 6,306 | 4,162 | 46 | 41 | 62 | 3,000 | 10,310 | 6,805 | |||||||||
| 3,500 | 4,745 | 3,132 | 3,500 | 5,847 | 3,859 | 3,500 | 7,357 | 4,856 | 3,500 | 12,028 | 7,939 | ||||||||||||
