Cat® 800 Expert Diamond Blade - Premium General Purpose Cutting Disc for Concrete, Brick & Tile - Free Shipping - Perfect for Construction, Masonry & DIY Home Projects

Product Description

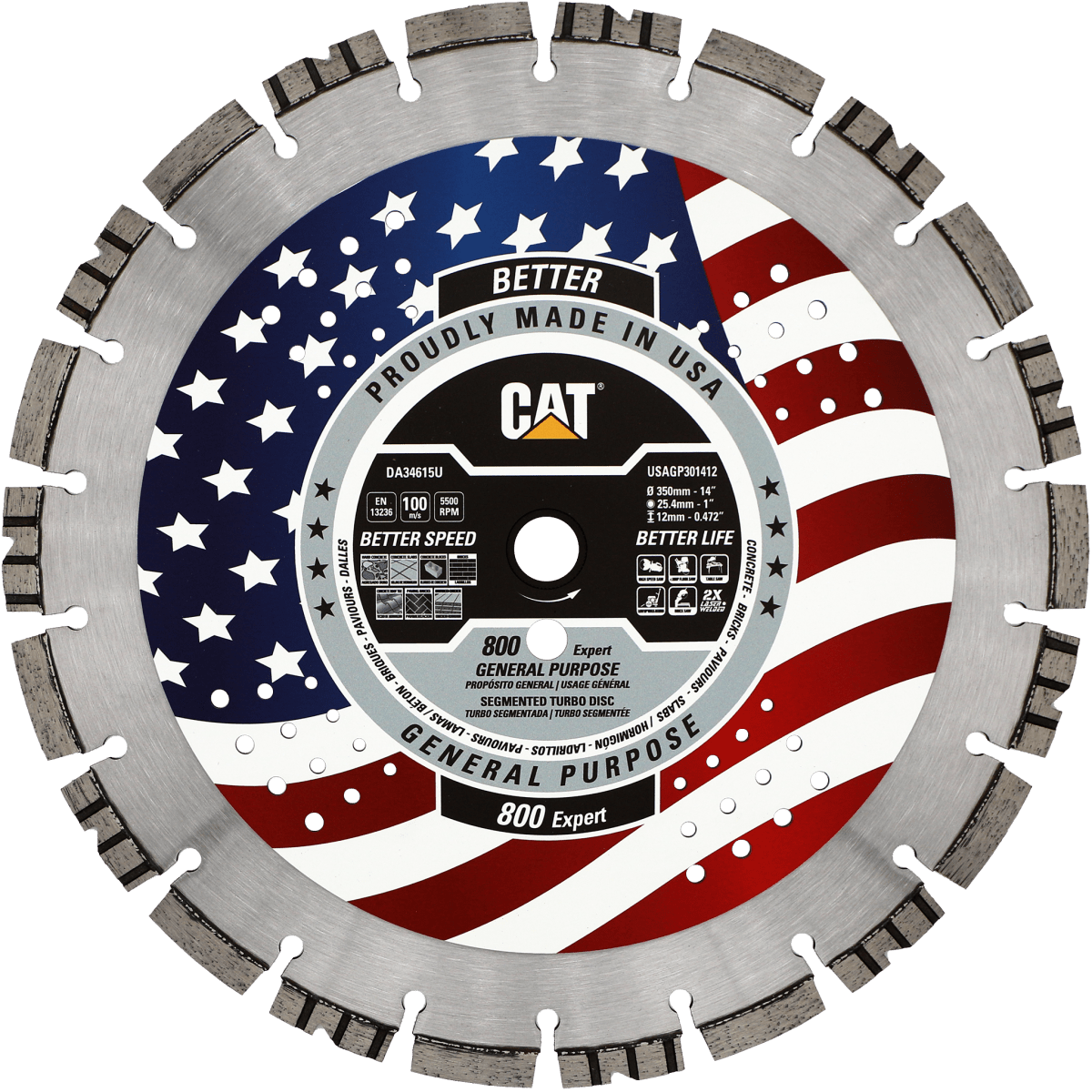

Cat 800 Expert General Purpose Diamond Blade designed for cutting general concrete with medium hardness

Cat® General Purpose blades are designed for intensive use across the 3 performance grades: Good, Better and Best.

Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that has been proven to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® General Purpose blades are able to cut a wide span of applications and a multitude of materials. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height.

ATTRIBUTES

• SUPERIOR DIAMOND QUALITY & BOND FORMULATION
• VERY LONG LIFE & SPEED OF CUT
• FULLY HARDENED & HEAT TREATED STEEL CORE
• VENTED COOLING HOLES FOR RAPID HEAT DISPERSION
• 2X LASER WELDED FOR SAFETY & STABILITY OF SEGMENTS
• UNIQUE TURBO SEGMENT DESIGN FOR AGGRESSIVE CUTTING ACTION
• UNIQUE V TURBO DESIGN CLEARS ABRASIVE FINES FROM THE CUT & GENERATES LESS FRICTION
• KEYHOLE GULLET DESIGN FOR DUST EXTRACTION FROM CUT

PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED		MACHINES USED
PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
DA34614U	USAGP301212	300	12	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34615U	USAGP301412	350	14	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34616U	USAGP301612	400	16	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34617U	USAGP301812	450	18	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78

Available in USA, non-oSa accredited.

APPLICATION
