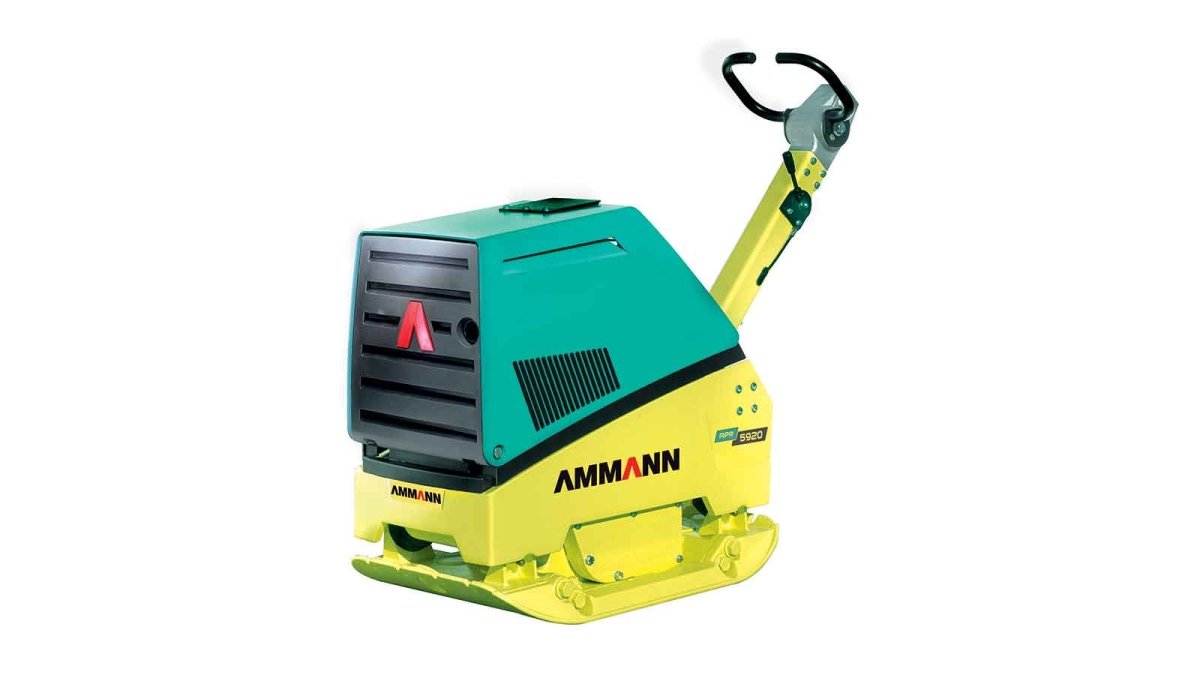

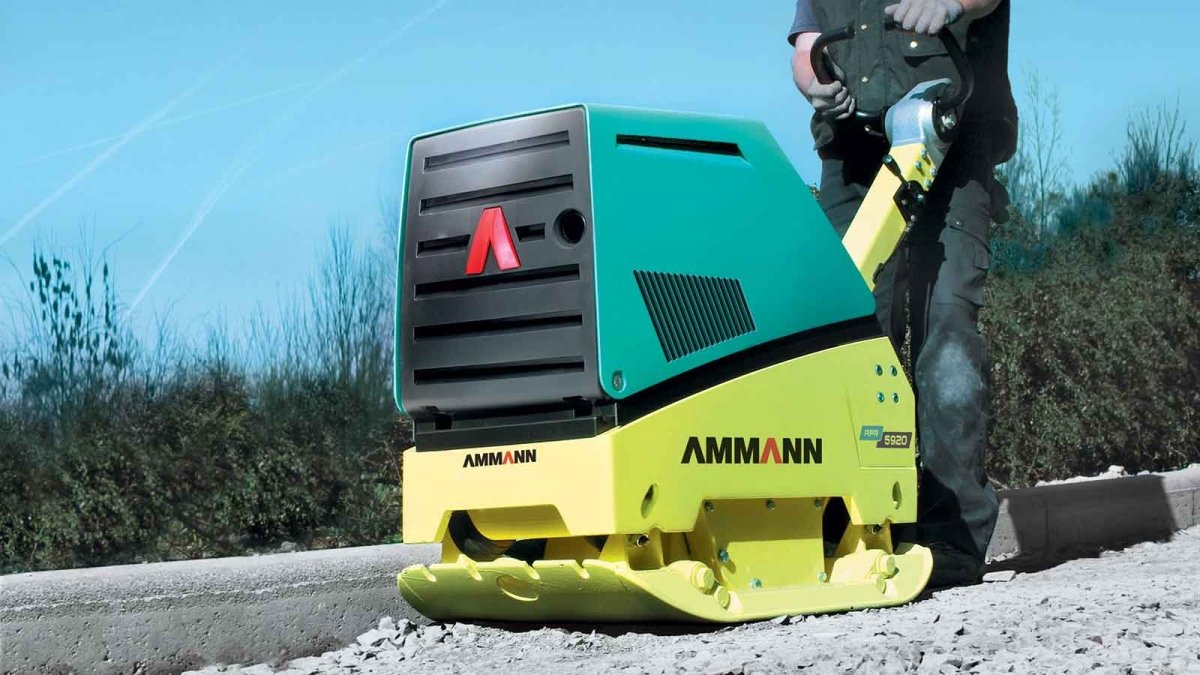

High-performance diesel engines power the machines. The variable forward and reverse motion helps the vibratory plates overcome particularly difficult spots in hard-to-reach places.

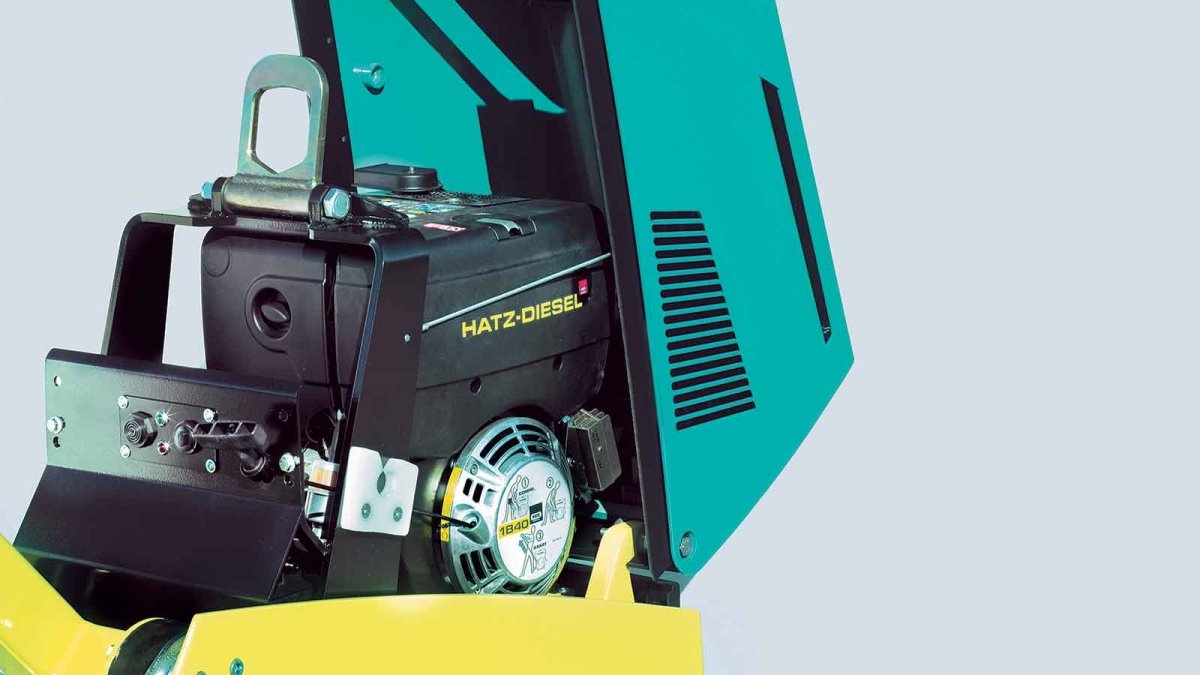

At 440 kg, it is the heaviest of the APR vibratory plates. Its engine provides 6,6 kw of power and the machines delivers 59 kN of centrifugal force. The engine hood is durable and protective but also grants great accessibility for servicing.
Optional extensions of 75 mm and 150 mm can further improve productivity.
Overview
WEIGHT & DIMENSIONS | |
---|---|
MACHINE WEIGHT | 440 kg |
WITH EXTENSION PLATES 75 mm (3.0 in) | 462 kg |
WITH EXTENSION PLATES 150 mm (5.9 in) | 473 kg |
A = BASE PLATE LENGTH | 450 mm |
B = MACHINE LENGTH | 898 mm |
C = WITH HANDLE | 1453 mm |
D = MACHINE HEIGHT | 850 mm |
E = HANDLE HEIGHT (WORK) | 1000 mm |
F = HANDLE HEIGHT (TRANSPORT) | 1285 mm |
G = MACHINE WIDTH | 450 mm |
ENGINE | |
---|---|
ENGINE | Hatz 1B40 |
FUEL | Diesel |
ENGINE OUTPUT | 6.6 kW (8.8 HP) |
AT RPM | 2900 |
FUEL CONSUMPTION | 1.6 l/h |
COMPACTION FORCES | |
---|---|
MAX. VIBRATION FREQUENCY | 65 Hz |
MAX. CENTRIFUGAL FORCE | 59 kN |
WORKING SURFACE | 945 m²/h |
WITH EXTENSION PLATES 3.0 in (75 mm) | 1260 m²/h |
WITH EXTENSION PLATES 5.9 in (150 mm) | 1575 m²/h |
MISCELLANEOUS | |
---|---|
SPEED | 35 m/min |
FUEL TANK | 5 l |
GRADEABILITY | 30 % |
MAX. INCLINE ON ALL SIDES | 25 ° |
