3 in 1 Shear Brake Roll Machine SBR 4020 - Metal Bending, Cutting & Rolling Tool for DIY Projects and Metal Fabrication | Perfect for Home Workshops and Professional Metalworking

Product Description

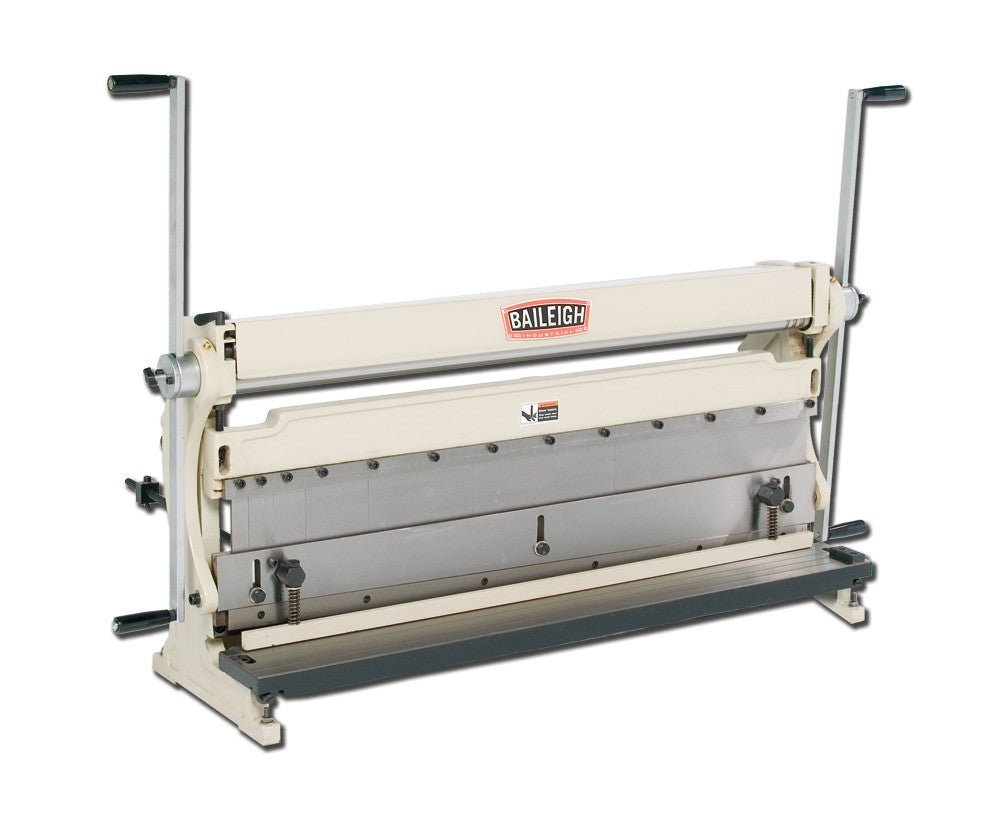

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price!

• 40” working width for rolling, bending, and shearing.
• Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.

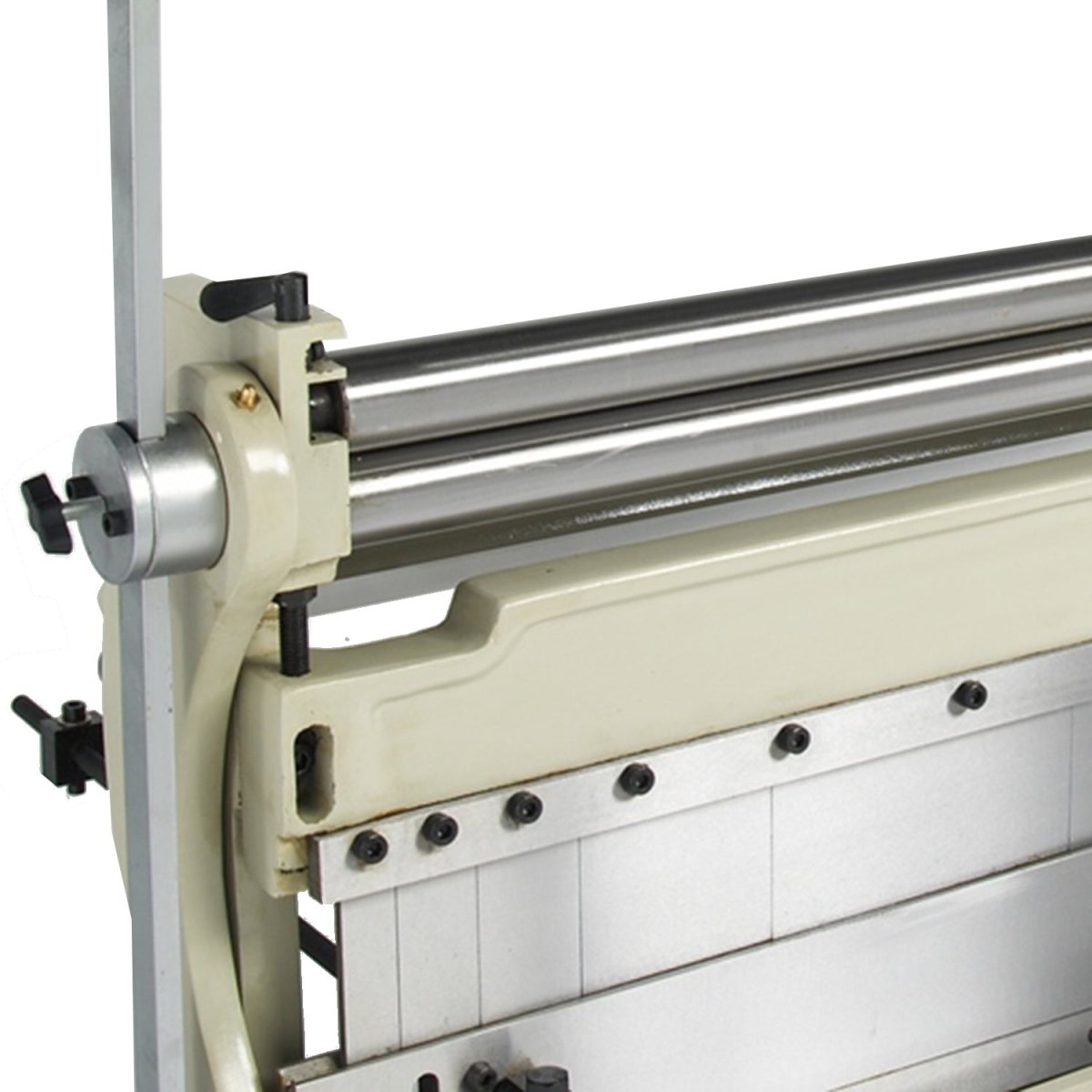

• Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.

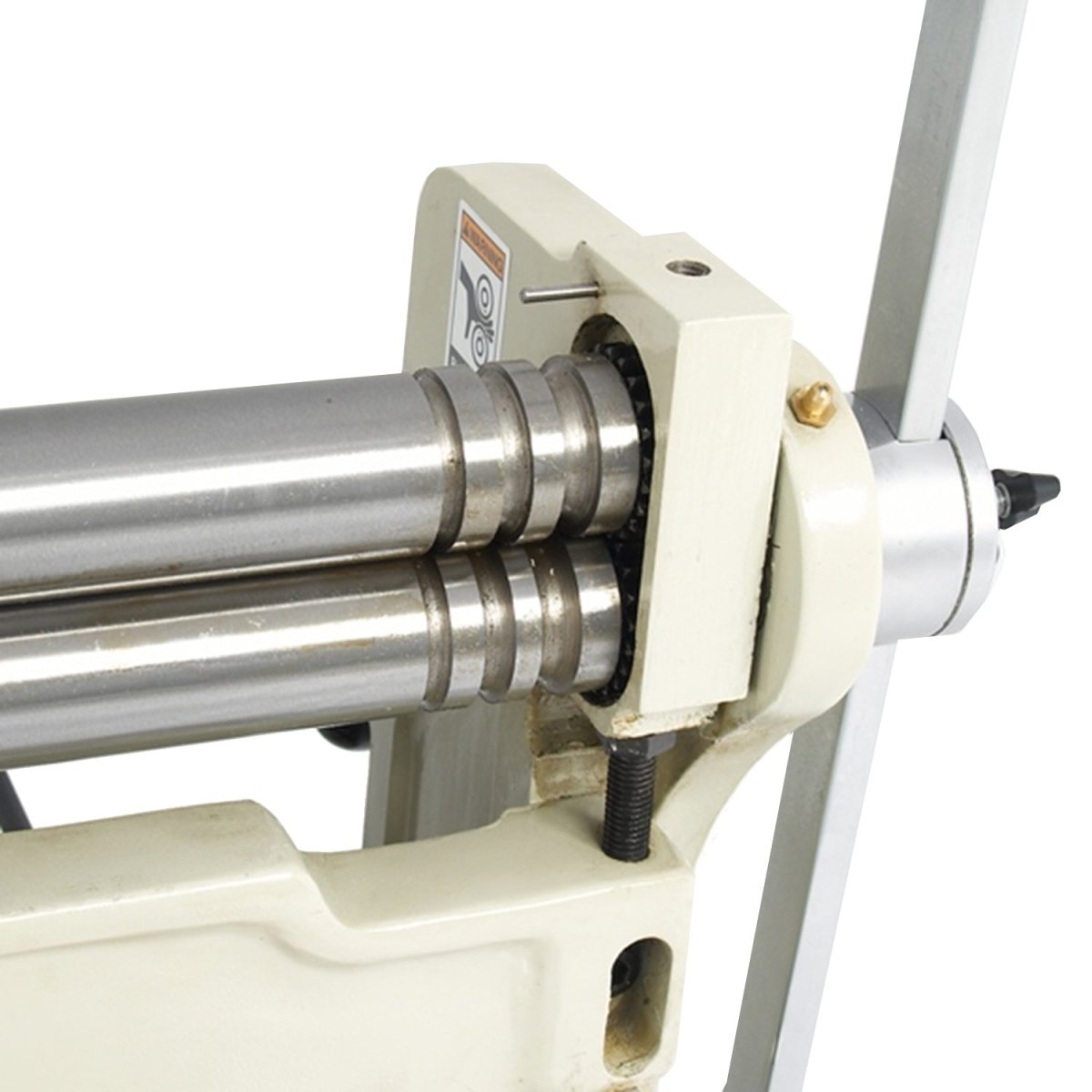

• Hardened rolls with 3 grooves can form wire or small round stock.
• Manual press brake bends up to 90° and includes a V die set.
• Crowning feature lets you set the camber of the tooling so it bends consistently across the machine’s full width.
• Hardened adjustable dies (from 1” to 10-⅛”) on the upper beam of the press brake can make boxes and pans.

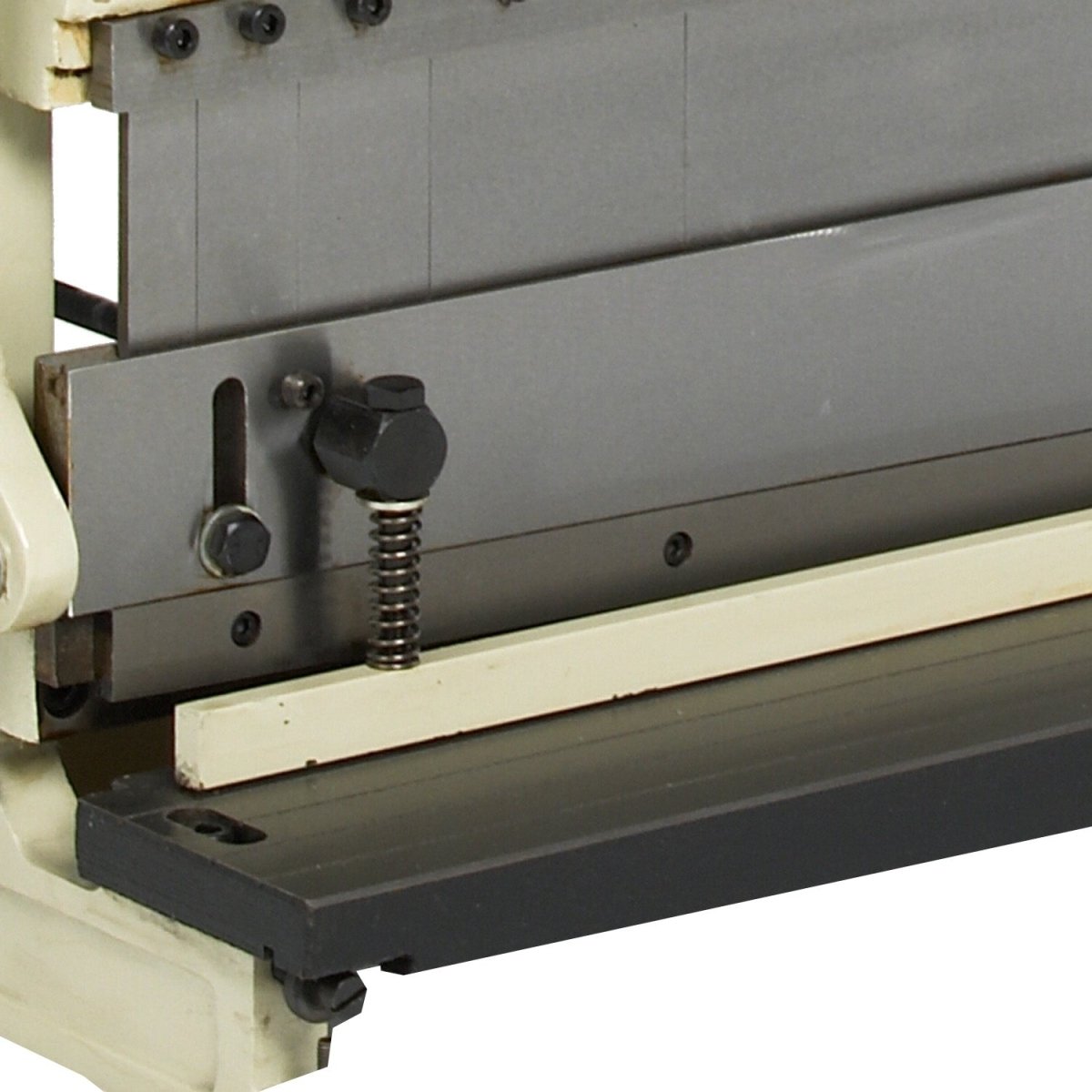

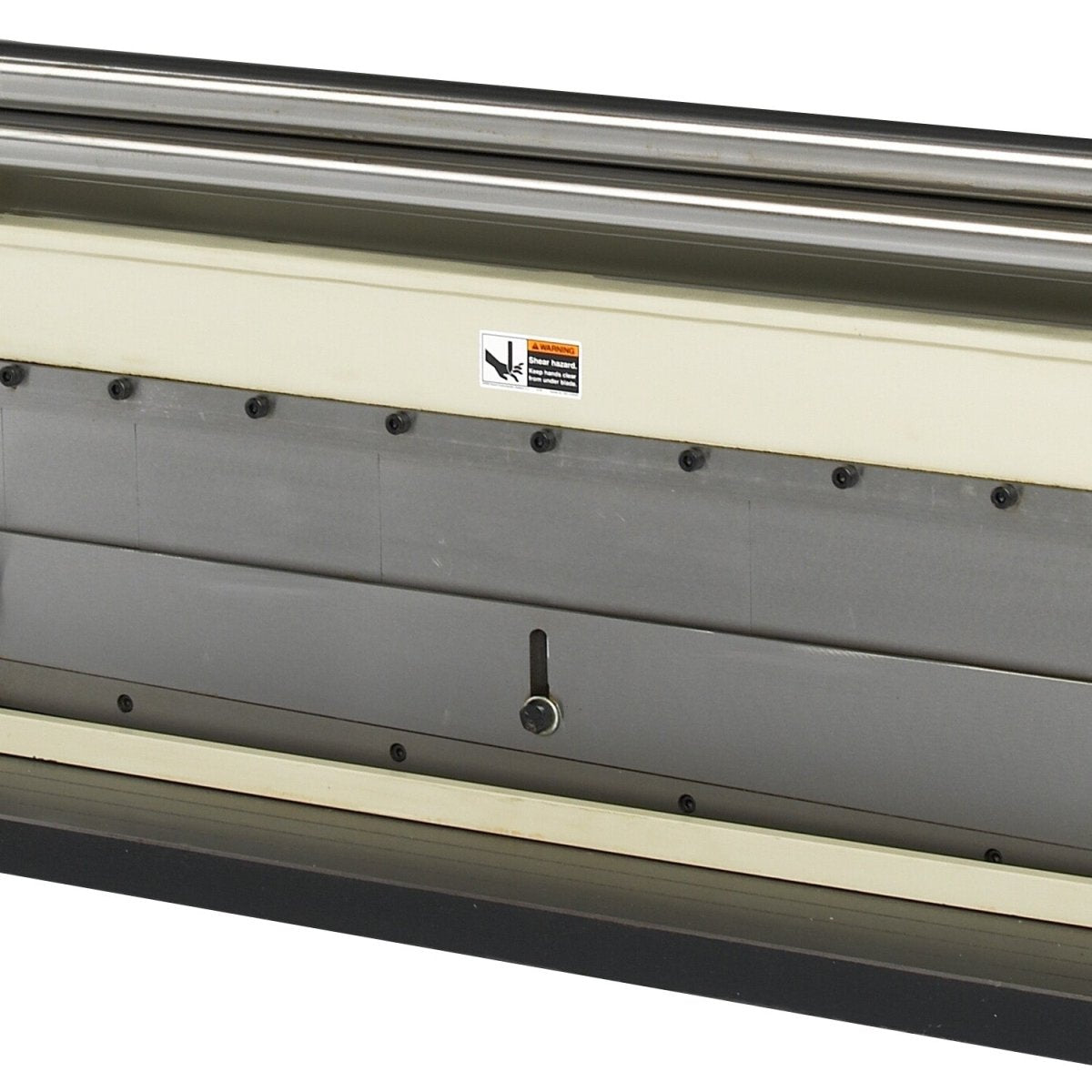

• Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
• Shear blades are hardened and reversible, so they stay sharp.
• Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
• Each 360° turn of the handles gives you a full cycle on each of the machines.
• Back gauge helps ensure repeatability.
• Heavy-duty steel frame adds strength to the 461-pound machine, so it delivers accurate results for many years.
• 3 in 1 sheet metal machine covered by a 1-year parts warranty.
• You can count on lifetime technical support by phone. Call up our team of knowledgeable reps whenever you have questions.

3 in 1 sheet metal machine recommended for: Hobbyists, maintenance, and R&D shops.

Looking for a larger or smaller shear brake roll machine? This machine is also available in a 30”-wide version and a 52”-wide model.

* specifications subject to change without notice.
