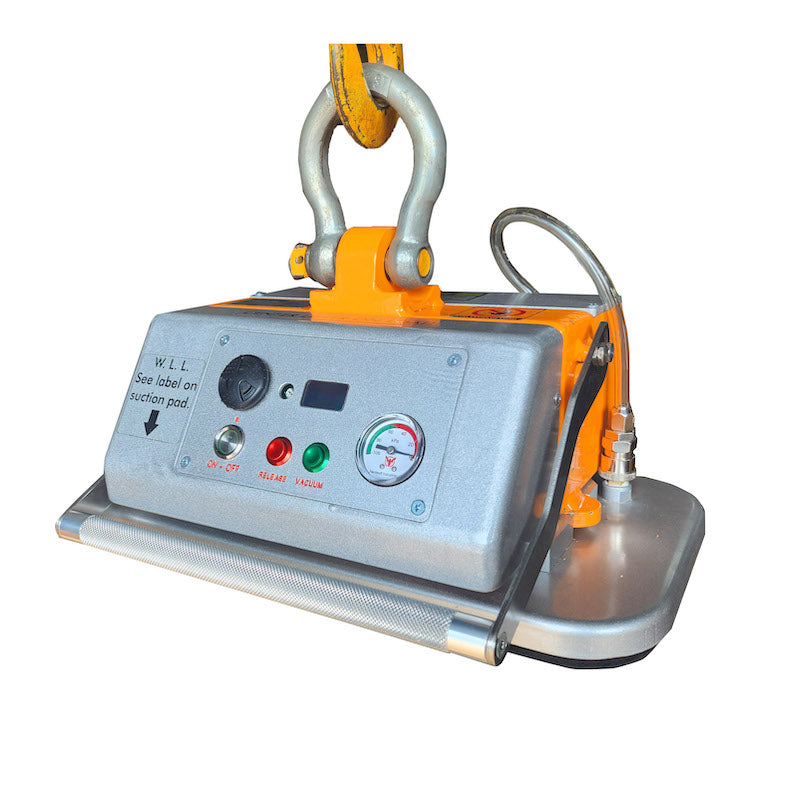

Work Load Limit: Capable of lifting up to 380 kg (838 lb) with the appropriate vacuum pad size, making it a reliable granite vacuum lifter for heavy-duty jobs.
Integrated Battery Vacuum System: Generates vacuum via a high-performance pump, eliminating the need for external pneumatic hoses.
Versatile Pads: Available in four different sizes, each designed to meet specific working load limits for various applications.
Easy Pad Changes: Engineered for quick assembly and hassle-free switching between pad sizes.
One-Press Operation: Simplifies the vacuum lifting and releasing process with a single press, ensuring smooth vertical handling.
Visual Monitor and Alarm System: Provides real-time feedback to maintain optimal vacuum levels and ensure safe operation.
Battery Backup: Offers uninterrupted functionality, even during power fluctuations.
Specifications at a Glance:
Lifting capacity up to 380 kg / 838 lbs.
Pad sizes from 125mm to 500mm wide
Net weight: 18 kg / 39.6 lbs.
Packaged for easy transport and setup
Metric | Imperial | |
Pad sizes and W.L.L | 500 x 300mm: 380kg 420 x 220mm: 220kg 500 x 150mm: 164kg 500 x 125mm: 126kg | 19.7" x 11.8": 838lbs 16.5" x 8.66": 485lbs 19.7" x 5.9": 362lbs 19.7" x 4.9": 278lbs |
Packing dimensions | L.590 | 23.2" |
Net weight | 18 kg | 39.6 lbs. |
Gross weight | 34 kg | 74.9 lbs. |
