FritsJurgens System M Pivot Hinge - ADA Compliant Door Hinges for Smooth 360° Rotation | Perfect for Modern Interior Doors, Glass Doors, and Commercial Spaces

Product Description

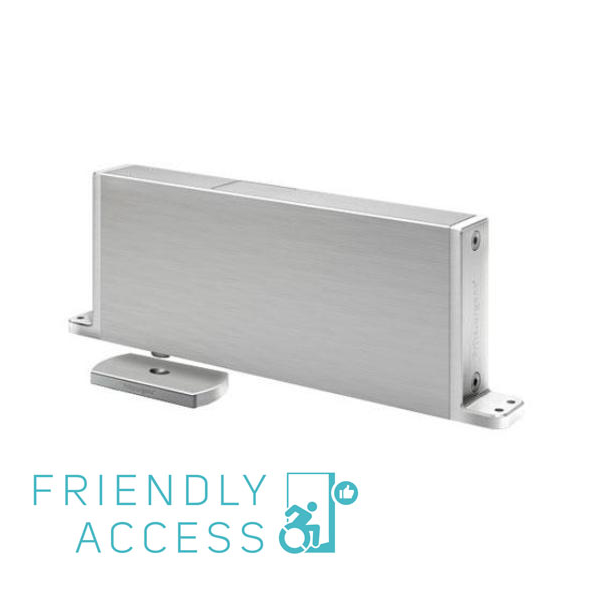

FritsJurgens System M : ADA

"Friendly Access" for ADA doors.

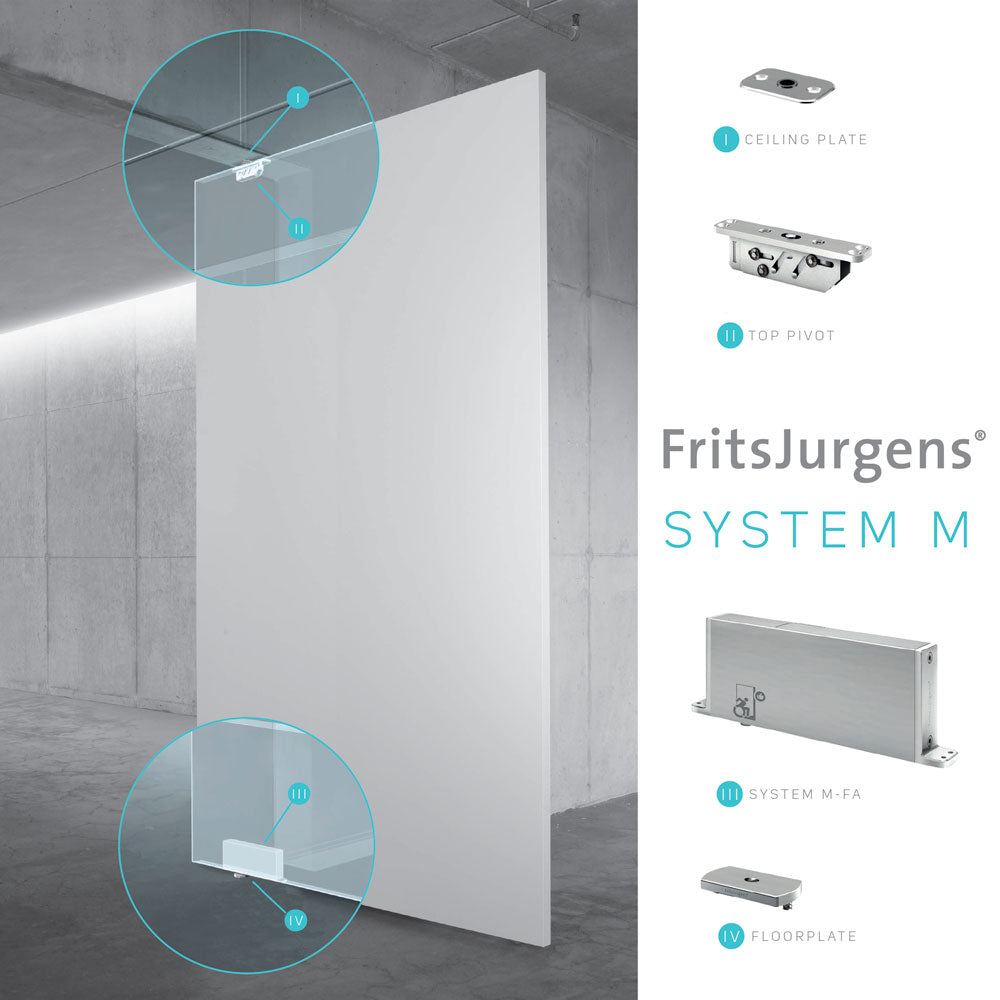

Complete Set including top and bottom pivots and accessories.

IMPORTANT PRODUCT UPDATE : Effective March 1, 2022 - FritsJurgens released a new version of the System M FA (Friendly Access), now with a shorter 70mm minimum or edge-mounted 40mm pivot point!
See the details here.

Four ADA-compliant models are tuned for your specific door. Please call us to help you determine which model is right for your door specs and situation. This is a perfect solution for designers and builders needing a pivot door for their Universal Design projects

___

It's simple. This specification-grade pivot hinge plus adjustable closer is mortised in the door. This innovation will save you time and money. Anyone who has tried to install an in-floor closer like a Dorma or Rixson will know immediately what we are saying.

System M represents a new way forward for pivot doors, especially the big ones.

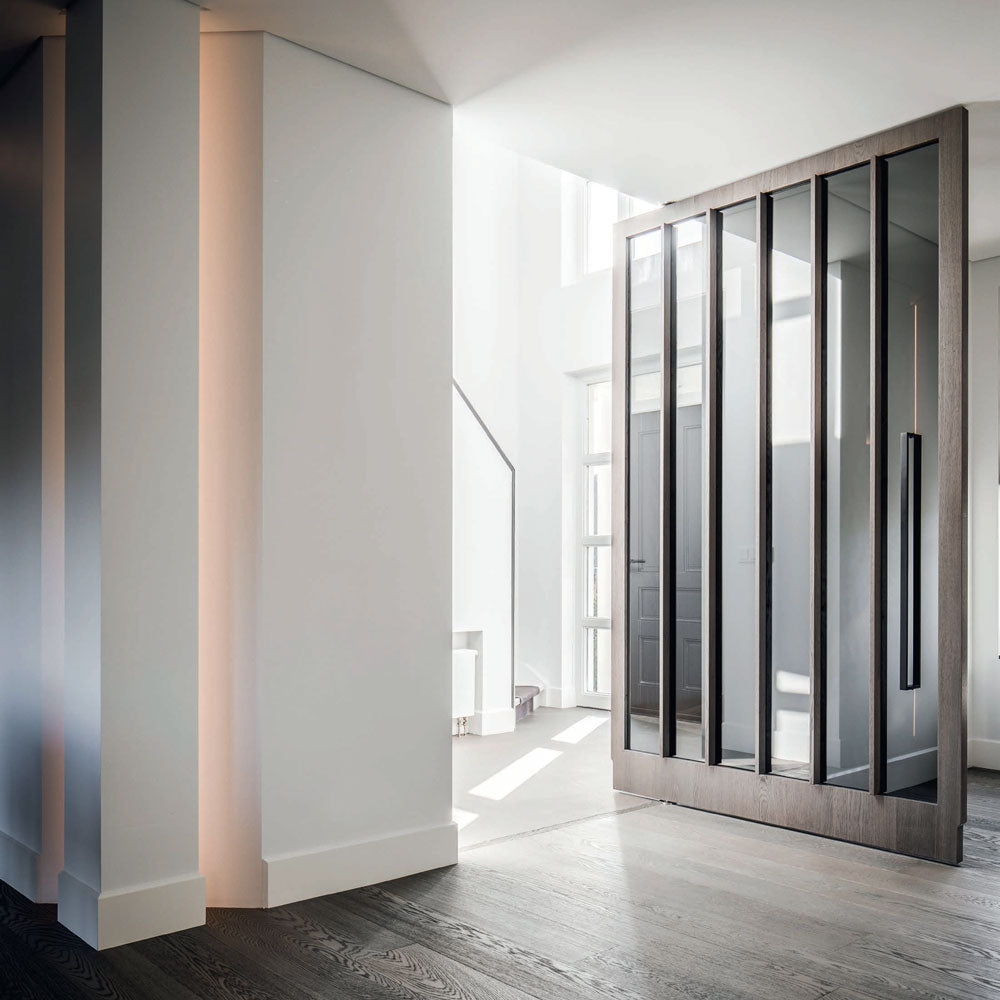

Pivot doors are becoming quite popular with designers. They provide a modern minimalist sensibility to projects of all stripes. However, for contractors the problems of installing these doors are many. Most of these problems come when you have to deal with a floor closer.

Maybe you've had to coordinate a bunch of subs to get the prep right for an in-floor closer like Dorma BTS80 or Rixson H40 (think goopy cement and jackhammers). Or perhaps you're an architect who's had to spend an afternoon or two figuring out how best to hide that nasty eye-sore of a closer coverplate.

The Dutch manufacturer FritsJurgens made the obvious move.

They've engineered a sophisticated closer and put it in the door!

Nothing in the ceiling. Nothing in the floor.

Introducing System M.

Many problems solved. So many headaches averted.

What's it do?

The System M is a heavy-duty dual-acting pivot hinge and adjustable closer that can easily handle interior or exterior doors up to 660 lbs. (the actual capacity of the hinge is 1100lbs but the closer function's effective limit is around that 660lbs). In other words, you can use System M on very big doors and have smooth operating closer function without having to sink money and time in a floor closer.

Features :

• Dual-acting with hold positions at 0˚, ±90˚
• Self-closing from ±125˚ and from ±89˚

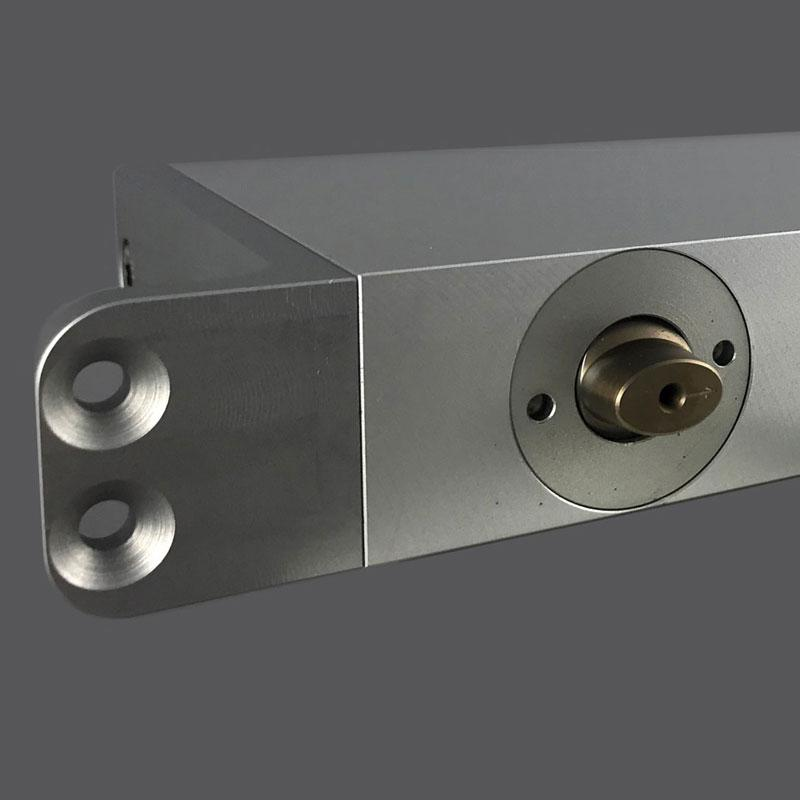

• Adjustable closing speed
• Hydraulic backcheck
• Minimum door thickness : 1-9/16" (40mm)
• Minimum distance to pivot point : 3-9/16"
• Grommeted top pivot available for POWER TRANSFER. Call us for more information.

Special ADA-compliant models are now available.

Please call us for help in specifying the correct one for your situation.

Advantages :

• No structural elements in floor and ceiling.
• For new and existing situations. Great for retrofits.
• System M makes for quick installations because you can wait until all the surfaces are done before bringing in the doors.
• Maintenance-free bearings. Tested to over 1-million cycles.
• Easily adjustable with the door fully loaded.

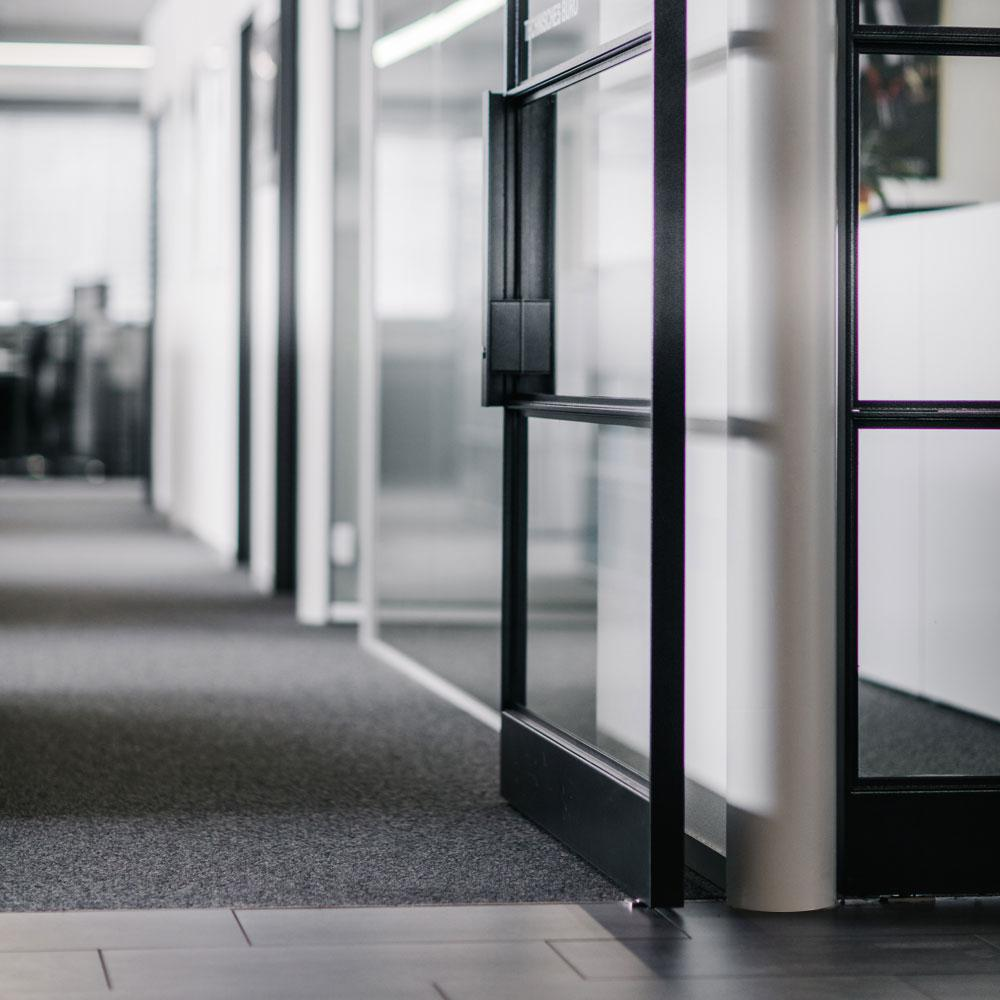

• Suitable for timber, steel, framed glass and massive clad doors.
• For single and double action doors.
• For internal and external doors.
• For commercial and residential environments.
• For really big pivot doors!

WHICH MODEL IS RIGHT FOR MY DOOR?

There are many factors involved in choosing the correct FriendlyAccess model of the System M. It's best to give us a call : +1-888-636-1627

IF YOU DON'T NEED ADA-compliance, you can get one of the .

Downloads:

Call us for CAD files.

More Info :

This product includes all pieces required for one pivot door. If you need specific FritsJurgens parts or support please contact us : 1-888-636-1627 or .
