Athmer Schall EX L 15/30 WS PIVOT - High-Quality Industrial Pivot for Heavy-Duty Machinery | Perfect for Construction Equipment and Agricultural Machinery

Product Description

Schall-Ex® L-15/30 WS Pivot

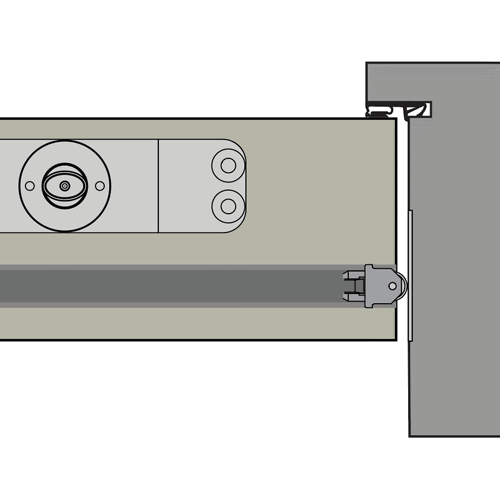

A complete sealing system for modern pivot point doors.

Athmer automatic drop seals are the only automatic drop seals we recommend for pivot doors. Tested to over 1million cycles. You don't want a door seal to fail and have to remove a large pivot door. No thank you. Use Athmer.

They even use a field removable actuator so the drop seal will not be deployed during the messy construction process (why have a drop seal be torn up by construction debris?). Finish the job, slide in the actuator, and walk away.

PRODUCT INFORMATION

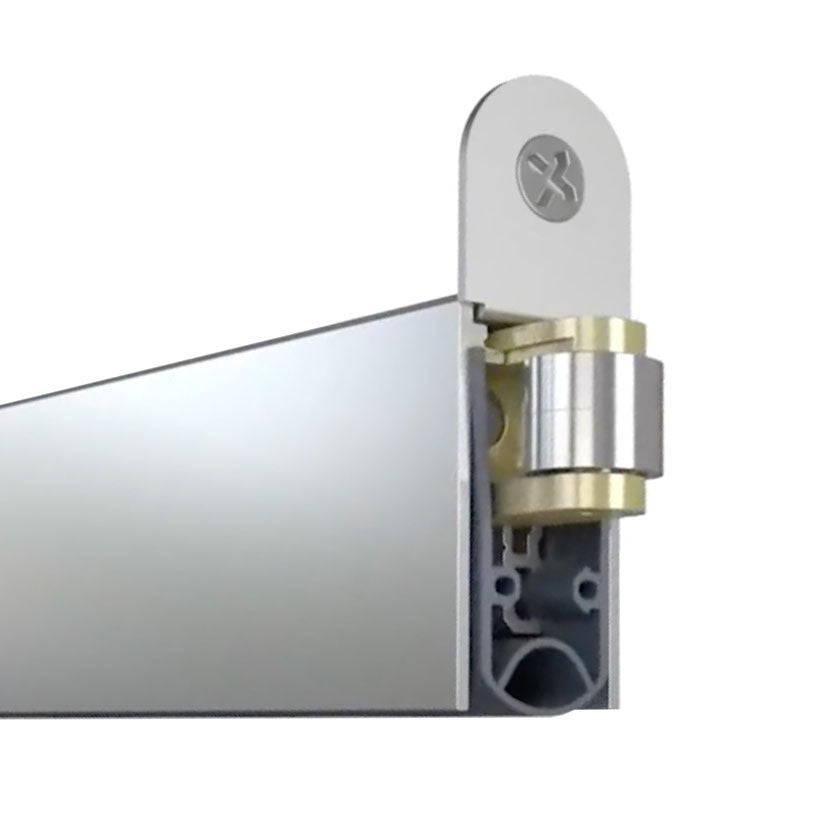

• automatic drop seal for pivot doors
• profile: 15x30, anodized aluminum
• single-actuating roller, max. protrusion 10mm
• inverted/upward actuation possible
• sound reduction of 50dB over a 12mm gap
• parallel actuation & self-leveling mechanism
• maximum seal travel: 20mm
• seal profile: silicone, self-extinguishing
• seal color: grey
• standard lengths (below) can be reduced up to 125mm (<5”)
• set includes standard flat jamb strike No.8111 in satin stainless steel finish
• engineered and manufactured in Germany

Why Athmer Door Seals?

Simply put, they offer the best product. No more spring failures, scratched floors, weak springs or installation problems. Athmer has worked out all the common complaints with existing drop down seals.

Our Mini Review

Athmer seals are cycle tested to 1,000,000+ cycles. They simply won't fail. We constantly hear reviews of other drop seals that only last several months before the spring mechanism fails. Not with Athmer seals -- simply the best seal on the planet.

Need quiet office space? HIPAA privacy space? Odor containing space-- keep it in. Private doctor office? Any space requiring privacy, draft protection, air/odor isolation can be enhanced by an Athmer drop door seal.

Also checkout zero threshold solutions or rain penetration solutions on our sister site:

Athmer has so many solutions for door seals. See the  and then give us a call for specification help.
