FritsJurgens System One Pivot Hinge - Premium Invisible Door Hinge for Modern Interior Design - Perfect for Glass Doors, Cabinet Doors, and Room Dividers

Product Description

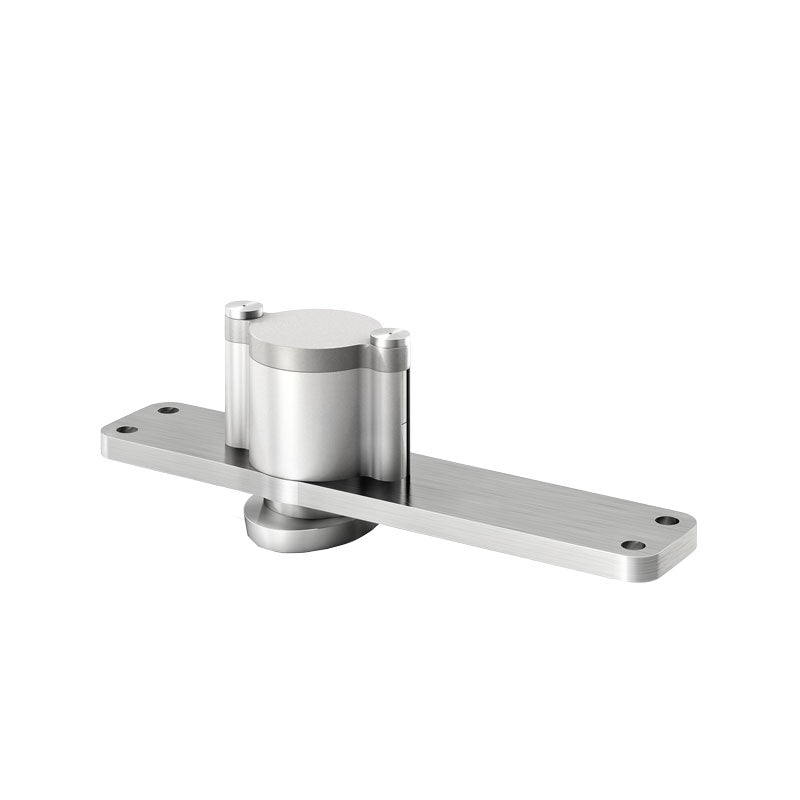

FritsJurgens® System One Pivot Hinge Set

Complete Set including top and bottom pivots and accessories.

IMPORTANT PRODUCT UPDATE : Effective March 1, 2022 - FritsJurgens released a new version of the System One, now with a shorter 70mm minimum pivot point!
See the details here.

Nothing in the ceiling. Nothing in the floor.

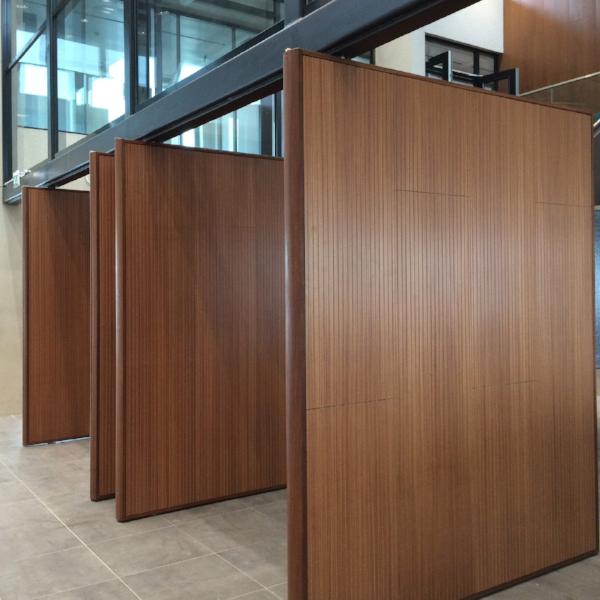

This pivot's small size belies its power. This maintenance-free center-hung pivot hinge System One can handle doors up to 1,100 lbs. Very wide and very tall doors are no problem. For example, 26ft. high doors have been installed as well as 20ft wide doors.

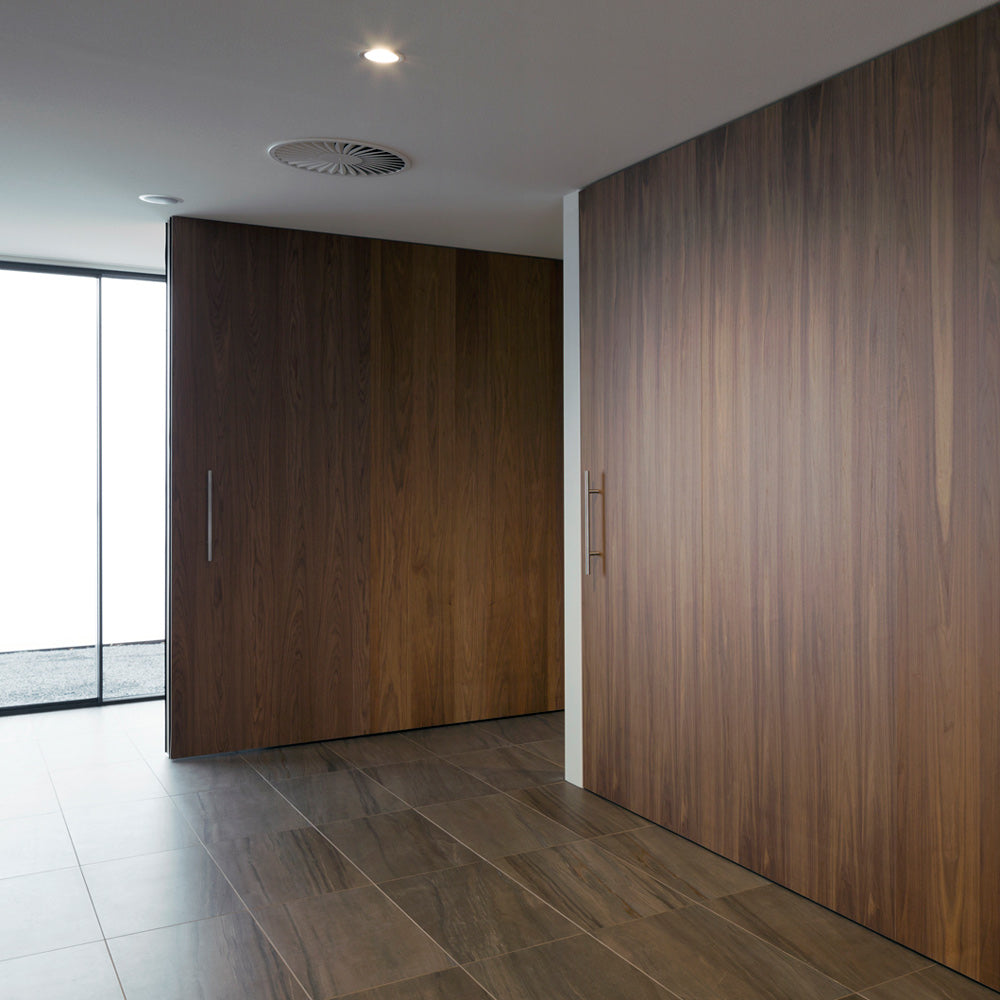

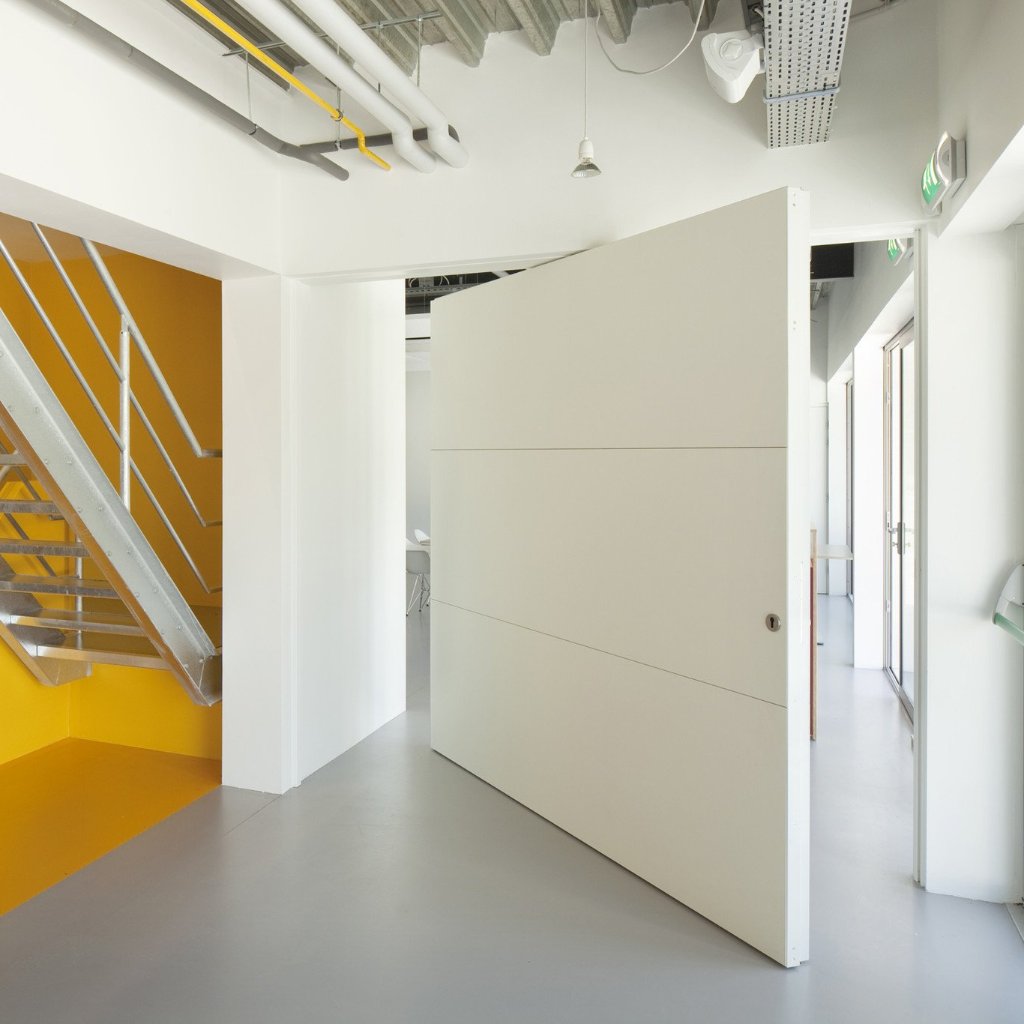

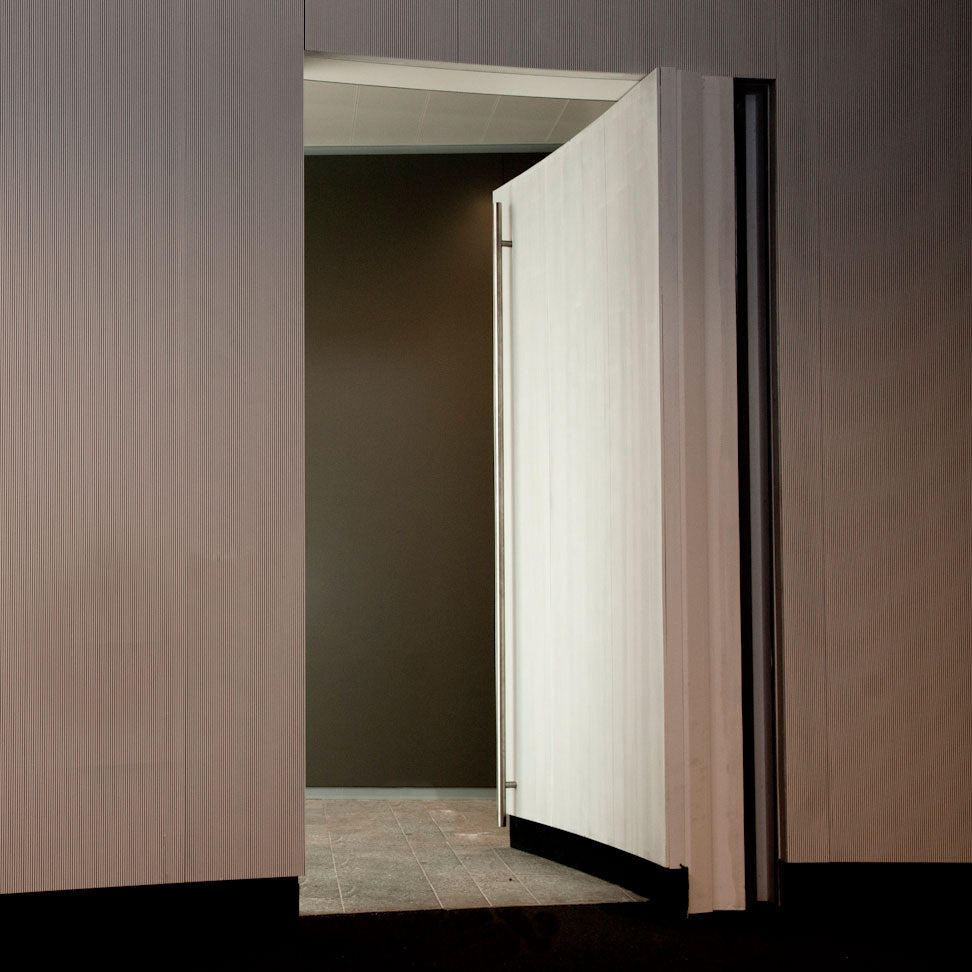

The FritsJurgens center pivot hinge System One is being specified throughout high-end residential and commercial projects to provide butt-hinge-free operation of high-end flush doors of all sizes. These pivot hinges provide hassle-free installation that can happen after all the finish work has been done, even on concrete or stone tile.

Engineered and manufactured in The Netherlands.

Installation

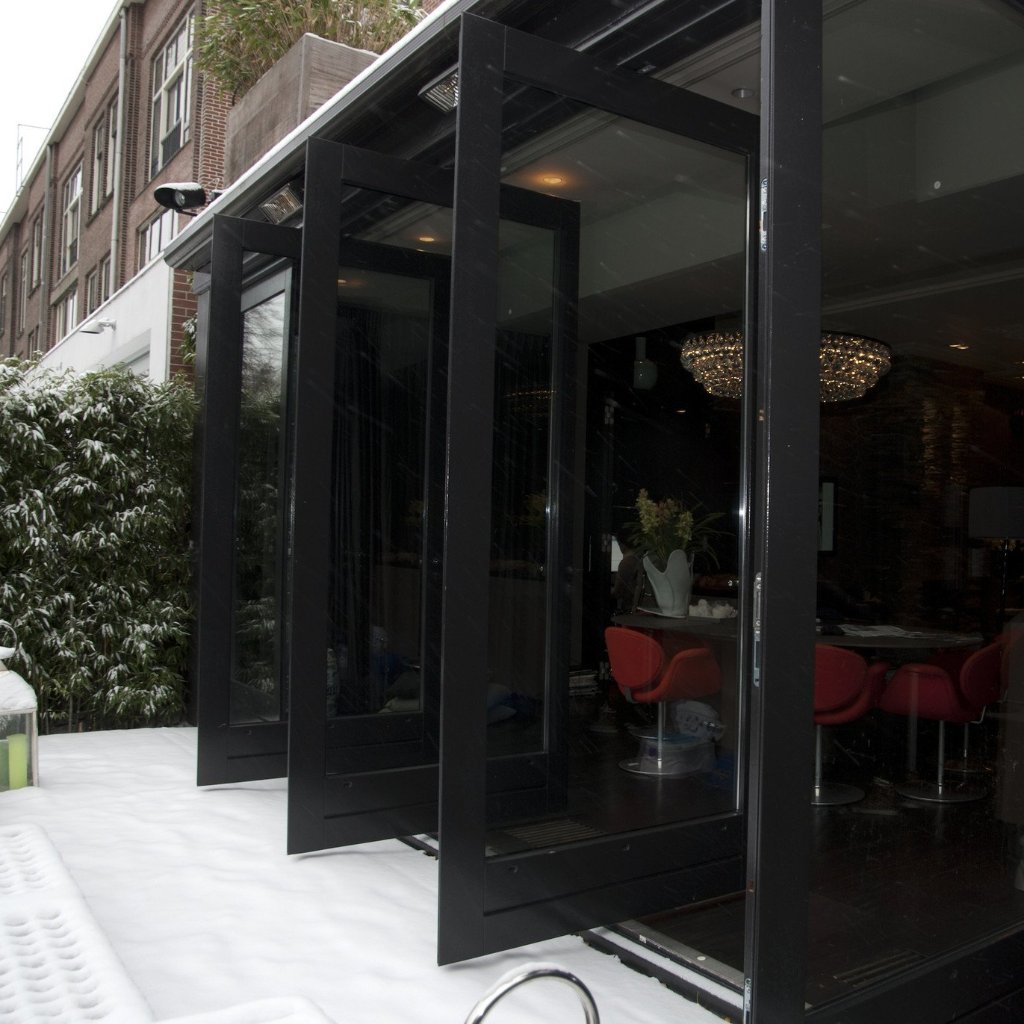

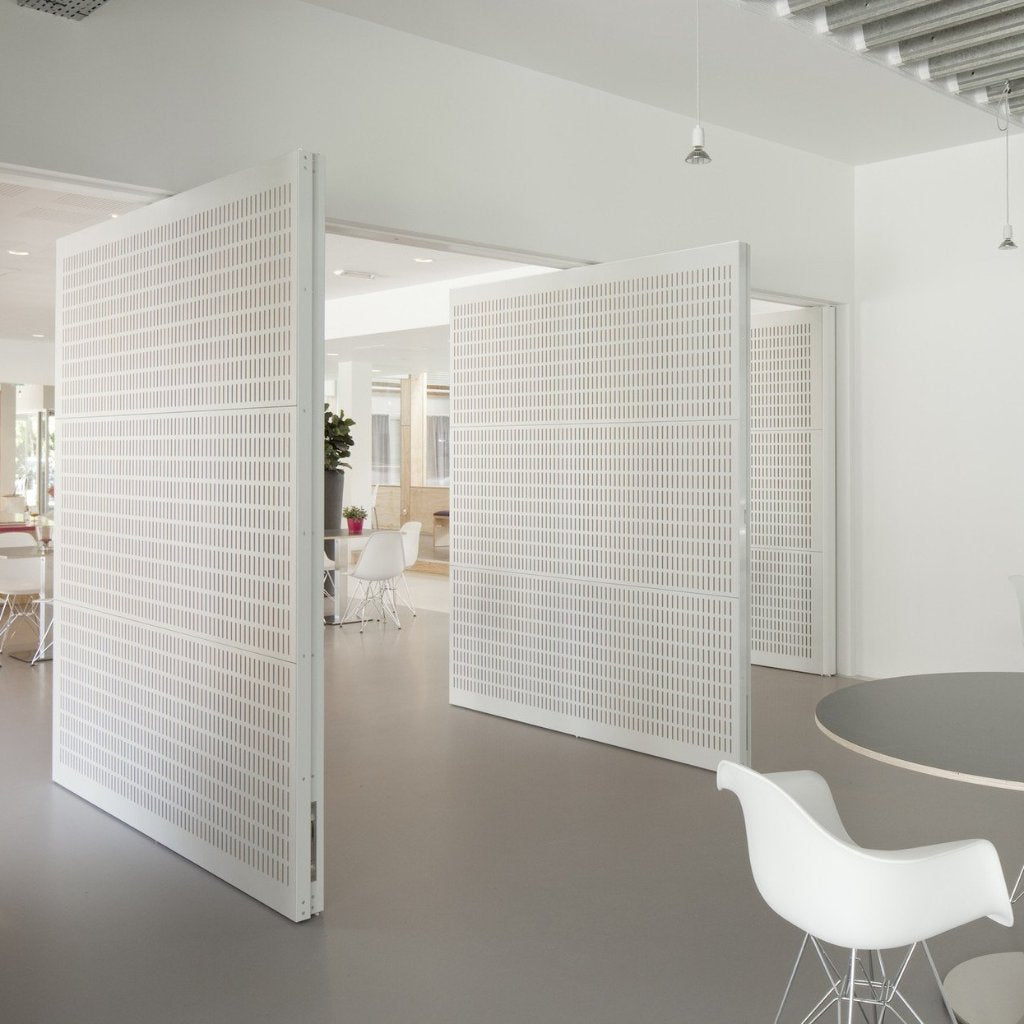

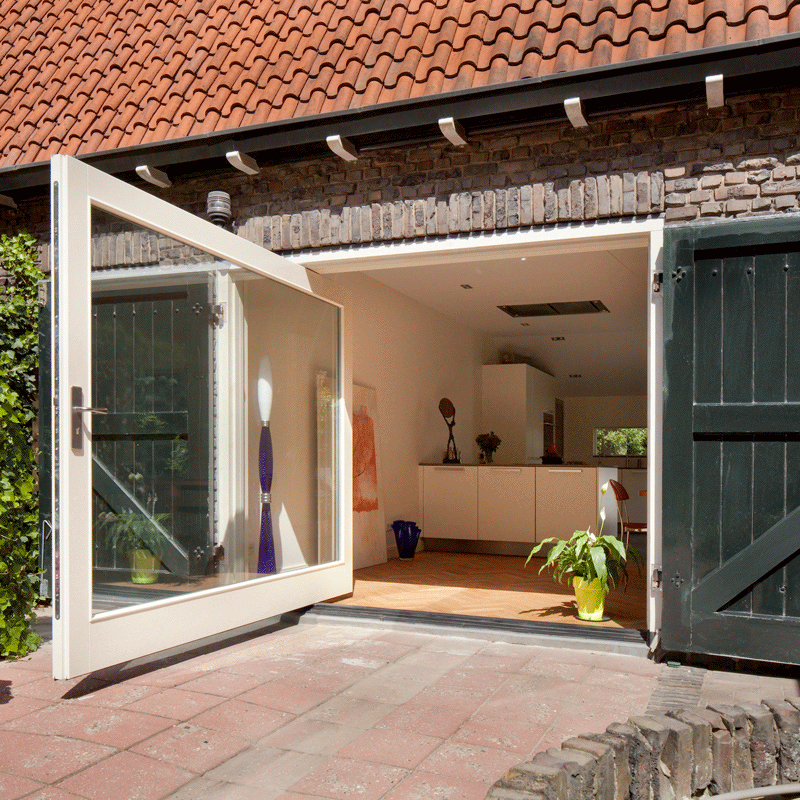

Just install the FritsJurgens patented base and ceiling plates exactly where you want your door and drop the door panel into position. Adjust to a perfect flush fit and you are done! With solutions that provide continuously adjustable closing force, these ADA compliant pivots are an excellent solution for any center-hung exterior entry pivot doors, conference room walls, museum panels, office fit ups, restaurant interiors, or anywhere you are looking for maximum space flexibility without limiting the size of your opening. You dream it up and one of their pivot hinges can meet you there!

Features :

1 function: Turn

• 360° Operation
• For doors up to 1,100 lbs.
• No closer, damper function for SystemOne
• Min. door thickness: 1-1/2”
• Tested to more than 1-million cycles
• Made from corrosion-resistant material. Interior or exterior applications.
• Quick and easy installation

Specifications :

• Maximum bearing capacity: 1,100 lbs. (500kg)
• Minimum door thickness: 1-1/2" (38 mm)
• Hold positions: None
• Minimum distance to pivot point : 3-9/16" (91 mm)
• Maximum door dimensions: Unrestricted up to a max weight of 1,100lbs.

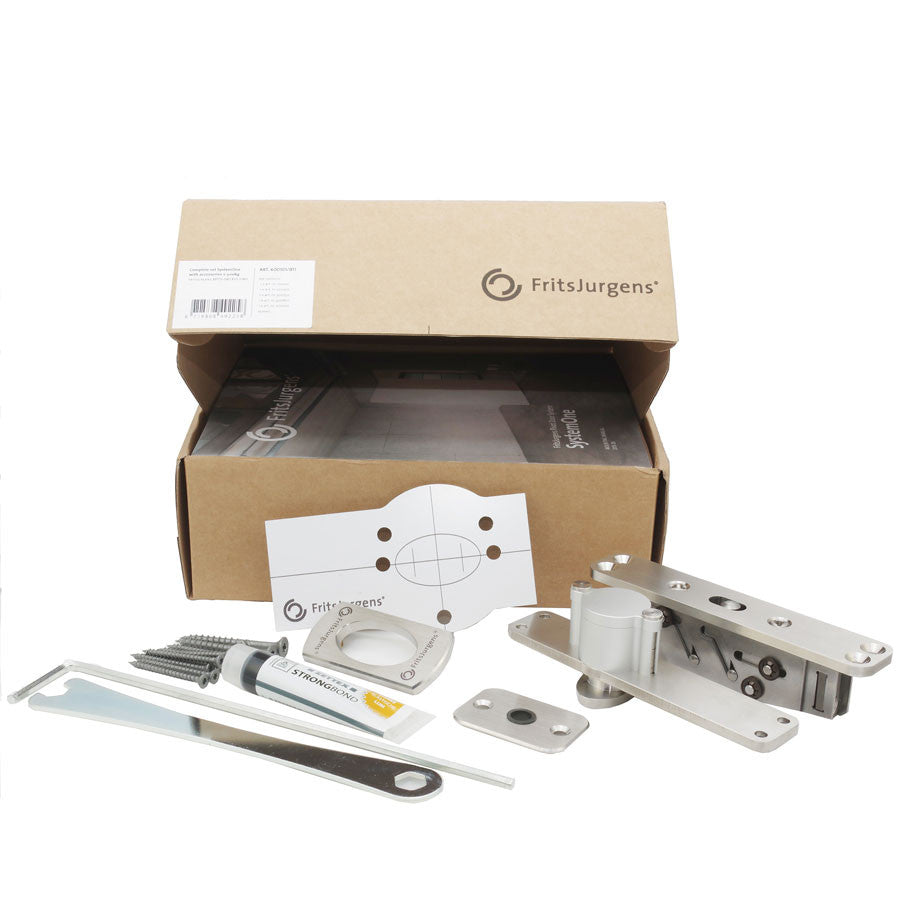

• Packaging: Delivered as a complete set with top pivot, floor plate, ceiling plate and fitting accessories.
• Warranty:  Two-year manufacturer’s guarantee.
• Model Number: 600101/B11
• Dorma Model Comparison: , OPJ350, OPH750, OPL440, OPL800, OP15200, OP15500, CP440/CPA440, ,
• Rixson Model Comparison:  , 195, 117-1/2, L147, L117, 117 x 1-1/2", 117-1/2 x 1-1/2", 128-3/4, 128-3/4, 176, , 117-3/4,

Downloads :

FritsJurgens Inspiration Book

CAD files :

• System M32+ DWG
• System M42+ DWG
• System M DWG
• System 3 DWG
• System One DWG
• Hexagon Guide DWG
• Flush DWG
• Top Pivot 9101 DWG
• Top Pivot 9001 DWG

More Info :

Positive action roller catch solution:

• Chant 1060 Adjustable Roller Catch

Magnetic Catch solution:

• Precision Magnetic Catch

This item includes all pieces required for one pivot door. If you need specific FritsJurgens parts please contact us : 1-888-636-1627

Confused?  See a primer on FritsJurgens pivot hinges.

If you are looking for a pivot hinge with a damping function from each 45° position: FritsJurgens System3

If you are looking for a sophisticated pivot hinge with adjustable closing speed and other features : FritsJurgens System M
