2002 CPDL Accurate Combination Pocket Door Lock & Edge Pull - Secure Sliding Doors for Bedrooms, Bathrooms & Closets

Product Description

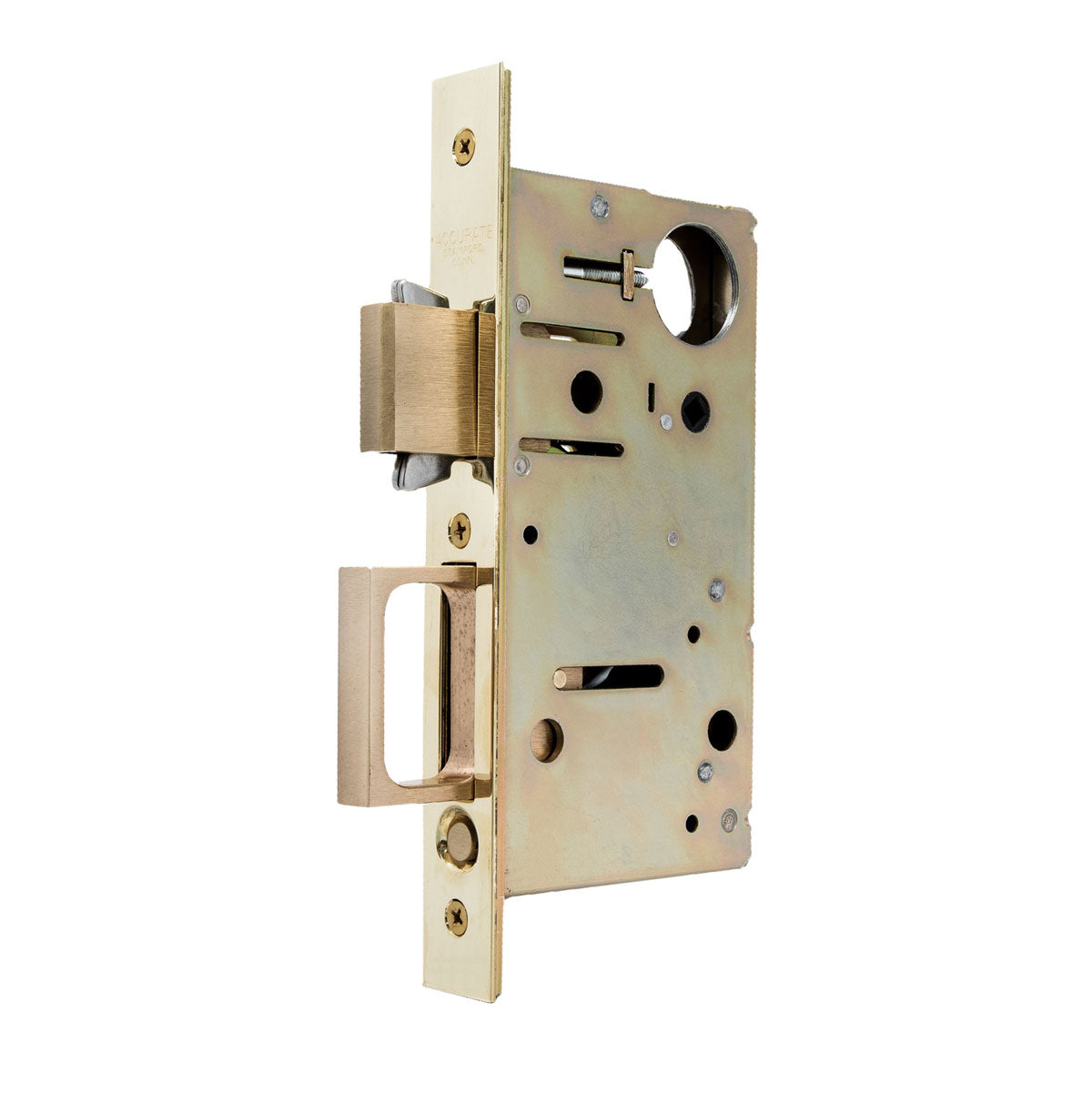

Accurate 2002CPDL Combination Pocket Door Lock & Edge Pull

This lock's heavy duty construction and high-quality finishes make it a favorite for sliding pocket doors of all sizes. For door stiles 3 1/4" wide and up.

Operation:

2002 CPDL-3:By key outside, thumb turn inside (patio/entry function)
2002 CPDL-5:By thumb turn, emergency release (privacy function)

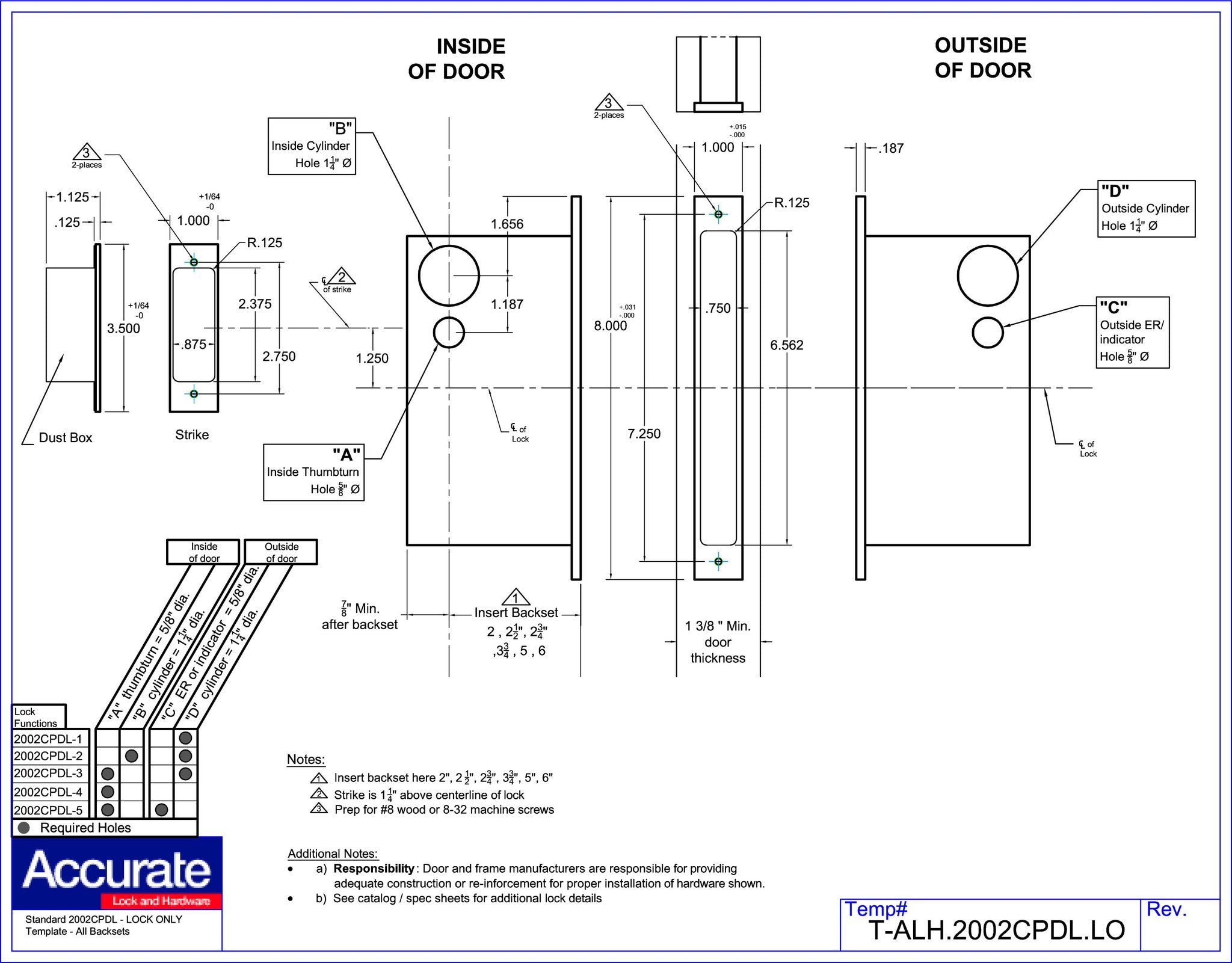

Numbers are for specification and door preparation purposes. Inside and Outside trim must be specified separately.

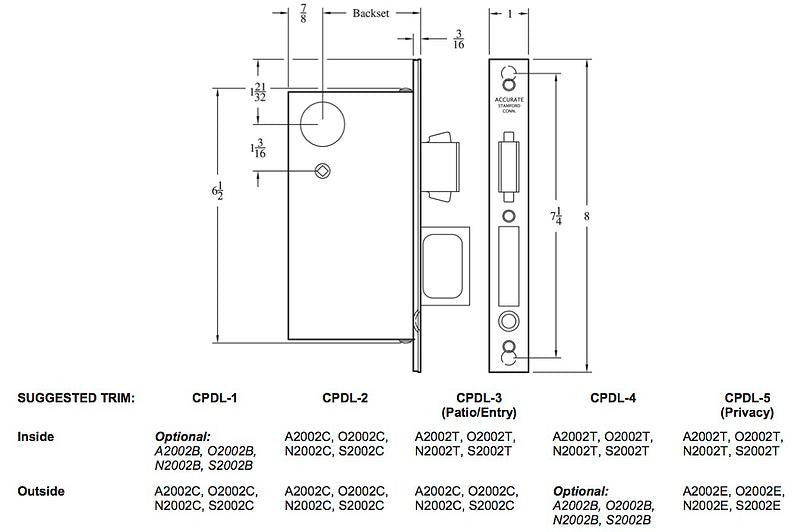

Specifications

Case: Heavy Gauge, Wrought (11/16'' thick)

Deadbolt: 1/2'' thick, 1-7/32'' high, 1'' throw

Pull: 1/2'' thick, 1-7/32'' high, 1'' throw

Thumb Turn Hub: 3/16'' (5mm) on the diamond

*Specialty 6mm square hub available as a special order

Armor Front: Brass, bronze, or stainless steel

Strike: Single doors 3/12'' x 1'' deadlock type

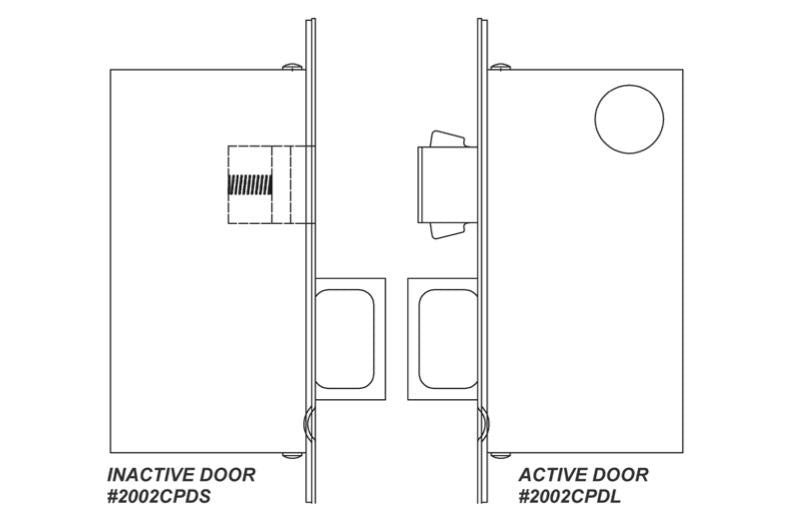

Double doors: Refer to model 2002CPDS

Dust Box: For single doors. Brass, stainless steel, or US10B

Cylinder: Available to order (3/4'', 1'', 1-1/8'' length in limited Keyways)

All back plates and bales come standard satinized. For dark finishes, bales come in either satin brass or satin chrome. Please call for polished bales (up-charge applies)

See for more details

More Info

Please call us for additional backsets

Lead Time

Accurate Hardware is custom made to order. Please allow for a lead time of 2 to 4 weeks for fabrication when ordering. This is a non-returnable item. Please review the details to ensure you are ordering the correct hardware.
