HB 690/35 Heavy Duty Sliding Door Lock - Secure Patio, Closet & Barn Doors - Keyless Entry & Child Safety for Home & Office Use

Product Description

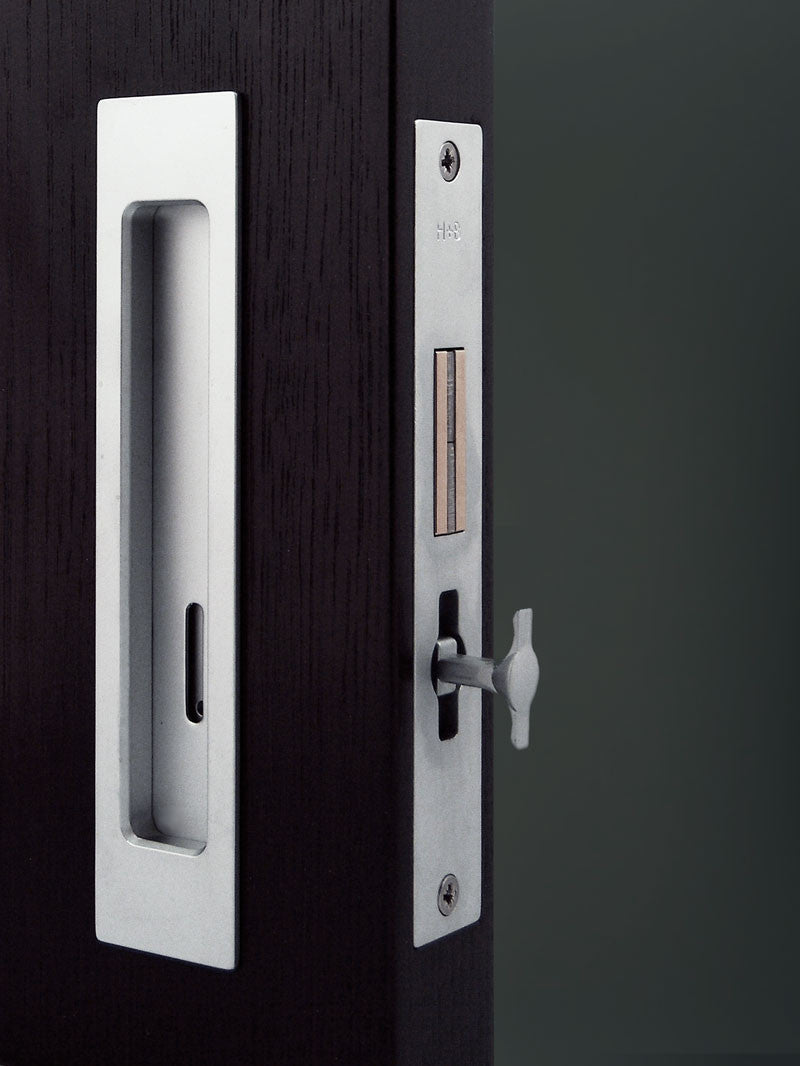

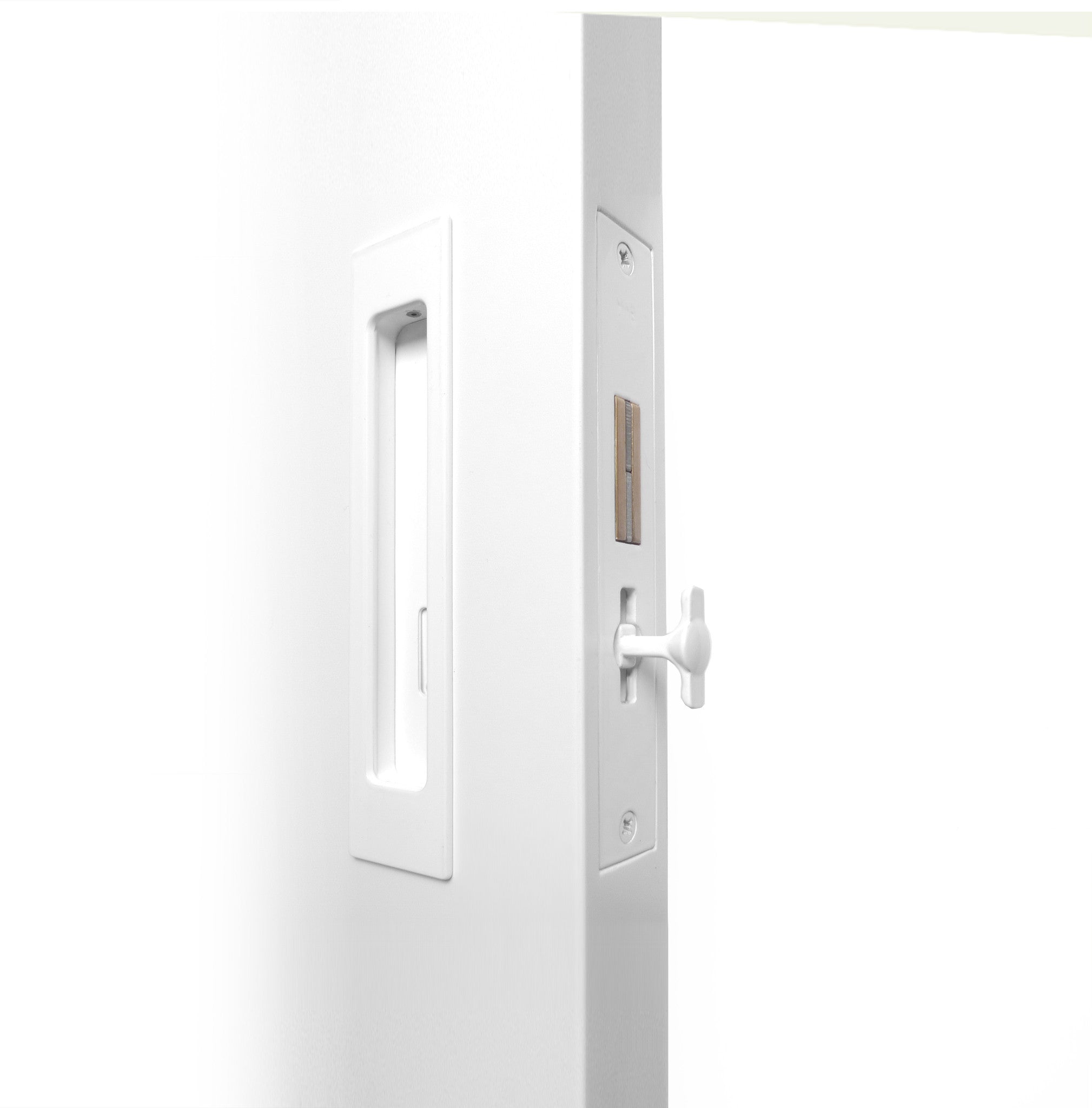

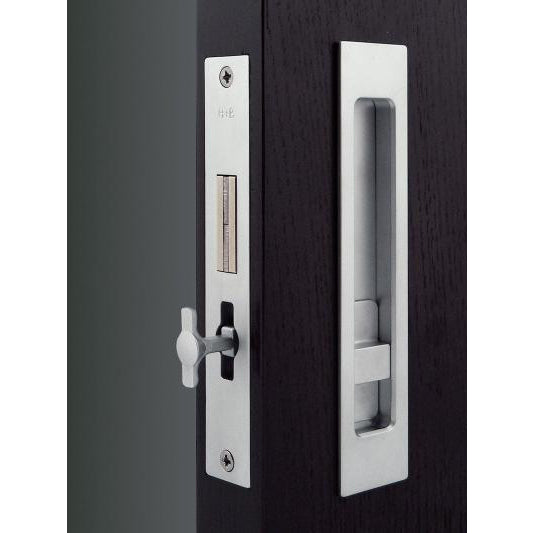

Halliday + Baillie HB 690/35 Sliding Door Lock

The Halliday Baillie HB 690/35 sliding door lock is the same as the , except the shallower flush pull allows it to be installed on doors that are 35mm (1⅜") thick. The HB690/35 features an integrated push button edge pull. The operable snib slides upwards to engage the lock. The discrete emergency door release can be operated with a pen or other small pointed object to disengage the sliding door lock from the outside.

Made in New Zealand.

Specifications:

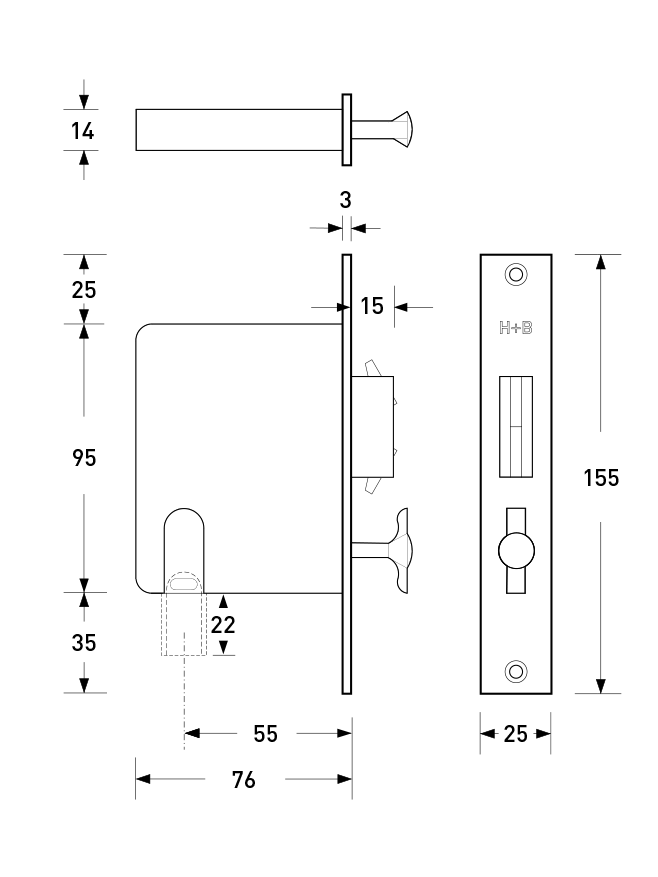

Backset: 55mm (2.17”)

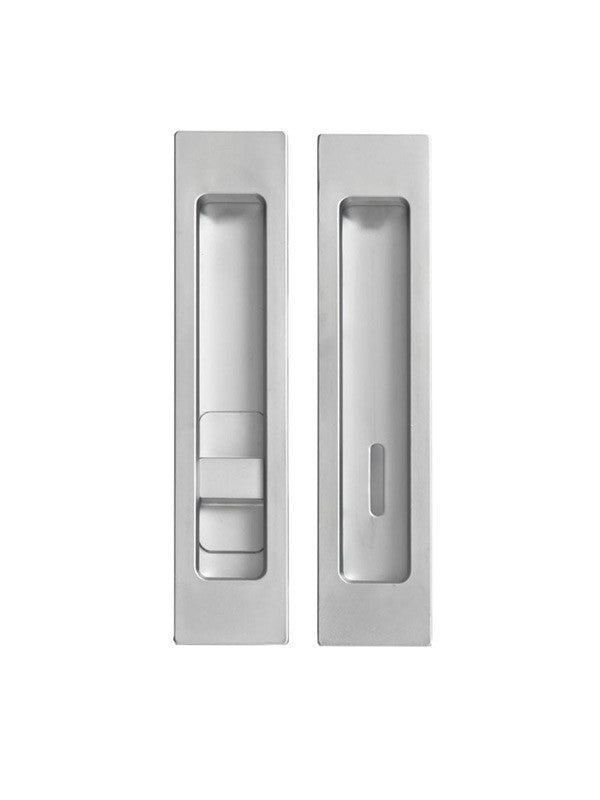

Flush Pulls: 170mm (6.69”) x 36mm (1.41”) x 12mm (.47”)

Material: Diecast zinc with brass and 316 stainless steel

Finishes:

• SC: Satin Chrome
• PC: Polished Chrome
• BN: Brushed Nickel
• PN: Polished Nickel
• KC: Black Chrome

Special Order Finishes:

• KC: Black Chrome
• EDB: Electro Dark Bronze
• WT: Powder-Coated White
• EBA: Electro Black Ace

Lead Time :

We strive to keep a healthy stock in the above finishes but it is possible we may not have your quantity available to ship right away. If you need it fast, we recommend you call us to confirm a lead time. Standard lead time if not currently in stock is approximately 6-8 weeks. Expect additional lead time for Special Order Finishes.

Package Includes:

• HB 690 Series Lock Body
• 2 Flush Pulls w/ HB 604 Timber Fixing Kits
• Strike and Dust Box
• Spindle (please specify door thickness)
• Fasteners

More Info

Most HB hardware is non returnable and non cancelable.

In double door conditions, for the passive leaf specify the  Strike Body w/Edge Pull and add Flush Pulls.

For doors greater than 1-1/2" thick, refer to

LEADTIME: The HB 690 is perhaps our best selling Halliday + Baillie product. We are working hard to keep all finishes in stock. We recommend that you call us to check on current stock levels if you need it quickly. We will do our best to fulfill your order as soon as possible. +1-888-636-1627
