Precision PLS24PROXHD Heavy Duty Concealed Magnetic Cabinet Catch - Strong Hidden Latch for Kitchen Cabinets, Wardrobes & Furniture (24mm) - Perfect for Home Organization & DIY Projects

Product Description

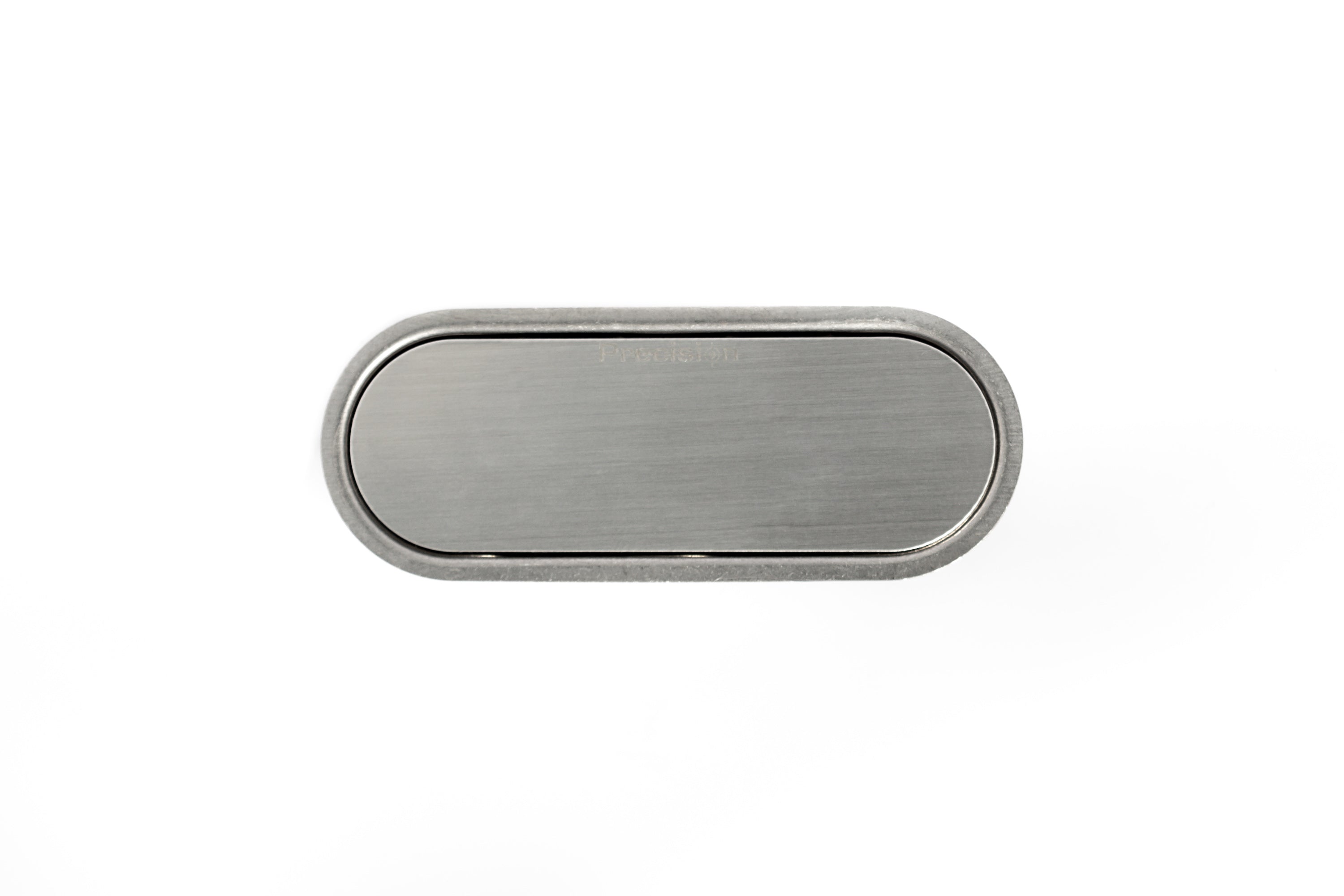

PLS24 Pro/XHD HEAVY DUTY Concealed Magnetic Catch

             In Stock and Ready to Ship!

Finally! A silent ball catch replacement!!

Suitable for large/heavy full-size hinged or pivot doors with door thickness greater than 30 mm (1.18").  Use this as an alternative to a roller mortice latch.

Approximate 9 kg (19 lbs) pull strength (with door and door frame magnet components set with an approx. 1mm 'air gap' and installed at a backset of approx. 40mm (1.57") in from the leading edge end of the top of the door.  This is an approximate measure of pull strength as many variables can effect pull strength.

 **ALL PRECISION MAGNETIC CATCHES ARE NON RETURNABLE AND NON REFUNDABLE.

Need something smaller or with less strength?  Check our and .  Don't forget  for a silent door opening and closing experience!

HAVE A FLUSH DOOR?  Need a STOP and HOLD?  Check out the which is a revolutionary invisible doorstop and hold.

For a while, we'd been selling a set of strong countersunk neodymium ("earth") magnets to our customers who wanted a magnetic catch, say, for a full-size closet door. A pair would sort of do the trick but, because even a small change in the distance between the magnets represents a big change in the force between them, you would never really know how much "catching force" you'd have until after you installed them. You'd have a fidgety sort of install to get it just right. Worse, you sometimes had to install a second set to get the power you needed.

Recently, one of our crafty millwork customers told us about these Precision and claimed that he'd never use anything else again.  And now we have the XHD HEAVY DUTY VERSION!

It's the KIT that makes all the difference. We gotta hand it to the Kiwis; Precision has worked it all out for you.  Great too!

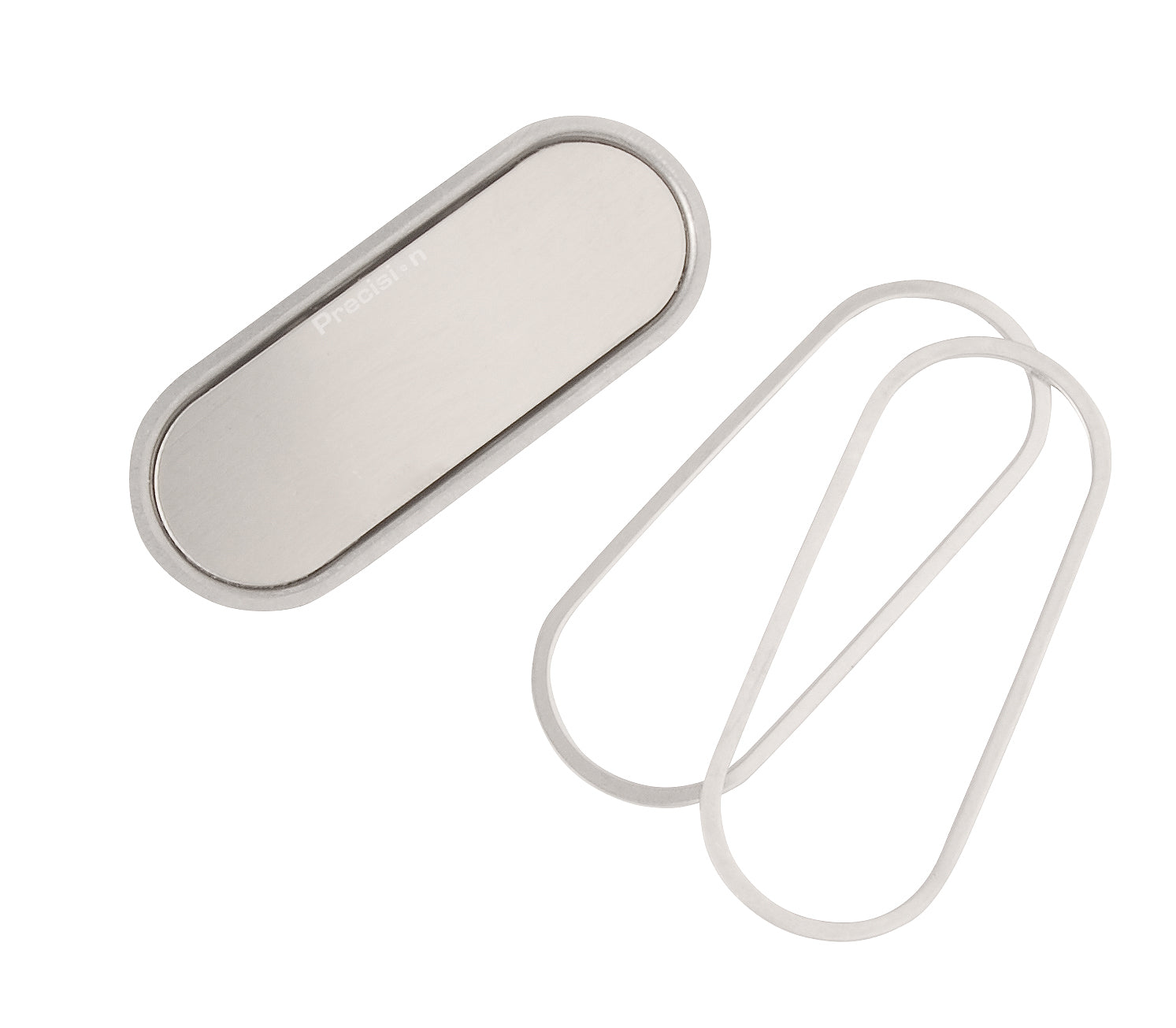

WHAT'S IN THE KIT:

• DOOR JAMB MAGNETIC ASSEMBLY
• SELF ADHESIVE S/STEEL COVER PLATES
• S/STEEL 10g FIXING SCREWS
• DRILLING TEMPLATE GUIDE
• POWER ADJUSTMENT SPACER RINGS (S/STEEL)
• 'DRILL IN' RUBBER BUFFERS

OPTIONS:

•  (avoid the slam! sound)
•  bit for the perfect fit (select the 24mm)

 DOWNLOADS

WHERE TO USE PRECISION MAGNETIC CATCHES:

These Precision catches can be used anywhere a roller or ball catch would normally be fitted. Unlike a roller or ball catch, there is no noise when opening and shutting the door. Plus, unlike the ball catch you often see in these situations, the magnets don't lose their power over time. There's no double tapping to get the door closed. The perfect solution for keeping problem doors shut, and, sleeping spouses sleeping. That's what one architect told us about why he originally started using magnetic catches. A client who liked to go running in the early morning and dreaded the loud click-clunk of the ubiquitous ball catch would wake up wife, no matter how gently he closed their closets. It's probably reaching to say Magnetic Catches saved his marriage, but at least his wife was able to sleep in.

Great for pivot doors!!!  Especially the FritsJurgens Pivot Hinge

Don't need the heavy-duty version?  Check out the PLS24PRO.

Warning: as with all strong neodymium magnets, you need to be careful when handling them. Keep them well apart or spend time pulling them away from each other.

Installation Guide: Precision PLS 24 Pro-XHD Installation Guide

A fantastic door ball catch alternative!
