Precision PLS24PRO Concealed Magnetic Cabinet Catch - Strong Hidden Latch for Kitchen Cabinets, Drawers & Furniture (Set of 24) - Perfect for Home Organization & DIY Projects

Product Description

 Precision PLS24 PRO Concealed Magnetic Catch

Finally!   A silent ball catch alternative!!

(but don't feel bad if you already have some of those horrid ball catches because we now also offer !!!! NEW!!!)

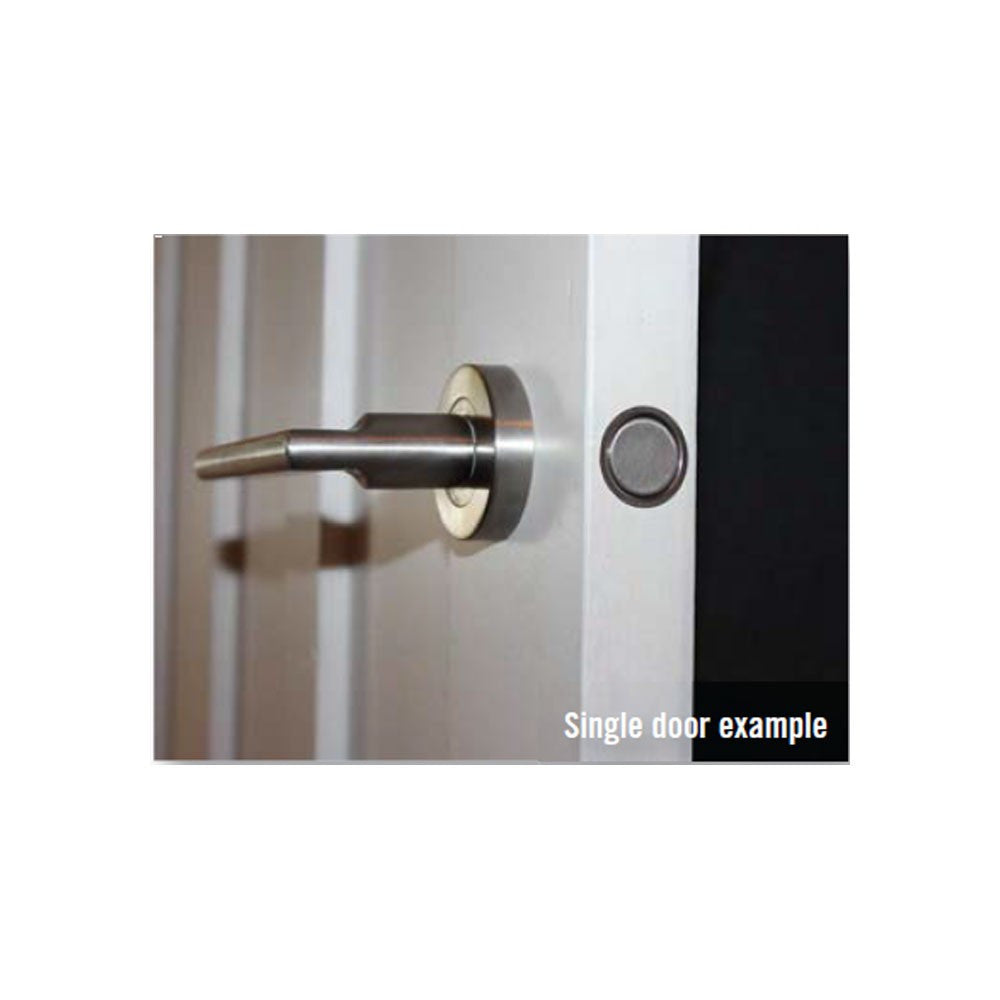

Suitable for light/medium/heavy full size hinged interior doors with door thickness greater than 30 mm (1.18") and great for standard hollow core pocket doors, interior sliding pocket doors (1/2" hole required to flush mount magnets), closet and interior double doors.

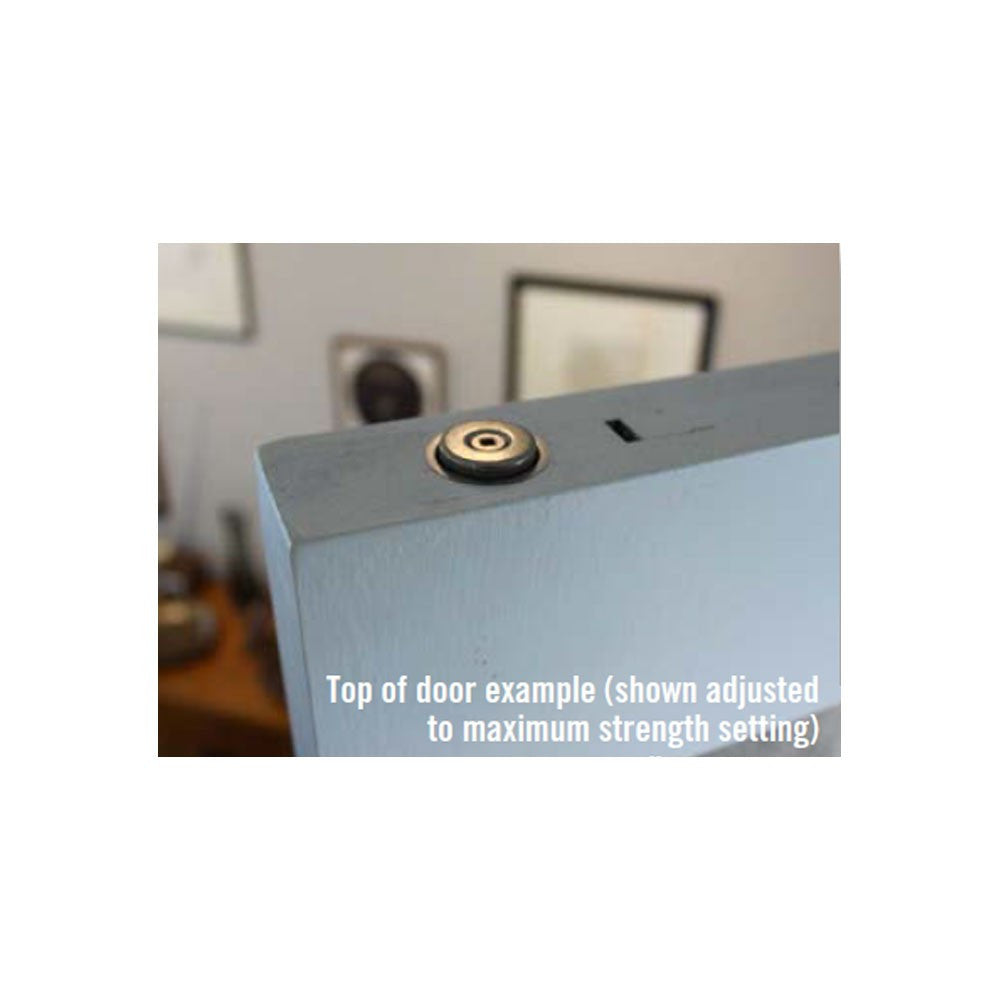

Approximate 4 kg (8.8 lbs) pull strength (with door and door frame magnet components set with an approx. 1mm 'air gap' and installed at a backset of approx. 40mm (1.57") in from the leading edge end of the top of the door.  This is an approximate measure of pull strength as many variables can effect pull strength.

 **ALL PRECISION MAGNETIC CATCHES ARE NON RETURNABLE AND NON REFUNDABLE.

NEW:  If this one isn't strong enough, look at the new .  Or less strength, check out .

Don't forget  for a silent door opening and closing experience!

HAVE A FLUSH DOOR?  Need a STOP and HOLD?  Check out the  which is a revolutionary invisible doorstop and hold.

For a while, we'd been selling a set of strong countersunk neodymium ("earth") magnets to our customers who wanted a magnetic catch, say, for a full-size closet door. A pair would sort of do the trick but, because even a small change in the distance between the magnets represents a big change in the force between them, you would never really know how much "catching force" you'd have until after you installed them. You'd have a fidgety sort of install to get it just right. Worse, you sometimes had to install a second set to get the power you needed.

Recently, one of our crafty millwork customers told us about these Precision PLS 24 PRO Concealed Magnetic Catches, and claimed that he'd never use anything else again.

It's the KIT that makes all the difference. We gotta hand it to the Kiwis; Precision has worked it all out for you.  The best door ball catch alternative is finally here.

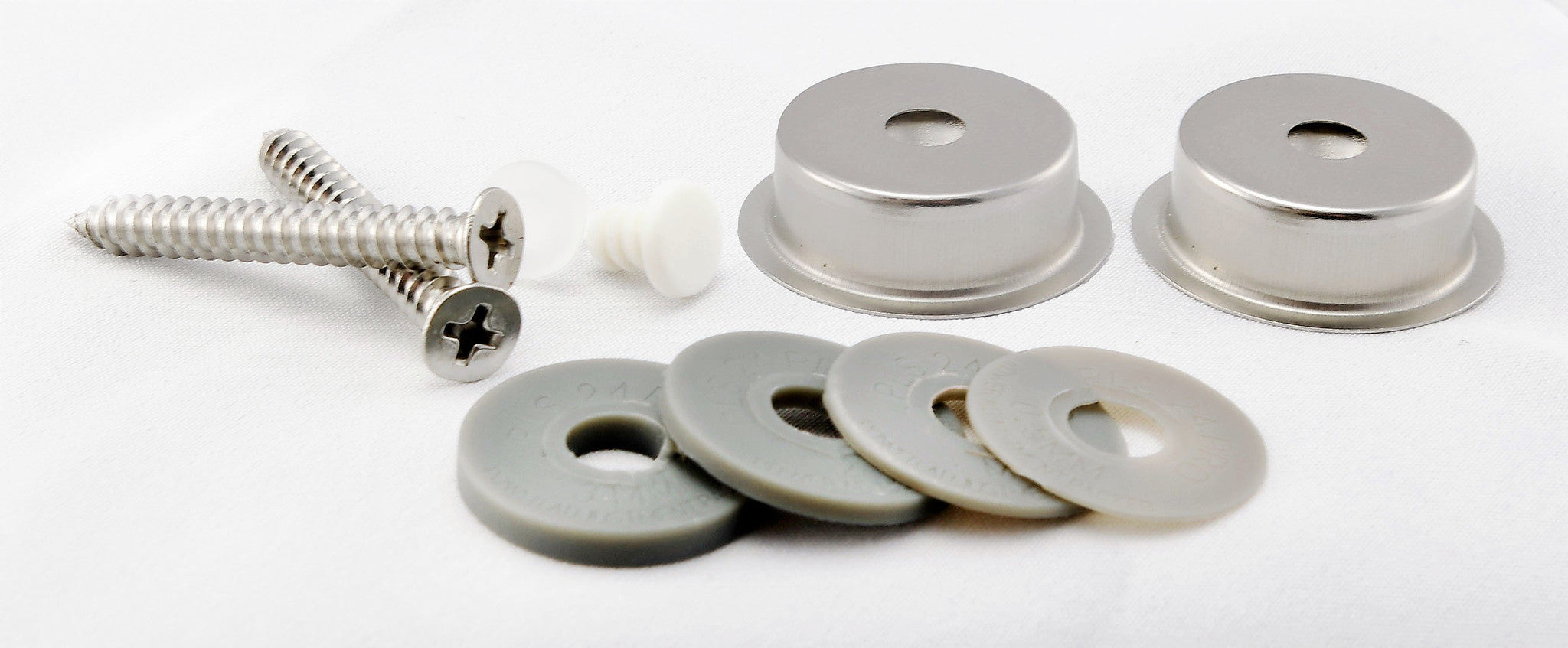

WHAT'S IN THE KIT:

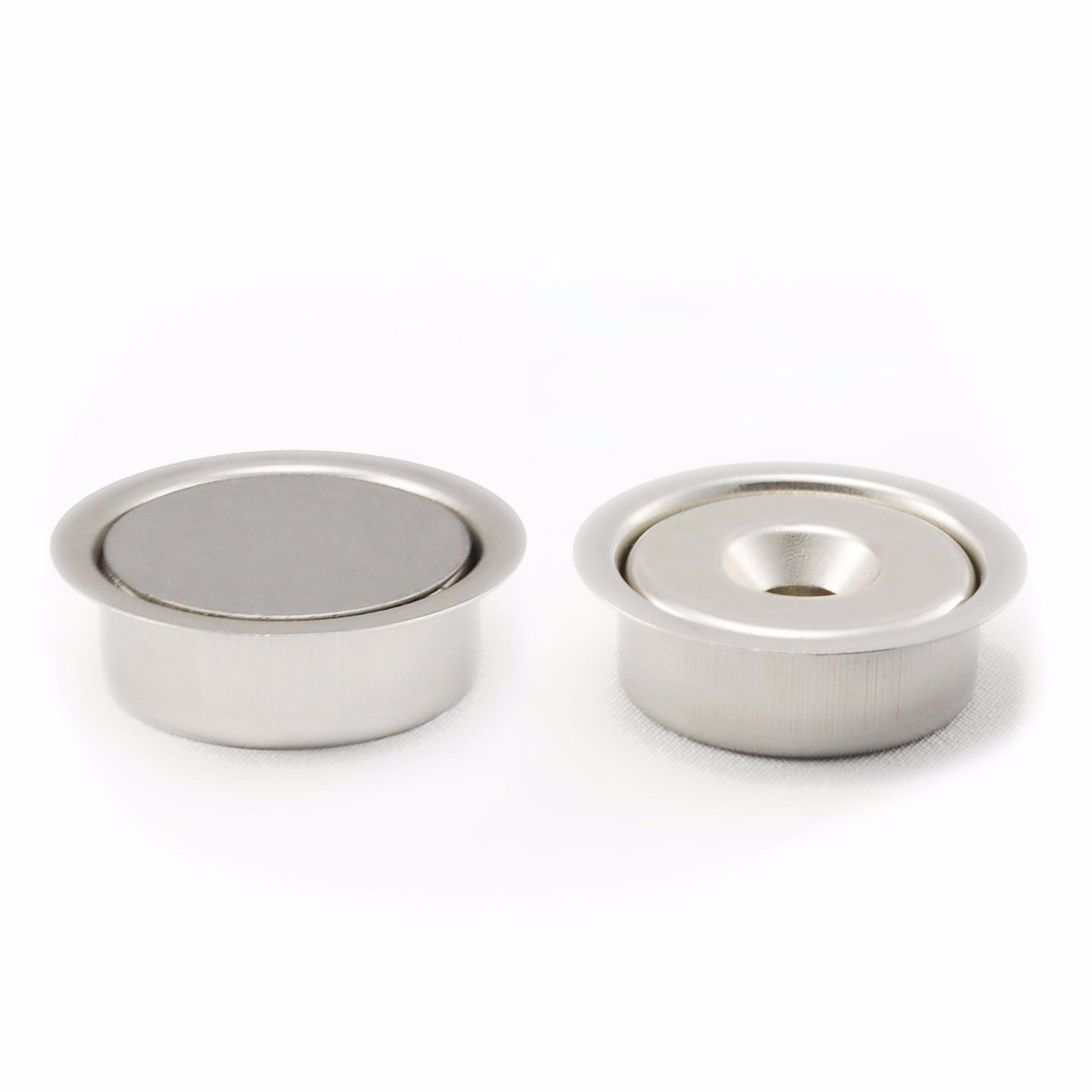

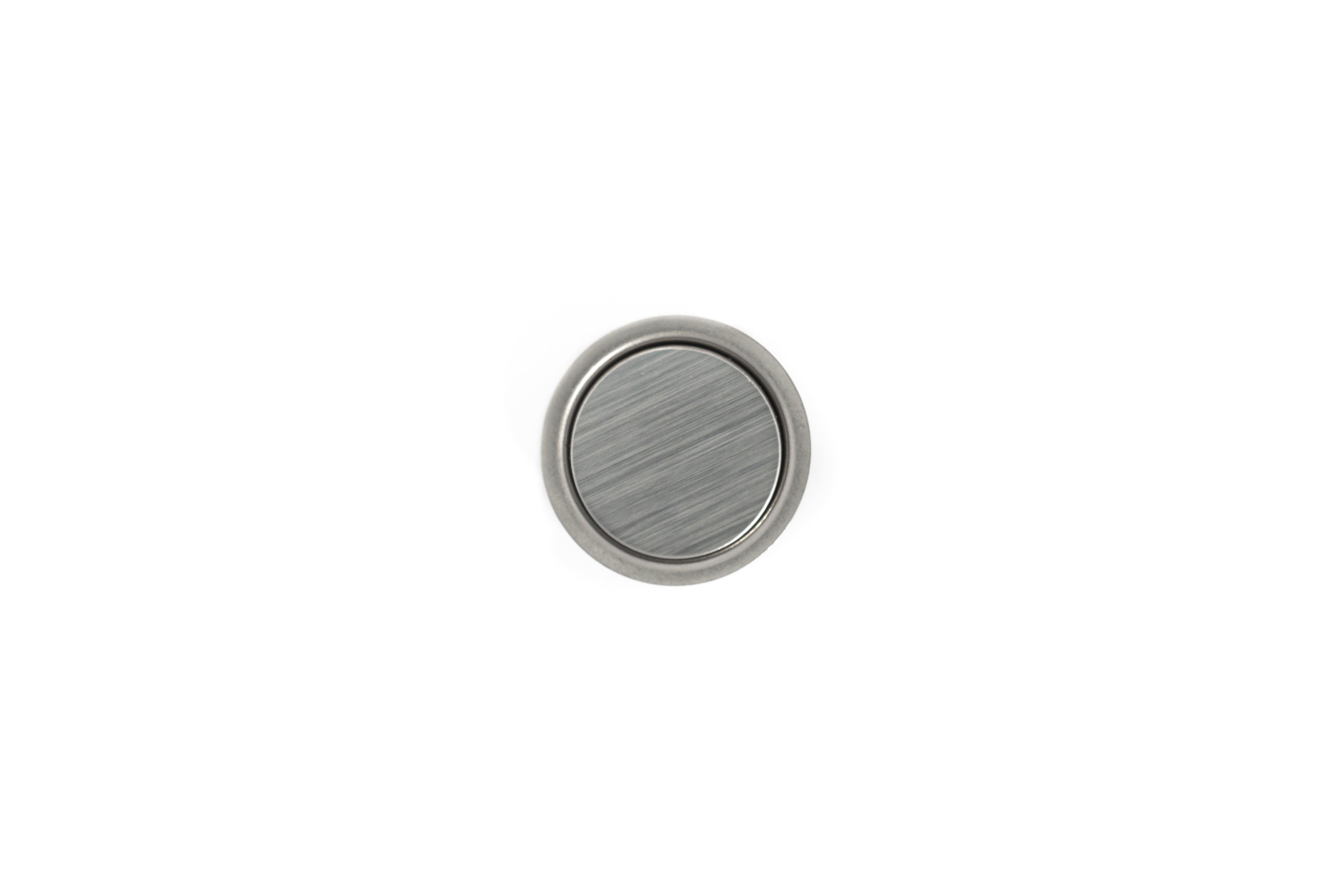

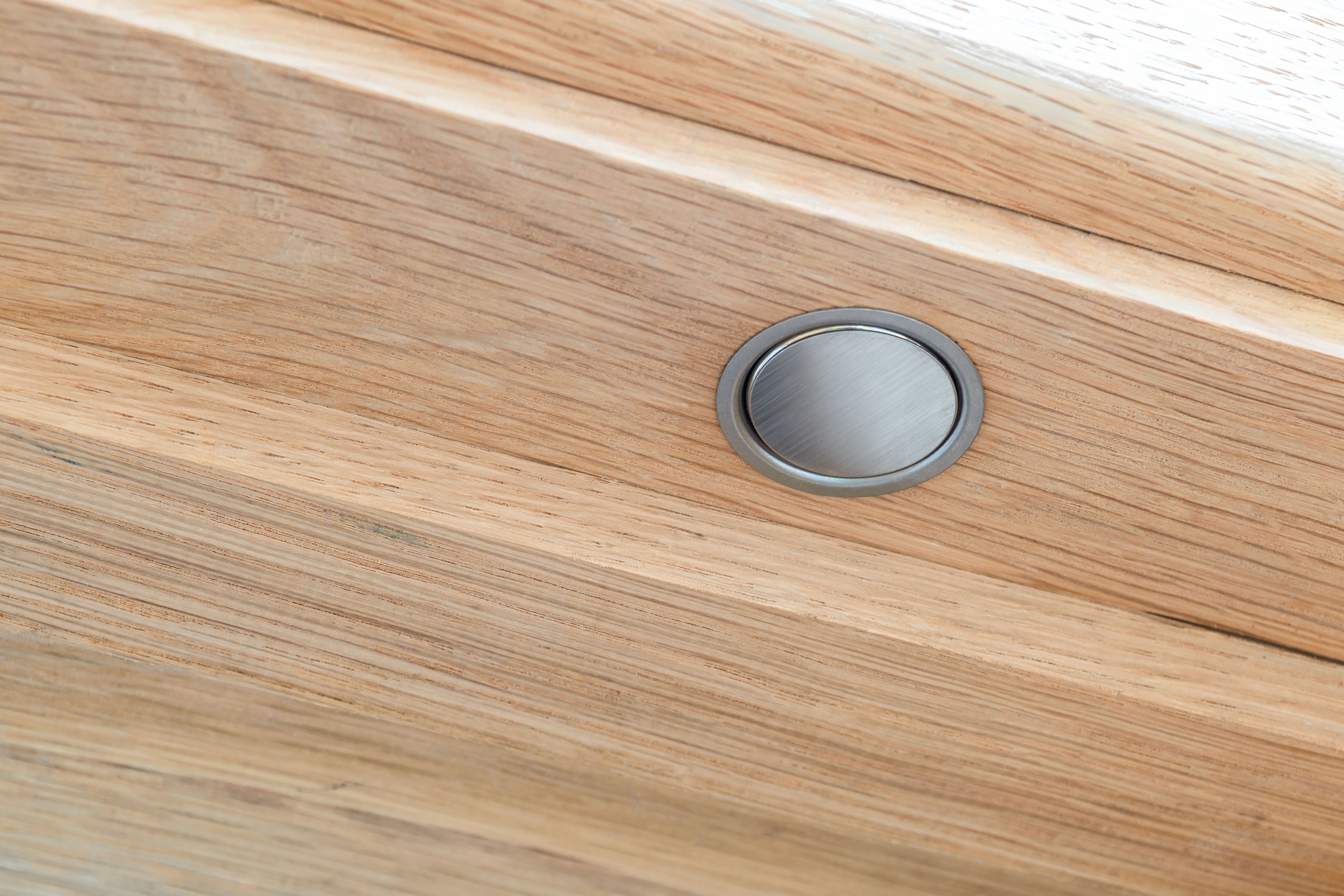

In it, you get the necessary strong countersunk earth magnets. The magnets fit into two round cups which provide a nice neat frame around the magnet when installed. The kit also comes with a set of round shims which you can use to incrementally adjust the distance between the magnets so you can tune the strength of the pull between the two. Just add shims until you get it just right. To finish it off, the kit comes with two discs that cover the magnets, hiding the countersink and the screws for a clean look that you could even use on the latch end of the door without it getting ugly.

OPTIONS:

•  (avoid the slam! sound)
•  bit for the perfect fit (select the 24mm)

WHERE TO USE PRECISION MAGNETIC CATCHES:

These Precision catches can be used anywhere a roller or ball catch would normally be fitted. Unlike a roller or ball catch, there is no noise when opening and shutting the door. Plus, unlike the ball catch you often see in these situations, the magnets don't lose their power over time. There's no double tapping to get the door closed. The perfect solution for keeping problem doors shut, and, sleeping spouses sleeping. That's what one architect told us about why he originally started using magnetic catches. A client who liked to go running in the early morning and dreaded the loud click-clunk of the ubiquitous ball catch would wake up wife, no matter how gently he closed their closets. It's probably reaching to say Magnetic Catches saved his marriage, but at least his wife was able to sleep in.  Finally, a door ball catch alternative that works!

Warning: as with all strong neodymium magnets, you need to be careful when handling them. Keep them well apart or spend time pulling them away from each other.

Downloads:

Installation Guide:

How to replace existing ball catch hardware?

The easiest way to replace an existing or failed ball catch hardware is to install the Precision PLS24 next to the existing ball catch hardware:

1. Leave the existing strike on the door jam.  Usually, these are morticed into the jam and removing them will leave an unsightly gap.
2. Remove the ball catch from the door.  You won't be able to see the existing hole.  Alternatively, you can crank down the ball into the door.
3. Install the PLS24 slightly to the left of the existing ball catch.  Note that when you install the new strike into the door jam, the screw supplied with the PLS24 may not be long enough to make it through to the solid header (behind the jam finish molding).  You'll need to make solid contact with the header stud so the string magnet won't pull the strike out of the jam.

 A fantastic door ball catch alternative!
